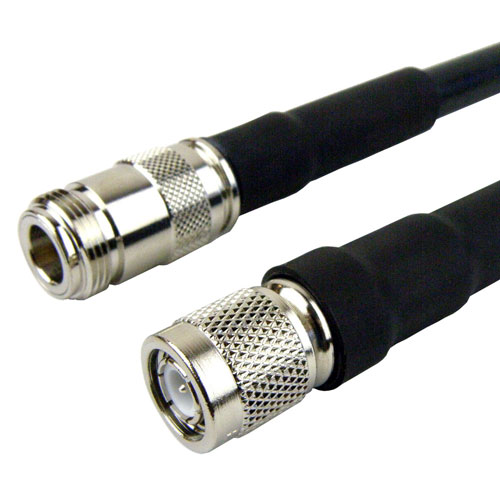

TNC Male to N Female Cable LMR-400 Coax in 24 Inch with Times Microwave Connectors and RoHS

TNC Male to N Female Cable LMR-400 Coax in 24 Inch with Times Microwave Connectors and RoHS

Name: TNC Male to N Female Cable LMR-400 Coax in 24 Inch with Times Microwave Connectors and RoHS
Brand: Fairview Microwave, Inc.
SKU: FMC0306400LF-24
Price: 84.99 USD
Availability: OutOfStock

RF cable assembly part number FMC0306400LF-24 from Fairview Microwave is just one of a huge selection of coaxial cables for radio, antenna and interconnect with RF components. Fairview Microwave RF ...

RF cable assembly part number FMC0306400LF-24 from Fairview Microwave is just one of a huge selection of coaxial cables for radio, antenna and interconnect with RF components. Fairview Microwave RF coaxial cable assembly products are designed for typical use, production, laboratory test and measurement, defense / military, aerial antenna towers, etc. The 50 Ohm FMC0306400LF-24 cable assembly like our other coaxial cable assemblies, is specifically ready for quicker shipment than most in the industry can provide. This Fairview Microwave RF coaxial assembly is manufactured with a TNC cable connection on one end and a type N cable connection on the other end. Our TNC cable assembly has a male plug on end one and female jack on end two. TNC cable FMC0306400LF-24 is built in a male to female coaxial assembly design and will ship quickly after the purchase. This BK RF cable assembly has a PE jacket with 0.405 inches diameter. This RF cable assembly operates at a maximum frequency of 2.5 GHz. Our flexible cable assemblies have a PE jacket with 0.405 inches of jacket diameter. Fairview Microwave TNC male to N type female cable assembly FMC0306400LF-24 is built with LMR-400 coax and it is a flexible coax design. Our cable assembly is manufactured with TNC to N cable connectors and has a 50 Ohm impedance. Both connectors have a crimp/non-solder contact attachment method and a brass body with nickel plating. This RF cable assembly with 0.6221 inches diameter has copper clad aluminum as cable inner conducting material and PE (F) dielectric type. Additional dimensions, specifications and CAD drawings for this FMC0306400LF-24 RF cable are available on our downloadable PDF datasheet. TNC male to type N female coaxial cable assembly is just one of more than a million RF parts we have available. Fairview Microwave is where to buy a high quality TNC to N type cable assembly for quick shipment worldwide. We also have a wide selection of other low to high frequency coaxial cables that will ship quickly from our United States warehouse. Because Fairview is one of a few RF, microwave and millimeter wave cable assembly suppliers with rapid shipping, many variations of TNC cable assemblies can also be built and shipped quickly as well. For further information on similar products, our expert technical support and trained sales team can get you the ideal TNC RF cable assembly as per your requirements.* LMR™ is a trademark of Times Microwave Systems.

Expand

SKU FMC0306400LF-24 FMC0306400LF -0

Product no longer available

This product has been discontinued and has run out of stock. We apologize for the inconvenience.

Replacement Part: FMCA1750LF-24

Length

Or custom length

Unit

Minimum 6 inches

Lengths are rounded up to the nearest quarter inch or centimeter respectively.

Key specifications

Connector Series 1

TNC

Connector Gender 1

Male

Connector Polarity 1

Standard

Connector Angle 1

Straight

Connector Mount Method 1

None

Connector Impedance 1

50

Connector Series 2

N

Connector Gender 2

Female

Connector Polarity 2

Standard

Connector Angle 2

Straight

Connector Mount Method 2

None

Connector Impedance 2

50

RF Cable Part Number

LMR-400

RF Cable Type

LMR-400

RF Cable Impedance

50

Length

24 inches

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
