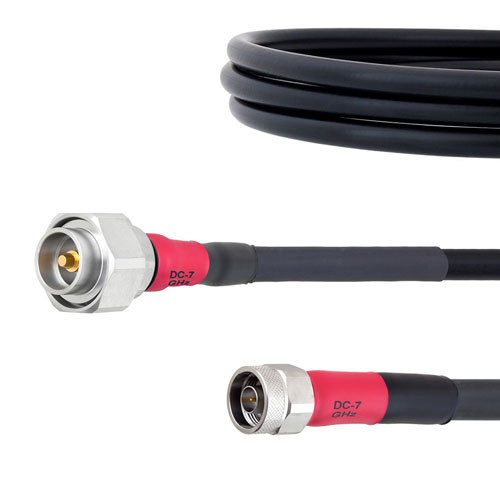

Rugged Portable Phase Stable RF Analyzer Cable N Male to 7/16 DIN Male Cable FM-FT430 Coax

Rugged Portable Phase Stable RF Analyzer Cable N Male to 7/16 DIN Male Cable FM-FT430 Coax

RF cable assembly part number FMCA1400 rugged portable phase stable RF analyzer cable N male to 7/16 DIN male cable FM-FT430 coax and RoHS from Fairview Microwave is one of a huge selection of coaxial...

RF cable assembly part number FMCA1400 rugged portable phase stable RF analyzer cable N male to 7/16 DIN male cable FM-FT430 coax and RoHS from Fairview Microwave is one of a huge selection of coaxial cables for radio, antenna and interconnect with RF components. Fairview Microwave RF coaxial cable assembly products are designed for typical use, production, laboratory test and measurement, defense / military, aerial antenna towers, etc. Rugged portable phase stable RF analyzer cable N male to 7/16 DIN male cable FM-FT430 coax and RoHS, like our other coaxial cable assemblies, is specifically ready for quicker shipment than most in the industry can provide.This Fairview Microwave RF coaxial assembly is manufactured with type N cable connection on one end and a 7/16 DIN cable connection on the other end. Our N type cable assembly has a male gender on end one and male on end two. Type N cable FMCA1400 is built in a male to male coaxial assembly design and will ship quickly after the purchase.Fairview type N male to 7/16 DIN male cable assembly FMCA1400 is built with FM-FT430 coax and it is a flexible design. Our type N cable assembly is manufactured with 50 Ohm type N to 50 Ohm 7/16 DIN cable connectors and has a 50 Ohm impedance for the cable. RF specs for this N type male to 7/16 DIN male cable can be found on its specifications datasheet PDF above. Keep in mind that FMCA1400 can also be used as a 7/16 DIN male to N type male cable because the assembly operates in both directions.Type N male to 7/16 DIN male coaxial cable assembly is just one of more than a million RF parts we have available. Fairview Microwave is where to buy a high quality type N to 7/16 DIN cable assembly for quick shipment worldwide. We also have a wide selection of other low to high frequency coaxial cables that will ship quickly from our United States warehouse. Because Fairview is one of a few RF, microwave and millimeter wave cable assembly suppliers with rapid shipping, many variations of N type cable assemblies can also be built and shipped quickly as well. Custom cable assemblies for radio, antenna, RF component inter connection and more for production, test and measurement labs, military / defense, aerospace, telecom and other RF applications for cables can be easily built.

Expand

SKU FMCA1400 FMCA1400 -0

Product no longer available

This product has been discontinued and has run out of stock. We apologize for the inconvenience.

Please contact our customer service team for assistance in identifying the appropriate replacment part for your application.

Length

Key specifications

Datasheet

View All

Connector Series 1

N

Connector Gender 1

Male

Connector Polarity 1

Standard

Connector Angle 1

Straight

Connector Mount Method 1

None

Connector Impedance 1

50

Connector Series 2

7/16 DIN

Connector Gender 2

Male

Connector Polarity 2

Standard

Connector Angle 2

Straight

Connector Mount Method 2

None

Connector Impedance 2

50

RF Cable Part Number

FM-FT430

RF Cable Type

FM-FT430

RF Cable Impedance

50

Length

Select length above.

Product compliance

RoHS status

No Substance(s) Present Above Threshold

REACH status

SVHC (01/2025) No Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99
