Plenum Low PIM N Female Bulkhead to NEX10 Male Cable SPP-250-LLPL Coax Using Times Microwave Parts

Plenum Low PIM N Female Bulkhead to NEX10 Male Cable SPP-250-LLPL Coax Using Times Microwave Parts

RF cable assembly part number FMCA1925 plenum low PIM N female bulkhead to NEX10 male cable SPP-250-LLPL coax using Times Microwave parts and RoHS from Fairview Microwave is one of a huge selection of...

RF cable assembly part number FMCA1925 plenum low PIM N female bulkhead to NEX10 male cable SPP-250-LLPL coax using Times Microwave parts and RoHS from Fairview Microwave is one of a huge selection of coaxial cables for radio, antenna and interconnect with RF components. Fairview Microwave RF coaxial cable assembly products are designed for typical use, production, laboratory test and measurement, defense / military, aerial antenna towers, etc. Plenum low PIM N female bulkhead to NEX10 male cable SPP-250-LLPL coax using Times Microwave parts and RoHS, like our other coaxial cable assemblies, is specifically ready for quicker shipment than most in the industry can provide.This Fairview Microwave RF coaxial assembly is manufactured with N type cable connection on one end and a NEX10 cable connection on the other end. Our type N cable assembly has a female gender on end one and male on end two. Type N cable FMCA1925 is built in a female to male coaxial assembly design and will ship quickly after the purchase.Fairview N type female to NEX10 male cable assembly FMCA1925 is built with SPP-250-LLPL coax and it is a corrugated design. Our type N cable assembly is manufactured with 50 Ohm type N to 50 Ohm NEX10 cable connectors and has a 50 Ohm impedance for the cable. RF specs for this type N female bulkhead to NEX10 male cable can be found on its specifications datasheet PDF above. Keep in mind that FMCA1925 can also be used as a NEX10 male to type N female cable because the assembly operates in both directions.Type N female bulkhead to NEX10 male coaxial cable assembly is just one of more than a million RF parts we have available. Fairview Microwave is where to buy a high quality N type to NEX10 cable assembly for quick shipment worldwide. We also have a wide selection of other low to high frequency coaxial cables that will ship quickly from our United States warehouse. Because Fairview is one of a few RF, microwave and millimeter wave cable assembly suppliers with rapid shipping, many variations of type N cable assemblies can also be built and shipped quickly as well. Custom cable assemblies for radio, antenna, RF component inter connection and more for production, test and measurement labs, military / defense, aerospace, telecom and other RF applications for cables can be easily built.

Expand

SKU FMCA1925 FMCA1925 -0

Length

Or custom length

Unit

Minimum 6 inches

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Lengths are rounded up to the nearest quarter inch or centimeter respectively.

Key specifications

Datasheet

View All

Connector Series 1

N

Connector Gender 1

Female

Connector Polarity 1

Standard

Connector Angle 1

Straight

Connector Mount Method 1

Bulkhead

Connector Impedance 1

50

Connector Series 2

NEX10

Connector Gender 2

Male

Connector Polarity 2

Standard

Connector Angle 2

Straight

Connector Mount Method 2

None

Connector Impedance 2

50

RF Cable Part Number

SPP-250-LLPL

RF Cable Type

SPP-250-LLPL

RF Cable Impedance

50

Length

Select length above.

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

Not Available

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

low-pim-n-female-nex10-male-cable-spp250llpl-coax-fmca1925-50cm Fairview Microwave FMCA1925-50CM

53 available

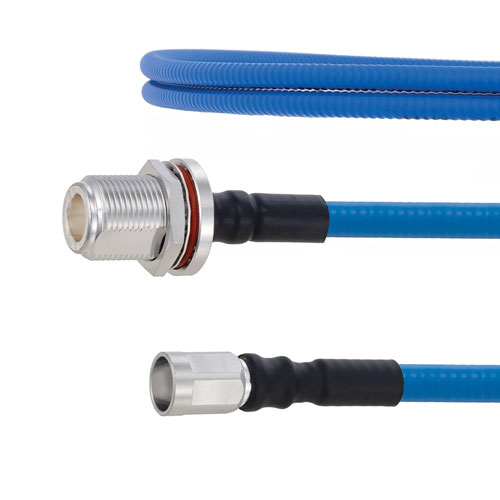

Plenum Low PIM N Female Bulkhead to NEX10 Male Cable SPP-250-LLPL Coax in 50 cm Using Times Microwave Parts

Compare

SKU FMCA1925-50CM

Starting price $103.99

Estimated shipment Today

low-pim-n-female-nex10-male-cable-spp250llpl-coax-fmca1924 Fairview Microwave FMCA1924

53 available

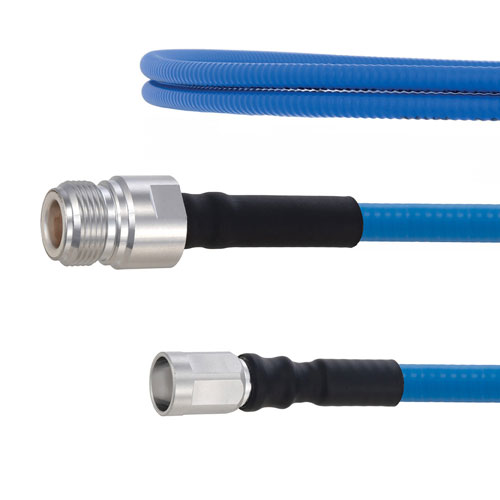

Plenum Low PIM N Female to NEX10 Male Cable SPP-250-LLPL Coax Using Times Microwave Parts

Compare

SKU FMCA1924

Starting price $84.99

Estimated shipment Today

low-pim-n-male-nex10-male-cable-spp250llpl-coax-fmca1926 Fairview Microwave FMCA1926

53 available

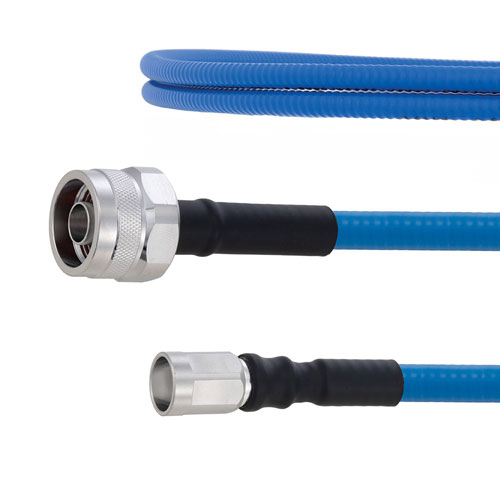

Plenum Low PIM N Male to NEX10 Male Cable SPP-250-LLPL Coax Using Times Microwave Parts

Compare

SKU FMCA1926

Starting price $77.99

Estimated shipment Today

low-pim-ra-n-male-nex10-male-cable-spp250llpl-coax-fmca1927 Fairview Microwave FMCA1927

53 available

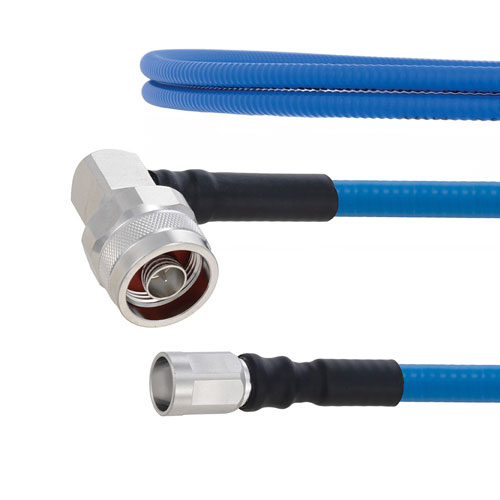

Plenum Low PIM RA N Male to NEX10 Male Cable SPP-250-LLPL Coax Using Times Microwave Parts
