Low Loss N Male to Straight Cut Lead Cable LMR-600-DB Coax With Times Microwave Components

Low Loss N Male to Straight Cut Lead Cable LMR-600-DB Coax With Times Microwave Components

RF cable assembly part number FMCA3254 low loss N male to straight cut lead cable LMR-600-DB coax with Times Microwave components from Fairview Microwave is just one of a huge selection of coaxial ca...

RF cable assembly part number FMCA3254 low loss N male to straight cut lead cable LMR-600-DB coax with Times Microwave components from Fairview Microwave is just one of a huge selection of coaxial cables for radio, antenna and interconnect with RF components. Fairview Microwave RF coaxial cable assembly products are designed for typical use, production, laboratory test and measurement, defense / military, aerial antenna towers, etc. The 50 Ohm like our other coaxial cable assemblies, is specifically ready for quicker shipment than most in the industry can provide. This Fairview Microwave RF coaxial assembly is manufactured with a N type cable connection on one end and a straight cut lead cable connection on the other end. Our type N cable assembly has a male plug on end one and sexless on end two. type N cable FMCA3254 is built in a male to sexless coaxial assembly design and will ship quickly after the purchase. Fairview type N male to straight cut lead sexless cable assembly FMCA3254 is built with LMR-600-DB coax and it is a flexible coax design. Our type N cable assembly is manufactured with 50 Ohm type N to straight cut lead cable connectors and has a 50 Ohm impedance. RF specs for this N type male to straight cut lead sexless cable can be found on its specifications datasheet PDF above. Keep in mind that FMCA3254 can also be used in the other direction as a straight cut lead sexless to N type male cable because the assembly operates in both directions. Type N male to straight cut lead sexless coaxial cable assembly is just one of more than a million RF parts we have available. Fairview Microwave is where to buy a high quality type N to straight cut lead cable assembly for quick shipment worldwide. We also have a wide selection of other low to high frequency coaxial cables that will ship quickly from our United States warehouse. Because Fairview is one of a few RF, microwave and millimeter wave cable assembly suppliers with rapid shipping, many variations of type N cable assemblies can also be built and shipped quickly as well. Custom cable assemblies for radio, antenna, RF component inter connection and more for production, test and measurement labs, military / defense, aerospace, telecom and other RF applications for cables can be easily built.* LMR™ is a trademark of Times Microwave Systems.

Expand

SKU FMCA3254 FMCA3254 -0

Length

Or custom length

Unit

Minimum 6 inches

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Lengths are rounded up to the nearest quarter inch or centimeter respectively.

Key specifications

Datasheet

View All

Connector Series 1

N

Connector Gender 1

Male

Connector Polarity 1

Standard

Connector Angle 1

Straight

Connector Mount Method 1

None

Connector Impedance 1

50

Connector Series 2

Straight Cut Lead

Connector Gender 2

Sexless

Connector Polarity 2

Standard

Connector Angle 2

Straight

Connector Mount Method 2

None

Connector Impedance 2

0

RF Cable Part Number

LMR-600-DB

RF Cable Type

LMR-600-DB

RF Cable Impedance

50

Length

Select length above.

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

Not Available

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

2 available

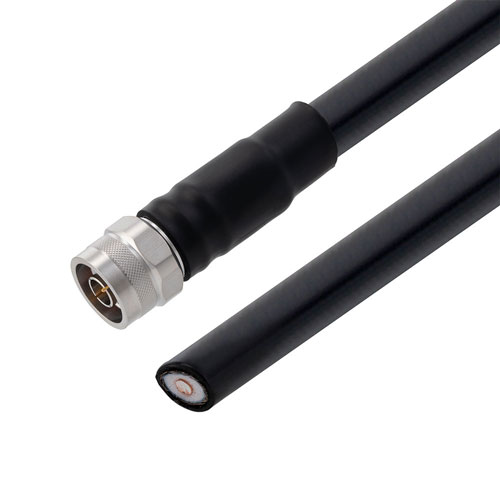

Low Loss N Male to Straight Cut Lead Cable LMR-600-DB Coax in 12 Inch With Times Microwave Components

Compare

SKU FMCA3254-12

Starting price $49.39

Estimated shipment Today

74 available

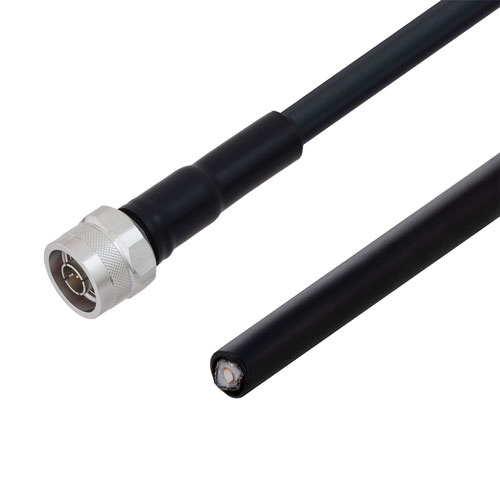

Low Loss N Male to Straight Cut Lead Cable LMR-400 Coax Using Times Microwave Components

Compare

SKU FMCA2291

Starting price $53.99

Estimated shipment Today

n-male-sexless-cable-rg214-coax-fmc0100214 Fairview Microwave FMC0100214

177 available

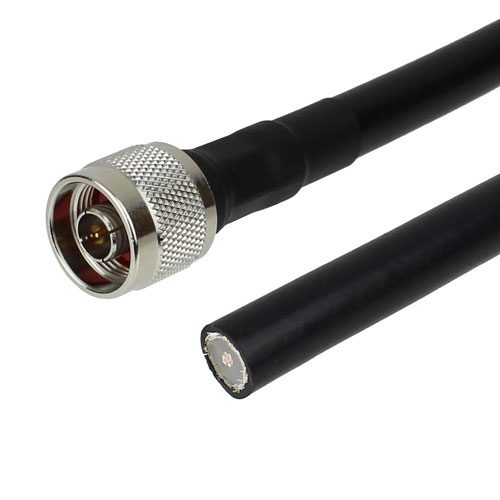

N Male to Straight Cut Lead Cable RG-214 Coax
