Circulator SMA Female With 17 dB Isolation From 1.7 GHz to 2.4 GHz Rated to 10 Watts

Circulator SMA Female With 17 dB Isolation From 1.7 GHz to 2.4 GHz Rated to 10 Watts

RF circulator SFC1724S from Fairview is just part of a large number of radio frequency products specifically stocked to be highly available for rapid shipment. Fairview Microwave circulator is manufac...

RF circulator SFC1724S from Fairview is just part of a large number of radio frequency products specifically stocked to be highly available for rapid shipment. Fairview Microwave circulator is manufactured with SMA connectors that are female. This 3 port SMA circulator design is rated for a minimum frequency of 1.7 GHz and a maximum frequency of 2.4 GHz.Fairview Microwave SMA RF coaxial circulator part number SFC1724S has a minimum isolation of 17 dB and a maximum input power of 10 Watts. Additional RF specs for this Fairview Microwave component can be found on the circulator datasheet specifications PDF above.Our coaxial circulator is just part of more than one million RF, microwave and millimeter wave components we carry in-stock. This circulator with SMA connectors is ready to buy and be shipped worldwide. Fairview also stocks a wide selection of other radio frequency coaxial circulators that ship same-day from our warehouse along with rest of our RF, microwave and millimeter wave components.

Expand

SKU SFC1724S SFC1724S -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector In Series

SMA

Connector In Gender

Female

Connector Out Series

SMA

Minimum Frequency

1.7 GHz

Maximum Frequency

2.4 GHz

Impedance

50 Ohm

Maximum Insertion Loss

0.75 dB

Maximum Input Power (CW)

10 Watts

Minimum Isolation

17 dB

Product compliance

RoHS status

No Substance(s) Present Above Threshold

REACH status

SVHC (01/2025) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

sma-circulator-17-db-isolation-1-2-ghz-sfc1020 Fairview Microwave SFC1020

24 available

SMA Circulator With 17 dB Isolation From 1 GHz to 2 GHz And 10 Watts

Compare

SKU SFC1020

Starting price $555.00

Estimated shipment Next Business Day

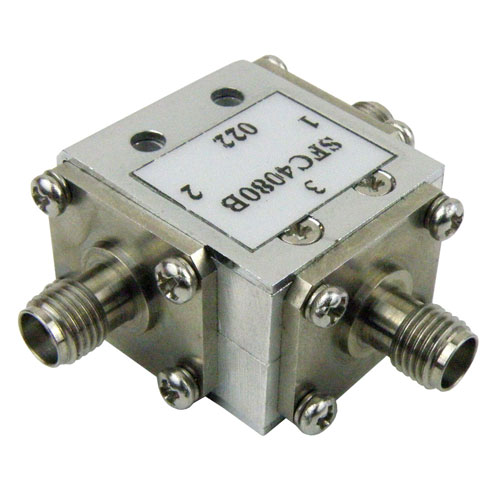

sma-circulator-17-db-isolation-4-8-ghz-sfc4080b Fairview Microwave SFC4080B
