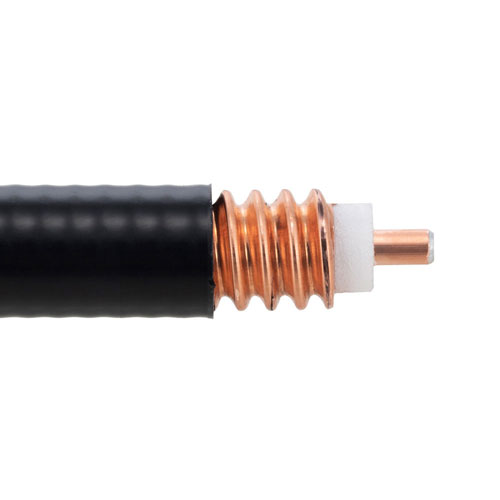

SPO-500 Low Loss Corrugated Coax Cable Black PE Jacket Superflexible Outdoor Rated

SPO-500 Low Loss Corrugated Coax Cable Black PE Jacket Superflexible Outdoor Rated

SPO-500 coax cable from Fairview is only one of a large number of radio frequency twinaxial and coaxial cable types specifically stocked to be ready for quick shipment. Fairview Microwave SPO-500-BULK...

SPO-500 coax cable from Fairview is only one of a large number of radio frequency twinaxial and coaxial cable types specifically stocked to be ready for quick shipment. Fairview Microwave SPO-500-BULK coax cable is manufactured in a corrugated design and has a 50 Ohm impedance.This low loss corrugated 50 Ohm coax cable SPO-500 is constructed with a 0.53 inch diameter and PE jacket.SPO-500 SPO-500-BULK corrugated 50 Ohm coax cable with PE jacket is rated for a 6 GHz maximum operating frequency. This 50 Ohm 0.53 inch diameter and low loss corrugated coax cable is built with a shield count of 1.Fairview Microwave SPO-500 coax is constructed with Foam PE dielectric and a maximum operating temperature of 85 degrees C. SPO-500 coax cable specs for this wire properties can be found on its RF coax cable SPO-500 datasheet PDF specifications above.SPO-500 cable is part of more than one million RF, microwave and millimeter wave parts in stock at Fairview. This low loss SPO-500 coax cable is ready to buy and can be shipped worldwide. Fairview also maintains a wide selection of other radio frequency twinaxial and coaxial cable types that ship same-day from our warehouse as with the rest of our other RF/microwave and millimeter wave components.

Expand

SKU SPO-500-BULK SPO-500-BULK -0

QTY available

Price

Quantity (FEET) Price

All prices are in US dollars and do not include duties.
Quantity selected indicates total length of bulk cable (i.e., inputting 10 indicates a 10 foot section), contact us for alternate requirements.
Contact us for different unit of measure (inches, meters, etc.) requirements.

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Generic Name

SPO-500

Flex Type

Corrugated

Impedance

50 Ohm

Dielectric Type

Foam PE

Velocity of Propagation

83 %

Jacket Diameter

0.53 in

Jacket Material

PE

No. of Shields

1

Passive Intermodulation

-158 dBc

Frequency, Max

6 GHz

Max Operating Temperature

85 deg C

Center Conductor Type

Solid

Inner Conductor, Number of Strands

1

Minimum Bend Radius, One Time

2.25 in

Coax Type

Coax

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99
