SPP-250-LLPL Low Loss Corrugated Coax Cable Blue FEP Jacket Superflexible

SPP-250-LLPL Low Loss Corrugated Coax Cable Blue FEP Jacket Superflexible

SPP-250-LLPL coax cable from Fairview is only one of a large number of radio frequency twinaxial and coaxial cable types specifically stocked to be ready for quick shipment. Fairview Microwave SPP-250...

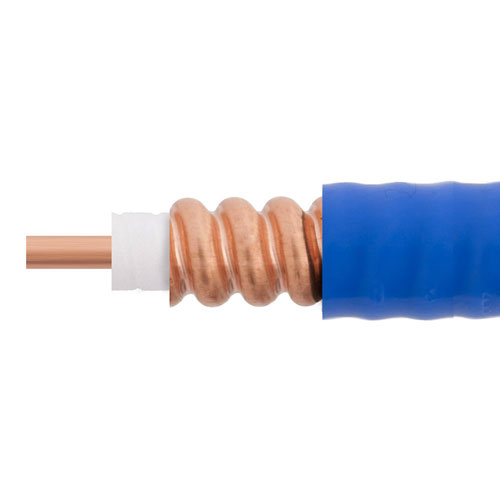

SPP-250-LLPL coax cable from Fairview is only one of a large number of radio frequency twinaxial and coaxial cable types specifically stocked to be ready for quick shipment. Fairview Microwave SPP-250-LLPL-BULK coax cable is manufactured in a corrugated design and has a 50 Ohm impedance.This low loss corrugated 50 Ohm coax cable SPP-250-LLPL is constructed with a 0.28 inch diameter and FEP jacket.SPP-250-LLPL SPP-250-LLPL-BULK corrugated 50 Ohm coax cable with FEP jacket is rated for a 6 GHz maximum operating frequency. This 50 Ohm 0.28 inch diameter and low loss corrugated coax cable is built with a shield count of 1 and RF shielding of 100 dB.Fairview Microwave SPP-250-LLPL coax is constructed with PTFE dielectric and a maximum operating temperature of 200 degrees C. SPP-250-LLPL coax cable specs for this wire properties can be found on its RF coax cable SPP-250-LLPL datasheet PDF specifications above.SPP-250-LLPL cable is part of more than one million RF, microwave and millimeter wave parts in stock at Fairview. This low loss SPP-250-LLPL coax cable is ready to buy and can be shipped worldwide. Fairview also maintains a wide selection of other radio frequency twinaxial and coaxial cable types that ship same-day from our warehouse as with the rest of our other RF/microwave and millimeter wave components.

Expand

SKU SPP-250-LLPL-BULK SPP-250-LLPL-BULK -0

QTY available

Price

Quantity (FEET) Price

All prices are in US dollars and do not include duties.
Quantity selected indicates total length of bulk cable (i.e., inputting 10 indicates a 10 foot section), contact us for alternate requirements.
Contact us for different unit of measure (inches, meters, etc.) requirements.

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Generic Name

SPP-250-LLPL

Flex Type

Corrugated

Impedance

50 Ohm

Dielectric Type

PTFE

Velocity of Propagation

76 %

Jacket Diameter

0.28 in

Jacket Material

FEP

No. of Shields

1

Attenuation at 1 Ghz.

5.5 dB

Power, Max at 1 Ghz.

650 Watts

Passive Intermodulation

-160 dBc

RF Shielding

100 dB

Frequency, Max

6 GHz

Max Operating Temperature

200 deg C

Center Conductor Type

Solid

Inner Conductor, Number of Strands

1

Minimum Bend Radius, One Time

1.25 in

Coax Type

Coax

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
