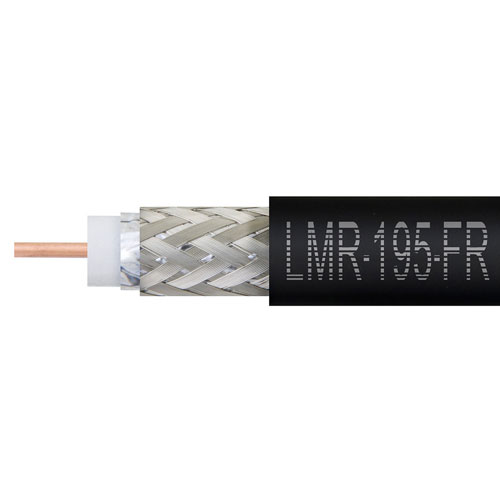

Times Microwave LMR-195 Low Loss Flexible Coax Cable Black PE Jacket

Times Microwave LMR-195 Low Loss Flexible Coax Cable Black PE Jacket

LMR-195 coax cable from Fairview is only one of a large number of radio frequency twinaxial and coaxial cable types specifically stocked to be ready for quick shipment. Fairview Microwave LMR-195 coax...

LMR-195 coax cable from Fairview is only one of a large number of radio frequency twinaxial and coaxial cable types specifically stocked to be ready for quick shipment. Fairview Microwave LMR-195 coax cable is manufactured in a flexible design and has a 50 Ohm impedance.This low loss flexible 50 Ohm coax cable LMR-195 is constructed with a 0.195 inch diameter and PE jacket.LMR-195 flexible 50 Ohm coax cable with PE jacket is rated for a 5.8 GHz maximum operating frequency. This 50 Ohm 0.195 inch diameter and low loss flexible coax cable is built with a shield count of 2 and RF shielding of 90 dB.Fairview Microwave LMR-195 coax is constructed with PE (F) dielectric and a maximum operating temperature of 85 degrees C. Times Microwave LMR-195 coax cable specs for this wire properties can be found on its RF coax cable LMR-195 datasheet PDF specifications above.LMR-195 cable is part of more than one million RF, microwave and millimeter wave parts in stock at Fairview. This Times Microwave low loss LMR-195 coax cable is ready to buy and can be shipped worldwide. Fairview also maintains a wide selection of other radio frequency twinaxial and coaxial cable types that ship same-day from our warehouse as with the rest of our other RF/microwave and millimeter wave components.* LMR™ is a trademark of Times Microwave Systems.

Expand

SKU LMR-195 LMR-195 -0

Product no longer available

This product has been discontinued and has run out of stock. We apologize for the inconvenience.

Replacement Part: LMR-195-BULK

Key specifications

Datasheet

View All

Generic Name

LMR-195

Flex Type

Flexible

Impedance

50 Ohm

Dielectric Type

PE (F)

Velocity of Propagation

80 %

Jacket Diameter

0.195 in

Jacket Material

PE

No. of Shields

2

Attenuation at 1 Ghz.

11.8 dB

RF Shielding

90 dB

Frequency, Max

8 GHz

Max Operating Temperature

85 deg C

Center Conductor Type

Solid

Inner Conductor, Number of Strands

1

Minimum Bend Radius, One Time

0.5 in

Minimum Bend Radius, Repeated

2 in

Coax Type

Coax

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

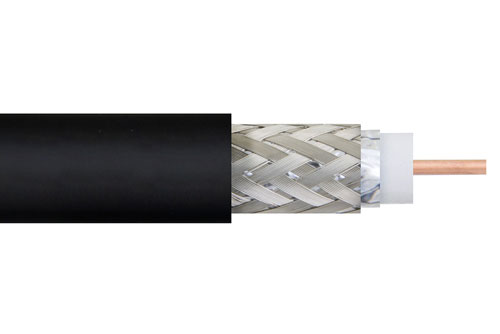

lmr195-low-loss-flexible-coax-cable-pe-jacket-lmr-195-bulk Fairview Microwave LMR-195-BULK
