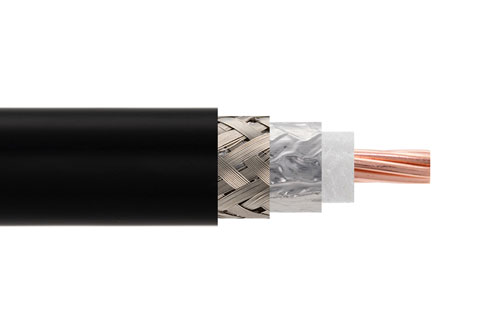

Times Microwave LMR-500-UF Low Loss Flexible Coax Cable Black TPE Jacket Ultra Flex

Times Microwave LMR-500-UF Low Loss Flexible Coax Cable Black TPE Jacket Ultra Flex

LMR-500-UF coax cable from Fairview is only one of a large number of radio frequency twinaxial and coaxial cable types specifically stocked to be ready for quick shipment. Fairview Microwave LMR-500-U...

LMR-500-UF coax cable from Fairview is only one of a large number of radio frequency twinaxial and coaxial cable types specifically stocked to be ready for quick shipment. Fairview Microwave LMR-500-UF-BULK coax cable is manufactured in a flexible design and has a 50 Ohm impedance.This low loss flexible 50 Ohm coax cable LMR-500-UF is constructed with a 0.5 inch diameter and TPE jacket.LMR-500-UF LMR-500-UF-BULK flexible 50 Ohm coax cable with TPE jacket is rated for a 6 GHz maximum operating frequency. This 50 Ohm 0.5 inch diameter and low loss flexible coax cable is built with a shield count of 2 and RF shielding of 90 dB.Fairview Microwave LMR-500-UF coax is constructed with Foam PE dielectric and a maximum operating temperature of 85 degrees C. Times Microwave LMR-500-UF coax cable specs for this wire properties can be found on its RF coax cable LMR-500-UF datasheet PDF specifications above.LMR-500-UF cable is part of more than one million RF, microwave and millimeter wave parts in stock at Fairview. This Times Microwave low loss LMR-500-UF coax cable is ready to buy and can be shipped worldwide. Fairview also maintains a wide selection of other radio frequency twinaxial and coaxial cable types that ship same-day from our warehouse as with the rest of our other RF/microwave and millimeter wave components.* LMR™ is a trademark of Times Microwave Systems.

Expand

SKU LMR-500-UF-BULK LMR-500-UF-BULK -0

QTY available

Price

Quantity (FEET) Price

All prices are in US dollars and do not include duties.
Quantity selected indicates total length of bulk cable (i.e., inputting 10 indicates a 10 foot section), contact us for alternate requirements.
Contact us for different unit of measure (inches, meters, etc.) requirements.

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Generic Name

LMR-500-UF

Flex Type

Flexible

Impedance

50 Ohm

Dielectric Type

Foam PE

Velocity of Propagation

85 %

Jacket Diameter

0.5 in

Jacket Material

TPE

No. of Shields

2

Attenuation at 1 Ghz.

4 dB

RF Shielding

90 dB

Frequency, Max

8 GHz

Max Operating Temperature

85 deg C

Center Conductor Type

Stranded

Inner Conductor, Number of Strands

1

Minimum Bend Radius, One Time

1.25 in

Minimum Bend Radius, Repeated

5 in

Coax Type

Coax

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99
