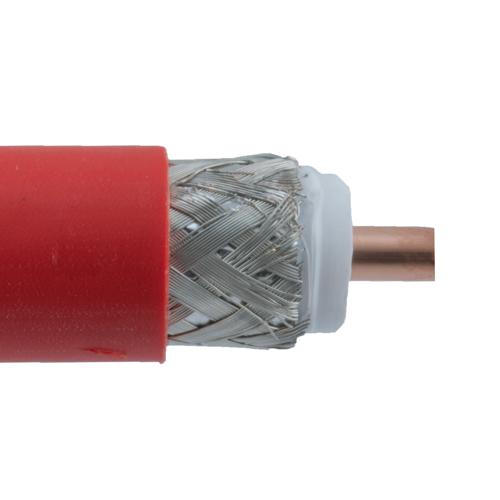

Times Microwave LMR-600-LLPX Low Loss Flexible Coax Cable Fluoropolymer Jacket

Times Microwave LMR-600-LLPX Low Loss Flexible Coax Cable Fluoropolymer Jacket

LMR-600-LLPX low-loss coaxial cable from Fairview Microwave is only one of many radio frequency coaxial cable types specifically stocked to be ready for same business day shipment. Fairview Microwave’...

LMR-600-LLPX low-loss coaxial cable from Fairview Microwave is only one of many radio frequency coaxial cable types specifically stocked to be ready for same business day shipment. Fairview Microwave’s LMR-600-LLPX-BULK coaxial cable is manufactured in a flexible design and has a 50 Ohm impedance. This flexible 50 Ohm coaxial cable is constructed with a fluoropolymer jacket of 0.565-inch diameter. Fairview Microwave’s LMR-600-LLPX-BULK flexible coaxial cable with a fluoropolymer jacket is rated for a 8 GHz maximum operating frequency. Our low-loss RF coaxial cable has a conductor of copper clad aluminum. Our coaxial RF cable has a typical insertion loss/attenuation of 0.5, 1, 1.2, 1.8, 2.6, 3.4, 3.9, 5.3, 7.1 and 8.8 dB/100ft at frequency of 30 MHz, 150 MHz, 220 MHz, 450 MHz, 900 MHz, 1.5 GHz, 2 GHz, 3.4 GHz, 5.8 GHz and 8 GHz respectively. The LMR-600-LLPX coaxial cable with PTFE dielectric can operate at temperatures ranging from -40 to +125 degrees C. Additional specifications for this LMR-600-LLPX-BULK RF coaxial cable are on our downloadable PDF datasheet above. This low-loss RF cable has a one time minimum bend radius of 1.5 inches and a repeat minimum bend radius of 6 inches. Our flexible 50 Ohm coaxial cable has a peak power rating of 40 watts. LMR-600-LLPX low-loss RF cable is part of more than one million RF, microwave, and millimeter wave parts in stock at Fairview Microwave. This LMR-600-LLPX coaxial cable is ready to buy and can be shipped worldwide. Fairview Microwave also maintains a wide selection of other radio frequency coaxial cable types that ship the same business day from our warehouse in the United States, as with the rest of our other RF/microwave and millimeter wave components.* LMR™ is a trademark of Times Microwave Systems.

Expand

SKU LMR-600-LLPX-BULK LMR-600-LLPX-BULK -0

QTY available

Price

Quantity (FEET) Price

All prices are in US dollars and do not include duties.
Quantity selected indicates total length of bulk cable (i.e., inputting 10 indicates a 10 foot section), contact us for alternate requirements.
Contact us for different unit of measure (inches, meters, etc.) requirements.

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Generic Name

LMR-600-LLPX

Flex Type

Flexible

Impedance

50 Ohm

Dielectric Type

PTFE

Velocity of Propagation

76 %

Jacket Diameter

0.565 in

Jacket Material

Fluoropolymer

RF Shielding

90 dB

Frequency, Max

8 GHz

Max Operating Temperature

125 deg C

Minimum Bend Radius, One Time

1.5 in

Minimum Bend Radius, Repeated

6 in

Coax Type

Coax

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99
