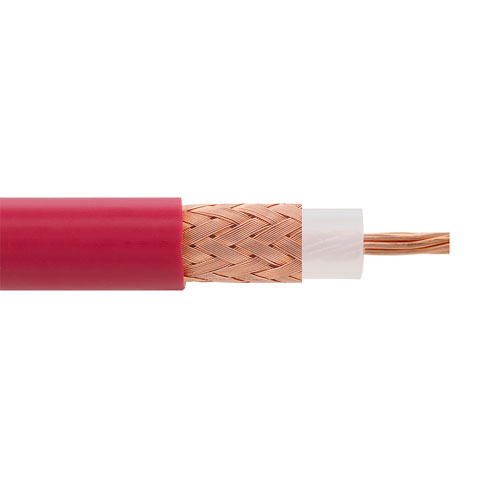

20kV Flexible RG213 High Voltage Coax Cable Single Shielded with Red PUR Jacket

20kV Flexible RG213 High Voltage Coax Cable Single Shielded with Red PUR Jacket

RG213HV coaxial cable from Fairview Microwave is only one of many radio frequency coaxial cable types specifically stocked to be ready for same business day shipment. Fairview Microwave’s RG213HV-BULK...

RG213HV coaxial cable from Fairview Microwave is only one of many radio frequency coaxial cable types specifically stocked to be ready for same business day shipment. Fairview Microwave’s RG213HV-BULK coaxial cable is manufactured in a flexible design and has a 50 Ohm impedance. This flexible 50 Ohm coaxial cable is constructed with a polyurethane jacket of 0.394-inch diameter. Fairview Microwave’s RG213HV-BULK flexible coaxial cable with a polyurethane jacket is rated for a 1 GHz maximum operating frequency. This 50 Ohm flexible coaxial cable is built with a shield count of 1. Our RF coaxial cable has a stranded conductor of copper with bare plating. Our red-colored coaxial RF cable has a typical insertion loss/attenuation of 1.2, 2.3, 4.8 and 9 dB/100ft at frequency of 50 MHz, 100 MHz, 400 MHz and 1 GHz respectively. The RG213HV coaxial cable with PE dielectric can operate at temperatures ranging from -30 to +70 degrees C. Additional specifications for this RG213HV-BULK single shielded RF coaxial cable are on our downloadable PDF datasheet above. This red colored high voltage coaxial cable has a 0.317-inch shield layer of tinned copper braid. This RF cable has a repeat minimum bend radius of 1.969 inch.RG213HV RF cable is part of more than one million RF, microwave, and millimeter wave parts in stock at Fairview Microwave. This RG213HV coaxial cable is ready to buy and can be shipped worldwide. Fairview Microwave also maintains a wide selection of other radio frequency coaxial cable types that ship the same business day from our warehouse in the United States, as with the rest of our other RF/microwave and millimeter wave components.

Expand

SKU RG213HV-BULK RG213HV-BULK -0

QTY available 1,323

Price $9.49

Quantity (FEET) Price

1-24$9.49

25-49$9.02

50-99$8.54

100-249$8.16

250-499$7.78

500+$7.78Please call for quote

All prices are in US dollars and do not include duties.
Quantity selected indicates total length of bulk cable (i.e., inputting 10 indicates a 10 foot section), contact us for alternate requirements.
Contact us for different unit of measure (inches, meters, etc.) requirements.

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Generic Name

RG213HV-BULK

Flex Type

Flexible

Impedance

50 Ohm

Dielectric Type

PE

Jacket Diameter

0.394 in

Jacket Material

Polyurethane

No. of Shields

1

Frequency, Max

1 GHz

Max Operating Temperature

70 deg C

Center Conductor Type

Stranded

Inner Conductor, Number of Strands

7

Minimum Bend Radius, Repeated

1.969 in

Coax Type

Coax

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
