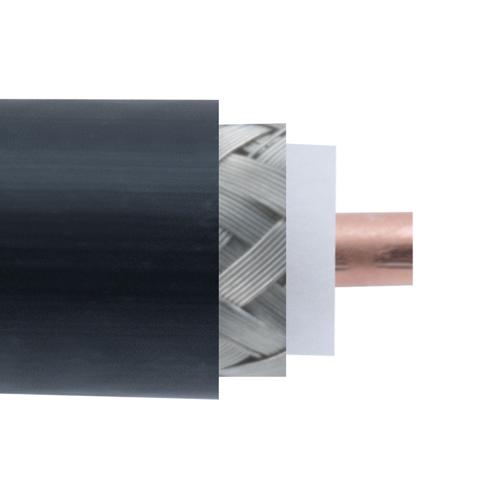

TCOM-195 Low PIM Flexible Coax Cable Black PE Jacket

TCOM-195 Low PIM Flexible Coax Cable Black PE Jacket

TCOM-195 low PIM coaxial cable from Fairview Microwave is only one of many radio frequency coaxial cable types specifically stocked to be ready for same business day shipment. Fairview Microwave’s TCO...

TCOM-195 low PIM coaxial cable from Fairview Microwave is only one of many radio frequency coaxial cable types specifically stocked to be ready for same business day shipment. Fairview Microwave’s TCOM-195-BULK coaxial cable is manufactured in a flexible design and has a 50 Ohm impedance. This flexible 50 Ohm coaxial cable is constructed with a polyethylene jacket of 0.195-inch diameter. Our RF coaxial cable is ideal for wireless base station interconnect, distributed antenna systems (das), outdoor applications, antenna jumpers and small cell. The maximum passive intermodulation of this low PIM cable is -155 dBc. Fairview Microwave’s TCOM-195-BULK flexible coaxial cable with a polyethylene jacket is rated for a 18 GHz maximum operating frequency. This 50 Ohm flexible coaxial cable is built with a shield count of 3. Our low PIM RF coaxial cable has a solid conductor of copper. Our black-colored coaxial RF cable has a typical insertion loss/attenuation of 4.5, 8, 11, 17, 27, 39 and 54 dB/100ft at frequency of 150 MHz, 450 MHz, 900 MHz, 2 GHz, 5 GHz, 10 GHz and 18 GHz respectively. The TCOM-195 coaxial cable with PE (F) dielectric can operate at temperatures ranging from -40 to +85 degrees C. Additional specifications for this TCOM-195-BULK3 RF coaxial cable are on our downloadable PDF datasheet above. Our low PIM coaxial cable has a dielectric withstanding voltage of 1,000 Vdc. This low PIM RF cable has a one time minimum bend radius of 0.5 inches and a repeat minimum bend radius of 2 inches. Our flexible 50 Ohm coaxial cable has a peak power rating of 2,500 watts. TCOM-195 low PIM RF cable is part of more than one million RF, microwave, and millimeter wave parts in stock at Fairview Microwave. This TCOM-195 coaxial cable is ready to buy and can be shipped worldwide. Fairview Microwave also maintains a wide selection of other radio frequency coaxial cable types that ship the same business day from our warehouse in the United States, as with the rest of our other RF/microwave and millimeter wave components.

Expand

SKU TCOM-195-BULK TCOM-195-BULK -0

QTY available

Price

Quantity (FEET) Price

All prices are in US dollars and do not include duties.
Quantity selected indicates total length of bulk cable (i.e., inputting 10 indicates a 10 foot section), contact us for alternate requirements.
Contact us for different unit of measure (inches, meters, etc.) requirements.

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Generic Name

TCOM-195

Flex Type

Flexible

Impedance

50 Ohm

Dielectric Type

PE (F)

Velocity of Propagation

80 %

Jacket Diameter

0.195 in

Jacket Material

PE

No. of Shields

3

Passive Intermodulation

-155 dBc

Frequency, Max

18 GHz

Max Operating Temperature

85 deg C

Center Conductor Type

Solid

Inner Conductor, Number of Strands

1

Minimum Bend Radius, One Time

0.5 in

Minimum Bend Radius, Repeated

2 in

Coax Type

Coax

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
