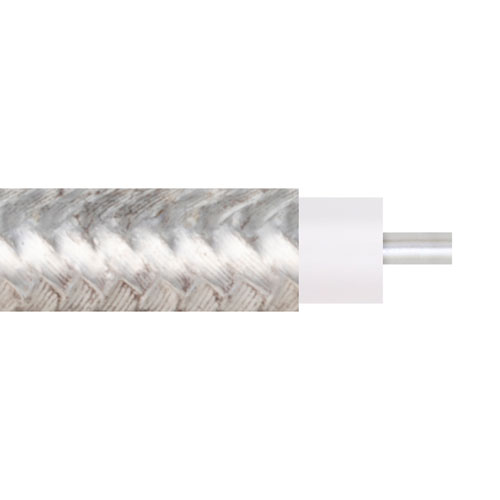

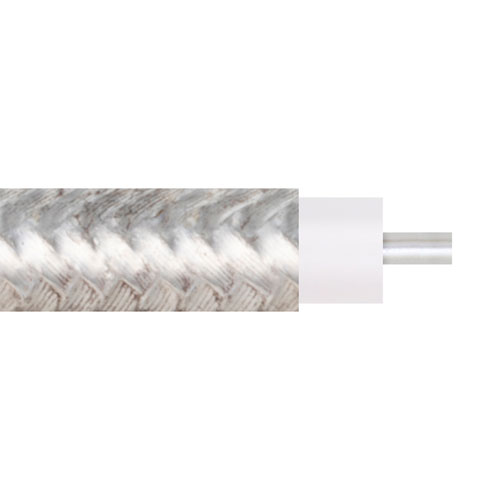

0.141 Formable Non-Magnetic Cable with Silver Plated Copper Conductor

0.141 Formable Non-Magnetic Cable with Silver Plated Copper Conductor

FM-141FL-NM non-magnetic coaxial cable from Fairview Microwave is only one of many radio frequency coaxial cable types specifically stocked to be ready for same business day shipment. Fairview Microwa...

FM-141FL-NM non-magnetic coaxial cable from Fairview Microwave is only one of many radio frequency coaxial cable types specifically stocked to be ready for same business day shipment. Fairview Microwave’s FM-141FL-NM-BULK coaxial cable is manufactured in a formable design and has a 50 Ohm impedance. Our RF coaxial cable is ideal for general purpose test, custom cable assemblies, medicalmilitary and aerospace and quantum computing. Fairview Microwave’s FM-141FL-NM-BULK formable coaxial cable is rated for a 34 GHz maximum operating frequency. This 50 Ohm formable coaxial cable is built with a shield count of 1 and RF shielding of 90 dB. Our non-magnetic RF coaxial cable has a solid conductor of silver plated copper. Our copper-colored coaxial RF cable has a typical insertion loss/attenuation of 11.2, 16.2, 39.2, 59.4, 85.2, 109.2 and 142.9 dB/100ft at frequency of 500 MHz, 1 GHz, 5 GHz, 10 GHz, 18 GHz, 26.5 GHz and 40 GHz respectively. The FM-141FL-NM coaxial cable with PTFE dielectric can operate at temperatures ranging from -55 to +200 degrees C. Additional specifications for this FM-141FL-NM-BULK single shielded RF coaxial cable are on our downloadable PDF datasheet above. Our cable has a maximum operating AC voltage of 5,000 Vrms. This non-magnetic RF cable has an outer conductor of copper-tin composite and a repeat minimum bend radius of 0.375 inch. FM-141FL-NM non-magnetic RF cable is part of more than one million RF, microwave, and millimeter wave parts in stock at Fairview Microwave. This FM-141FL-NM coaxial cable is ready to buy and can be shipped worldwide. Fairview Microwave also maintains a wide selection of other radio frequency coaxial cable types that ship the same business day from our warehouse in the United States, as with the rest of our other RF/microwave and millimeter wave components.

Expand

SKU FM-141FL-NM-BULK FM-141FL-NM-BULK -0

QTY available

Price

Quantity (FEET) Price

All prices are in US dollars and do not include duties.
Quantity selected indicates total length of bulk cable (i.e., inputting 10 indicates a 10 foot section), contact us for alternate requirements.
Contact us for different unit of measure (inches, meters, etc.) requirements.

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Generic Name

.141 Semi-rigid

Flex Type

Formable

Impedance

50 Ohm

Dielectric Type

PTFE

Velocity of Propagation

70 %

RF Shielding

90 dB

Frequency, Max

34 GHz

Max Operating Temperature

200 deg C

Center Conductor Type

Solid

Inner Conductor, Number of Strands

1

Minimum Bend Radius, Repeated

0.375 in

Coax Type

Coax

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
