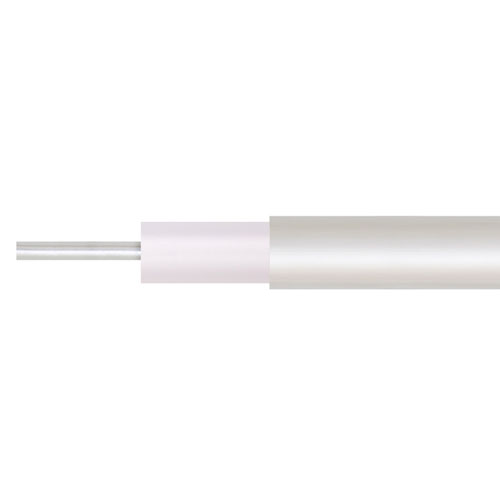

.047 Low Loss Semi-Rigid Coax Cable with Tin Plated Copper Outer Conductor and Microporous PTFE 76.5 pct VoP Dielectric, Straight Sections

.047 Low Loss Semi-Rigid Coax Cable with Tin Plated Copper Outer Conductor and Microporous PTFE 76.5 pct VoP Dielectric, Straight Sections

FM-SR047CUTNLL coax cable from Fairview is only one of a large number of radio frequency twinaxial and coaxial cable types specifically stocked to be ready for quick shipment. Fairview Microwave FMBC0...

FM-SR047CUTNLL coax cable from Fairview is only one of a large number of radio frequency twinaxial and coaxial cable types specifically stocked to be ready for quick shipment. Fairview Microwave FMBC002-BULK coax cable is manufactured in a semi-rigid design and has a 50 Ohm impedance..047 Semi-rigid FMBC002-BULK semi-rigid 50 Ohm coax cable is rated for a 115 GHz maximum operating frequency. This 50 Ohm low loss semi-rigid coax cable is built with a shield count of 1.Fairview Microwave FM-SR047CUTNLL coax is constructed with Microporous PTFE dielectric and a maximum operating temperature of 225 degrees C. FM-SR047CUTNLL coax cable specs for this wire properties can be found on its RF coax cable FM-SR047CUTNLL datasheet PDF specifications above.FM-SR047CUTNLL cable is part of more than one million RF, microwave and millimeter wave parts in stock at Fairview. This low loss FM-SR047CUTNLL coax cable is ready to buy and can be shipped worldwide. Fairview also maintains a wide selection of other radio frequency twinaxial and coaxial cable types that ship same-day from our warehouse as with the rest of our other RF/microwave and millimeter wave components.

Expand

SKU FMBC002-BULK FMBC002-BULK -0

QTY available 2

Price $25.39

Quantity (FEET) Price

1-24$25.39

25-49$24.12

50-99$22.85

100-249$21.84

250-499$20.82

500+$20.82Please call for quote

All prices are in US dollars and do not include duties.
Quantity selected indicates total length of bulk cable (i.e., inputting 10 indicates a 10 foot section), contact us for alternate requirements.
Contact us for different unit of measure (inches, meters, etc.) requirements.

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Generic Name

.047 Semi-rigid

Flex Type

Semi-Rigid

Impedance

50 Ohm

Dielectric Type

Microporous PTFE

Velocity of Propagation

76.5 %

No. of Shields

1

Attenuation at 1 Ghz.

30 dB

Power, Max at 1 Ghz.

101 Watts

Frequency, Max

115 GHz

Max Operating Temperature

225 deg C

Center Conductor Type

Solid

Inner Conductor, Number of Strands

1

Minimum Bend Radius, One Time

0.125 in

Coax Type

Coax

Product compliance

RoHS status

No Substance(s) Present Above Threshold

REACH status

SVHC (01/2025) No Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
