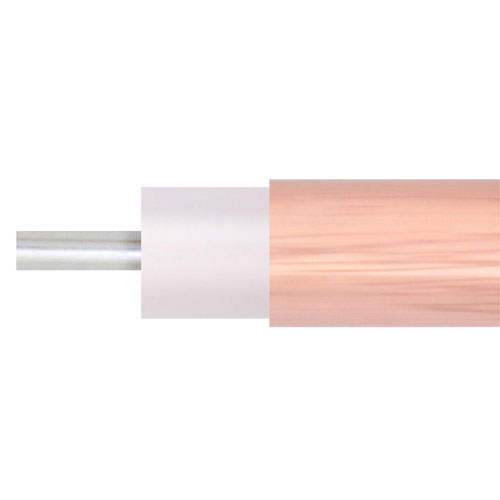

RG401 Type .250 Semi-Rigid Coax Cable with a Bare Copper Outer Conductor in Straight Sections

RG401 Type .250 Semi-Rigid Coax Cable with a Bare Copper Outer Conductor in Straight Sections

FM-SR250CU coax cable from Fairview is only one of a large number of radio frequency twinaxial and coaxial cable types specifically stocked to be ready for quick shipment. Fairview Microwave FM-SR250C...

FM-SR250CU coax cable from Fairview is only one of a large number of radio frequency twinaxial and coaxial cable types specifically stocked to be ready for quick shipment. Fairview Microwave FM-SR250CU-ST-BULK coax cable is manufactured in a semi-rigid design and has a 50 Ohm impedance.SR250CU FM-SR250CU-ST-BULK semi-rigid 50 Ohm coax cable is rated for a 20 GHz maximum operating frequency. This 50 Ohm semi-rigid coax cable is built with a shield count of 0.Fairview Microwave FM-SR250CU coax is constructed with PTFE dielectric and a maximum operating temperature of 125 degrees C. FM-SR250CU coax cable specs for this wire properties can be found on its RF coax cable FM-SR250CU datasheet PDF specifications above.FM-SR250CU cable is part of more than one million RF, microwave and millimeter wave parts in stock at Fairview. This FM-SR250CU coax cable is ready to buy and can be shipped worldwide. Fairview also maintains a wide selection of other radio frequency twinaxial and coaxial cable types that ship same-day from our warehouse as with the rest of our other RF/microwave and millimeter wave components.

Expand

SKU FM-SR250CU-ST-BULK FM-SR250CU-ST-BULK -0

QTY available

Price

Quantity (FEET) Price

All prices are in US dollars and do not include duties.
Quantity selected indicates total length of bulk cable (i.e., inputting 10 indicates a 10 foot section), contact us for alternate requirements.
Contact us for different unit of measure (inches, meters, etc.) requirements.

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Generic Name

SR250CU

Flex Type

Semi-Rigid

Impedance

50 Ohm

Dielectric Type

PTFE

No. of Shields

0

Attenuation at 1 Ghz.

7.5 dB

Power, Max at 1 Ghz.

870 Watts

Frequency, Max

20 GHz

Max Operating Temperature

125 deg C

Center Conductor Type

Solid

Minimum Bend Radius, One Time

0.375 in

Coax Type

Coax

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
