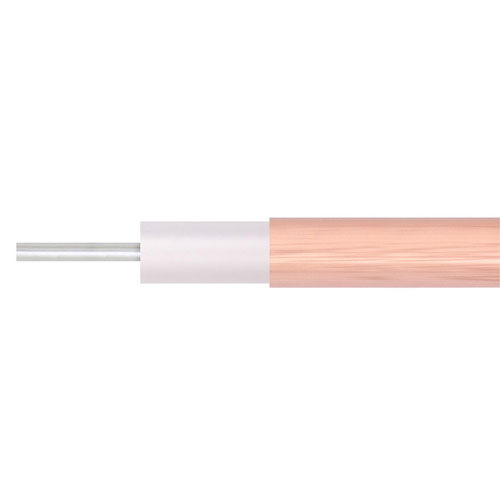

RG405 Type .086 Semi-Rigid Coax Cable with a Bare Copper Outer Conductor in Straight Sections

RG405 Type .086 Semi-Rigid Coax Cable with a Bare Copper Outer Conductor in Straight Sections

FM-SR086CU coax cable from Fairview is only one of a large number of radio frequency twinaxial and coaxial cable types specifically stocked to be ready for quick shipment. Fairview Microwave FM-SR086C...

FM-SR086CU coax cable from Fairview is only one of a large number of radio frequency twinaxial and coaxial cable types specifically stocked to be ready for quick shipment. Fairview Microwave FM-SR086CU-STR coax cable is manufactured in a semi-rigid design and has a 50 Ohm impedance.SR086CU FM-SR086CU-STR semi-rigid 50 Ohm coax cable is rated for a 40 GHz maximum operating frequency. This 50 Ohm semi-rigid coax cable is built with a shield count of 0.Fairview Microwave FM-SR086CU coax is constructed with PTFE dielectric and a maximum operating temperature of 125 degrees C. FM-SR086CU coax cable specs for this wire properties can be found on its RF coax cable FM-SR086CU datasheet PDF specifications above.FM-SR086CU cable is part of more than one million RF, microwave and millimeter wave parts in stock at Fairview. This FM-SR086CU coax cable is ready to buy and can be shipped worldwide. Fairview also maintains a wide selection of other radio frequency twinaxial and coaxial cable types that ship same-day from our warehouse as with the rest of our other RF/microwave and millimeter wave components.

Expand

SKU FM-SR086CU-STR FM-SR086CU-STR -0

Product no longer available

This product has been discontinued and has run out of stock. We apologize for the inconvenience.

Replacement Part: FM-SR086CU-ST-BULK

Key specifications

Datasheet

View All

Generic Name

SR086CU

Flex Type

Semi-Rigid

Impedance

50 Ohm

Dielectric Type

PTFE

No. of Shields

0

Attenuation at 1 Ghz.

22 dB

Power, Max at 1 Ghz.

130 Watts

Frequency, Max

40 GHz

Max Operating Temperature

125 deg C

Center Conductor Type

Solid

Minimum Bend Radius, One Time

0.12 in

Coax Type

Coax

Product compliance

RoHS status

Not Available

REACH status

SVHC (06/2024) No Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
