1.85mm Female (Jack) PCB Connector End Launch Removable End Launch, Clamp/Solder (Captive Contact), 0.35 Width

1.85mm Female (Jack) PCB Connector End Launch Removable End Launch, Clamp/Solder (Captive Contact), 0.35 Width

FMCN1337 1.85mm female PCB connector from Fairview Microwave has an interface type of end launch and a 50 Ohm impedance. This 1.85mm female connector uses shield attachment of clamp/solder (captive co...

FMCN1337 1.85mm female PCB connector from Fairview Microwave has an interface type of end launch and a 50 Ohm impedance. This 1.85mm female connector uses shield attachment of clamp/solder (captive contact) attachment for the contact. Our female 1.85mm PCB connector provides a minimum frequency of DC and a maximum frequency of 67 GHz.1.85mm female PCB RF connector has a pctfe dielectric type and a VSWR of 1.25:1. This Fairview Microwave 1.85mm PCB connector has a brass body with nickel plating. Our FMCN1337 1.85mm connector uses beryllium copper contact and a nickel plating material. This 1.85mm female PCB RF connector is RoHS and removable end launch, 0.35 width compliant, you can find this 1.85mm female PCB removable end launch, 0.35 width connector datasheet specifications above.Fairview Microwave female 1.85mm connector purchases will ship the same day. Our 1.85mm female end launch connector is part of over one million RF, microwave and millimeter wave components in stock and ready for same-day shipment worldwide. We also build custom 1.85mm cable connector assemblies that will ship quickly from our location.

Expand

SKU FMCN1337 FMCN1337 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Polarity

Standard

Connector Series

1.85mm

Connector Gender

Female

Impedance

50 Ohm

Body Style

Straight

Attachment Method

Clamp/Solder (Captive Contact)

Mount Method

None

Minimum Frequency

DC

Maximum Frequency

67 GHz

Termination Type

PCB

Interface Type 1

End Launch

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (01/2025) No Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

1.85mm-female-end-launch-pcb-connector-fmcn1521 Fairview Microwave FMCN1521

10 available

1.85mm Female (Jack) PCB Connector End Launch Removable End Launch, Clamp/Solder (Captive Contact), Low Profile

Compare

SKU FMCN1521

Starting price $53.99

Estimated shipment Today

1.85mm-female-end-launch-pcb-connector-fmcn1520 Fairview Microwave FMCN1520

21 available

1.85mm Female (Jack) PCB Connector End Launch Removable End Launch, Clamp/Solder (Captive Contact), Standard Profile

Compare

SKU FMCN1520

Starting price $67.52

Estimated shipment Today

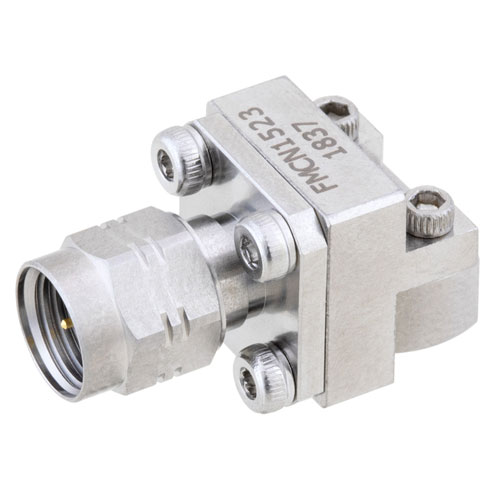

1.85mm-male-end-launch-pcb-connector-fmcn1523 Fairview Microwave FMCN1523

4 available

1.85mm Male (Plug) PCB Connector End Launch Removable End Launch, Clamp/Solder (Captive Contact), Low Profile

Compare

SKU FMCN1523

Starting price $64.99

Estimated shipment Today

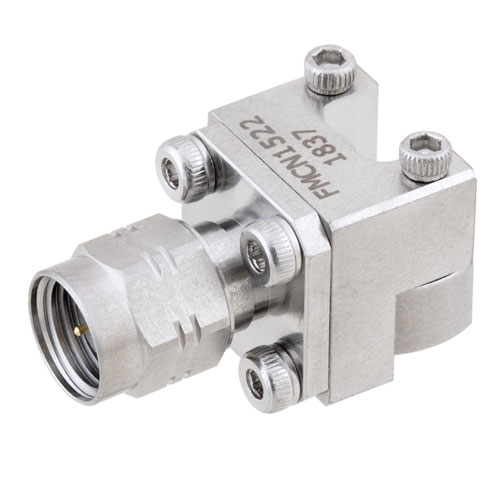

1.85mm-male-end-launch-pcb-connector-fmcn1522 Fairview Microwave FMCN1522
