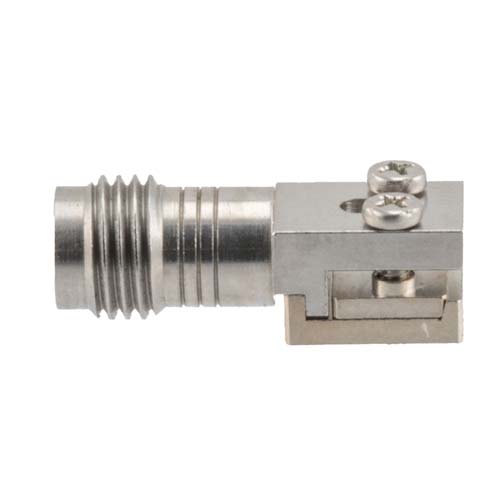

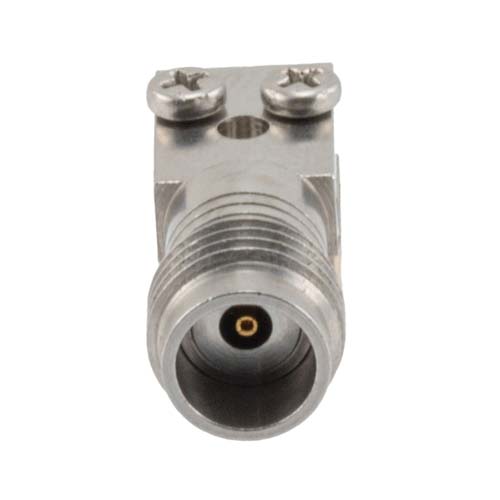

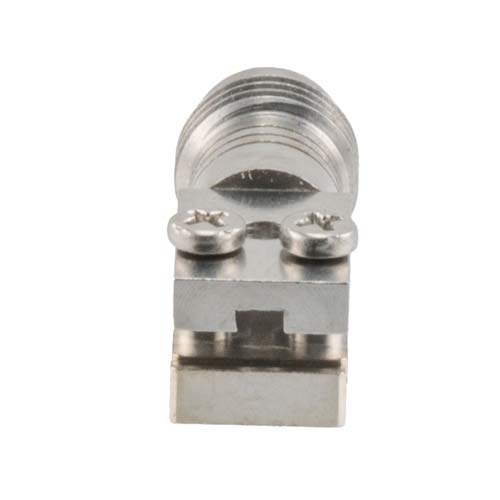

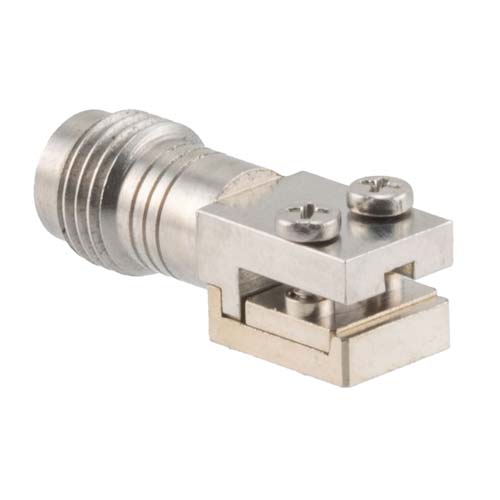

1.85mm Female (Jack) 2 Hole PCB Narrow Body, 0.062 inches End Launch PCB Connector, Solderless

1.85mm Female (Jack) 2 Hole PCB Narrow Body, 0.062 inches End Launch PCB Connector, Solderless

FMCN45950 1.85mm female PCB standard RF connector and has an impedance of 50 Ohm. Our female 1.85mm PCB connector operates at a maximum frequency of 67 GHz. Our high-quality radio frequency co-axial c...

FMCN45950 1.85mm female PCB standard RF connector and has an impedance of 50 Ohm. Our female 1.85mm PCB connector operates at a maximum frequency of 67 GHz. Our high-quality radio frequency co-axial connector is used for general purpose test and printed circuit board applications. This 1.85mm female RF connector is stocked to be readily available for same business day shipment and can be expertly assembled using our online cable creator.The Fairview Microwave 1.85mm female (jack) PCB connector has a teflon dielectric type and a VSWR of 1.3:1. Fairview Microwave’s 1.85mm PCB connector has a stainless steel body. Our FMCN45950 connector uses a beryllium copper inner contact and a stainless steel outer contact. This threaded RF connector can operate at temperatures ranging from -40 to +165 degrees C. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings.Fairview Microwave standard RF connector block has a maximum inner conductor and outer conductor resistance of 4 mOhms and 2.5 mOhms respectively. The radio frequency connector is made from stainless steel along with a contact life of 500 cycles or more. This 1.85mm connector has a gold inner contact plating. Fairview Microwave’s standard 1.85mm female connector has a maximum operating voltage of 150 Vrms and a dielectric withstanding voltage of 500 Vrms. Our PCB RF connector has a length of 0.76 inches, a width of 0.25 inches, and a weight of 0.002 lbs. This connector comes with a minimum insulation resistance of 5,000 MOhms. Our 1.85mm female PCB connector is part of RF, microwave, and millimeter wave components in stock for worldwide shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.

Expand

SKU FMCN45950 FMCN45950 -0

QTY available 15

Price $68.79

Quantity Price

1-24$68.79

25-49$65.35

50-99$61.91

100-249$59.16

250-499$56.41

500+$56.41Please call for quote

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Polarity

Standard

Connector Series

1.85mm

Connector Gender

Female

Impedance

50 Ohm

Body Style

Straight

Mount Method

None

Minimum Frequency

DC

Maximum Frequency

67 GHz

Termination Type

PCB

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99
