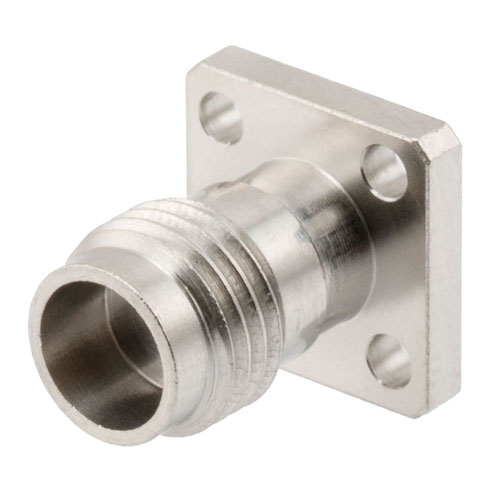

1.85mm Female Connector Field Replaceable Attachment 4 Hole Flange with EMI gasket, accepts 0.3mm (.012inch) pin

1.85mm Female Connector Field Replaceable Attachment 4 Hole Flange with EMI gasket, accepts 0.3mm (.012inch) pin

FMCN1791 1.85mm female 4 hole flange coaxial connector from Fairview Microwave has an interface type of with EMI gasket, accepts 0.3mm (.012inch) pin and a 50 Ohm impedance. This 1.85mm female 4 h...

FMCN1791 1.85mm female 4 hole flange coaxial connector from Fairview Microwave has an interface type of with EMI gasket, accepts 0.3mm (.012inch) pin and a 50 Ohm impedance. This 1.85mm female 4 hole flange connector uses shield attachment of attachment for the contact. Our female 1.85mm coaxial connector provides a minimum frequency of DC and a maximum frequency of 67 GHz.1.85mm female 4 hole flange coaxial RF connector has a pei dielectric type and a VSWR of 1.25:1. This Fairview Microwave 1.85mm coaxial connector has a passivated stainless steel body. Our FMCN1791 1.85mm connector uses beryllium copper contact. This 1.85mm female 4 hole flange coaxial RF connector is RoHS compliant, you can find this 1.85mm female 4 hole flange coaxial connector datasheet specifications above. Fairview Microwave female 1.85mm 4 hole flange connector purchases will ship the same day. Our 4 hole flange 1.85mm female with EMI gasket / accepts 0.3mm (.012inch) pin connector is part of over one million RF, microwave and millimeter wave components in stock and ready for same-day shipment worldwide. We also build custom 1.85mm cable connector assemblies that will ship quickly from our location.

Expand

SKU FMCN1791 FMCN1791 -0

QTY available 10

Price $36.43

Quantity Price

1-24$36.43

25-49$34.61

50-99$32.79

100-249$31.33

250-499$29.87

500+$29.87Please call for quote

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector Series

1.85mm

Connector Gender

Female

Impedance

50 Ohm

Body Style

Straight

Attachment Method

Field Replaceable

Mount Method

4 Hole Flange

Minimum Frequency

DC

Maximum Frequency

67 GHz

Interface Type 1

with EMI gasket

Interface Type 2

accepts 0.3mm (.012inch) pin

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (06/2024) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
