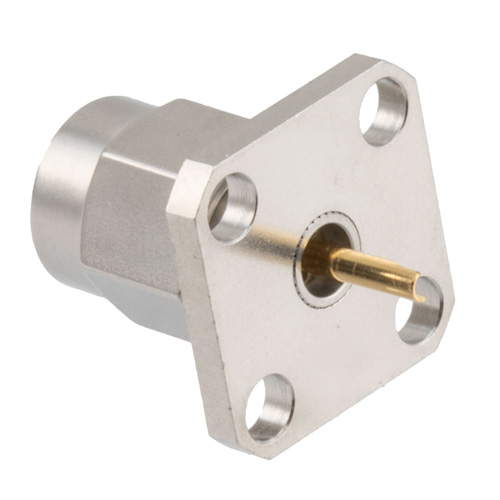

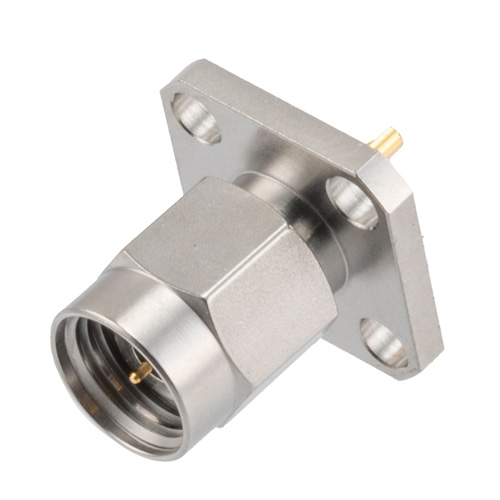

2.4mm Male (Plug) 4 hole 0.5 inches SQ with Solder Cup Contact 50Ghz VSWR1.2

2.4mm Male (Plug) 4 hole 0.5 inches SQ with Solder Cup Contact 50Ghz VSWR1.2

FMCN45939 2.4mm male PCB standard RF connector and has an impedance of 50 Ohm. Fairview Microwave’s 2.4mm male connector uses solder as an attachment method. Our male 2.4mm PCB connector operates at ...

FMCN45939 2.4mm male PCB standard RF connector and has an impedance of 50 Ohm. Fairview Microwave’s 2.4mm male connector uses solder as an attachment method. Our male 2.4mm PCB connector operates at a maximum frequency of 50 GHz. Our high-quality radio frequency co-axial connector is used for general purpose test and printed circuit board applications. This 2.4mm male RF connector is stocked to be readily available for same business day shipment and can be expertly assembled using our online cable creator.The Fairview Microwave 2.4mm male (plug) PCB connector has a PEI dielectric type and a VSWR of 1.2:1. Fairview Microwave’s 2.4mm PCB connector has a stainless steel body. Our FMCN45939 connector uses brass contact. This threaded RF connector can operate at temperatures ranging from -40 to +165 degrees C. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings.Fairview Microwave standard RF connector block has a maximum inner conductor and outer conductor resistance of 4 mOhms and 2.5 mOhms respectively. Our 2.4mm male RF connector with PCB termination has a 0.353 dB maximum insertion loss. The radio frequency connector is made from stainless steel along with a contact life of 500 cycles or more. This 2.4mm connector has a gold inner contact plating. Fairview Microwave’s standard 2.4mm male connector has a maximum operating voltage of 150 Vrms and a dielectric withstanding voltage of 500 Vrms. Our PCB RF connector has a length of 0.69 inches, a width of 0.5 inches, and a weight of 0.15 lbs. This connector comes with a minimum insulation resistance of 5,000 MOhms. Our 2.4mm male PCB connector is part of RF, microwave, and millimeter wave components in stock for worldwide shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.

Expand

SKU FMCN45939 FMCN45939 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Polarity

Standard

Connector Series

2.4mm

Connector Gender

Male

Impedance

50 Ohm

Body Style

Straight

Attachment Method

Solder

Minimum Frequency

DC

Maximum Frequency

50 GHz

Termination Type

PCB

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
