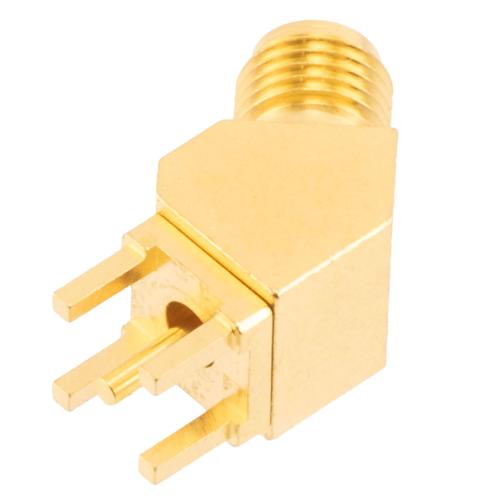

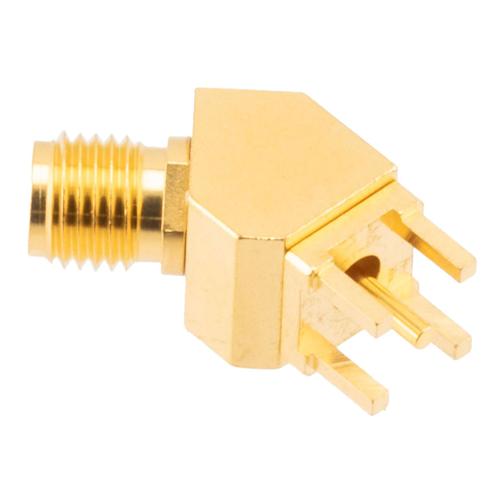

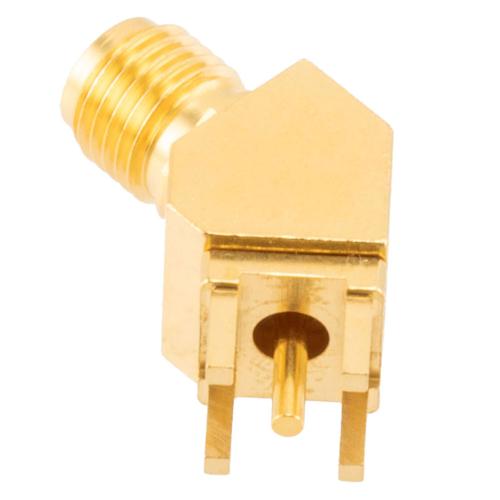

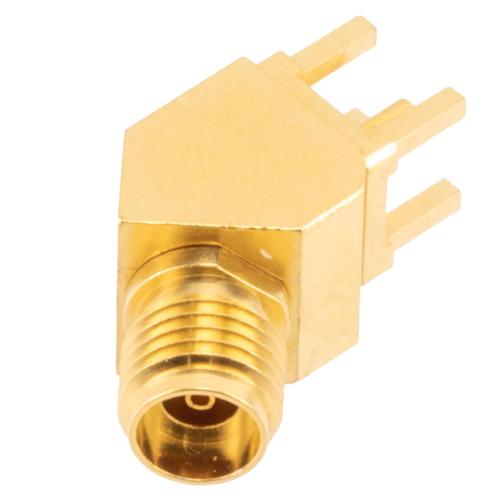

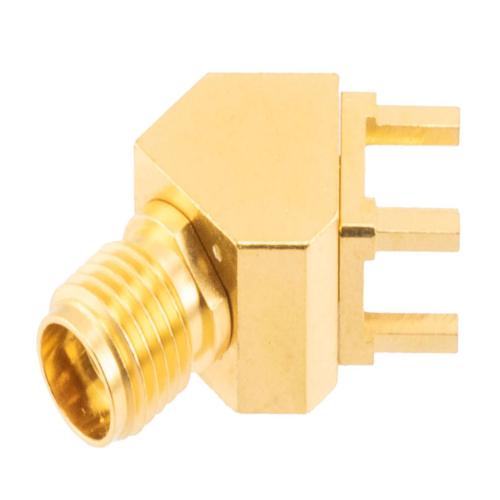

2.92mm Female (Jack) PCB Mount Connector, 45 Degree angle with round contact 0.05 inches diameter, 40GHz VSWR1.2

2.92mm Female (Jack) PCB Mount Connector, 45 Degree angle with round contact 0.05 inches diameter, 40GHz VSWR1.2

FMCN45997 2.92mm female 45 degree PCB connector has an interface type of 2.92mm female and has an impedance of 50 Ohm. Our female 2.92mm 45 degree connector operates at a maximum frequency of 40 ...

FMCN45997 2.92mm female 45 degree PCB connector has an interface type of 2.92mm female and has an impedance of 50 Ohm. Our female 2.92mm 45 degree connector operates at a maximum frequency of 40 GHz. This 2.92mm female RF connector is stocked to be readily available for same business day shipment.The Fairview Microwave 45 degree 2.92mm female (jack) PCB connector has a PEI dielectric type and a VSWR of 1.2:1. Fairview Microwave's 2.92mm connector has a brass body with gold over nickel over copper plating. Our FMCN45997 45 degree connector uses beryllium copper contact. This RF connector can operate at temperatures ranging from -40 to +165 degrees C. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings.Fairview Microwave RF connector block has a maximum inner conductor and outer conductor resistance of 3 mOhms and 2 mOhms respectively. Our 2.92mm female RF connector has a 0.25 dB maximum insertion loss. The radio frequency connector is made from brass along with a contact life of 500 cycles or more. This 45 degree 2.92mm connector has a gold over nickel over copper inner contact plating. Fairview Microwave’s 2.92mm female connector has a dielectric withstanding voltage of 750 Vrms. This Fairview Microwave 45 degree female 2.92mm PCB connector will ship the same business day as purchased. Our PCB 2.92mm 45 degree female connector is part of RF, microwave and millimeter wave components in stock for worldwide shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.

Expand

SKU FMCN45997 FMCN45997 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector Series

2.92mm

Connector Gender

Female

Impedance

50 Ohm

Body Style

45 Degree

Mount Method

PCB

Minimum Frequency

DC

Maximum Frequency

40 GHz

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

2.4mm-female-connector-fmcn45998 Fairview Microwave FMCN45998

10 available

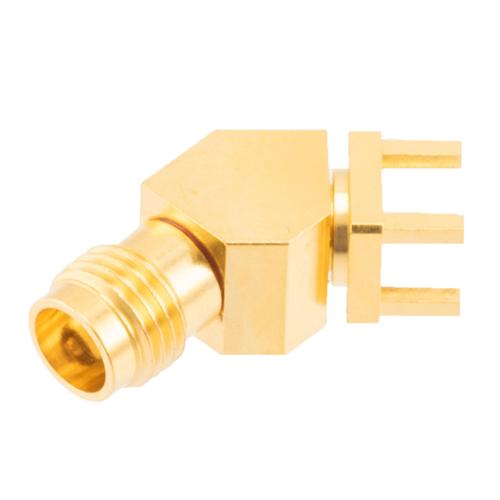

2.4mm Female (Jack) PCB Mount Connector, 45 Degree angle with round contact 0.04 inches diameter, 50GHz VSWR1.35

Compare

SKU FMCN45998

Starting price $81.99

Estimated shipment Today

2.92mm-female-pcb-connector-fmcn45920 Fairview Microwave FMCN45920

13 available

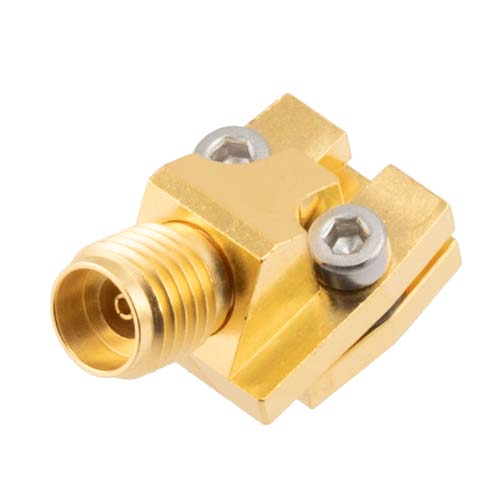

2.92mm Female (Jack) Connector 30 Degree Angle Solderless PCB Mount 2 Hole 40GHz VSWR 1.25, Through Hole

Compare

SKU FMCN45920

Starting price $129.99

Estimated shipment Today

2.92mm-female-pcb-connector-fmcn45925 Fairview Microwave FMCN45925

15 available

2.92mm Female (Jack) 2 hole PCB Mount with Round Contact 40GHz VSWR1.2, 0.050 inches Diameter Pin and 0.138 inches Pin Length

Compare

SKU FMCN45925

Starting price $93.79

Estimated shipment Today

2.92mm-female-pcb-connector-fmcn45923 Fairview Microwave FMCN45923

13 available

2.92mm Female (Jack) 2 hole PCB Mount with Round Contact 40GHz VSWR1.2, 0.012 inches Diameter Pin and 0.059 inches Pin Length

Compare

SKU FMCN45923

Starting price $93.79

Estimated shipment Today
