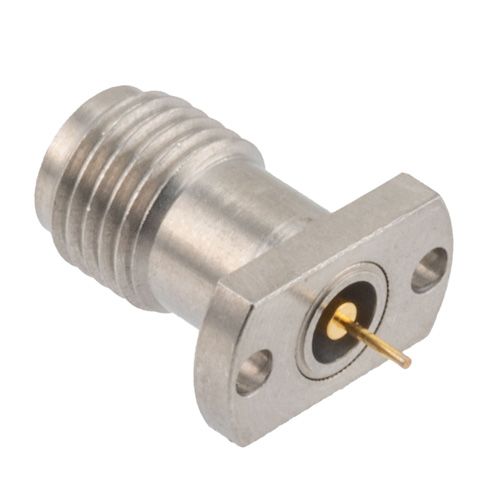

2.92mm Female (Jack) 2 hole PCB Mount with Round Contact 42GHz VSWR1.2, 0.016 inches Diameter Pin and 0.106 inches Pin Length

2.92mm Female (Jack) 2 hole PCB Mount with Round Contact 42GHz VSWR1.2, 0.016 inches Diameter Pin and 0.106 inches Pin Length

FMCN45924 2.92mm female PCB standard RF connector and has an impedance of 50 Ohm. Fairview Microwave’s 2.92mm female connector uses solder as an attachment method. Our female 2.92mm PCB connector ope...

FMCN45924 2.92mm female PCB standard RF connector and has an impedance of 50 Ohm. Fairview Microwave’s 2.92mm female connector uses solder as an attachment method. Our female 2.92mm PCB connector operates at a maximum frequency of 42 GHz. Our high-quality radio frequency co-axial connector is used for general purpose test and printed circuit board applications. This 2.92mm female RF connector is stocked to be readily available for same business day shipment and can be expertly assembled using our online cable creator.The Fairview Microwave 2.92mm female (jack) PCB connector has a PEI dielectric type and a VSWR of 1.2:1. Fairview Microwave’s 2.92mm PCB connector has a stainless steel body. Our FMCN45924 connector uses a beryllium copper inner contact and a stainless steel outer contact. This threaded RF connector can operate at temperatures ranging from -40 to +165 degrees C. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings.Fairview Microwave standard RF connector block has a maximum inner conductor and outer conductor resistance of 3 mOhms and 2 mOhms respectively. Our 2.92mm female RF connector with PCB termination has a 0.259 dB maximum insertion loss. The radio frequency connector is made from stainless steel along with a contact life of 500 cycles or more. This 2.92mm connector has a gold inner contact plating. Fairview Microwave’s standard 2.92mm female connector has a maximum operating voltage of 250 Vrms and a dielectric withstanding voltage of 750 Vrms. Our PCB RF connector has a length of 0.54 inches, a width of 0.4 inches, and a weight of 0.12 lbs. This connector comes with a minimum insulation resistance of 5,000 MOhms. Our 2.92mm female PCB connector is part of RF, microwave, and millimeter wave components in stock for worldwide shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.

Expand

SKU FMCN45924 FMCN45924 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Polarity

Standard

Connector Series

2.92mm

Connector Gender

Female

Impedance

50 Ohm

Body Style

Straight

Attachment Method

Solder

Minimum Frequency

DC

Maximum Frequency

42 GHz

Termination Type

PCB

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
