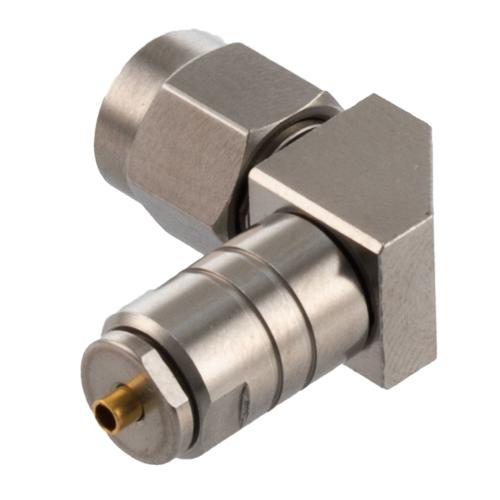

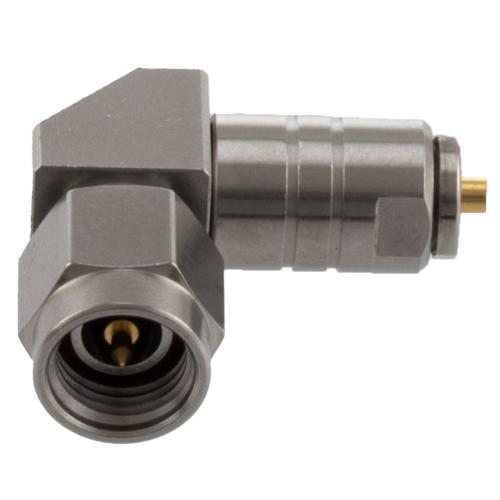

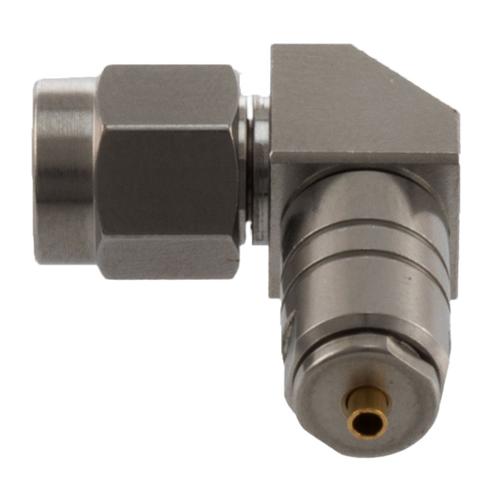

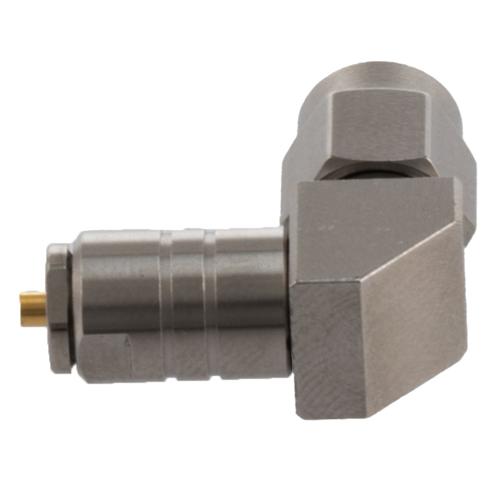

RA 3.5mm Male Connector Clamp/Solder Attachment for FM-SR047ALTN-COIL, FM-SR047CU-COIL, FM-SR047CUTN-COIL, .047 Semi-Rigid Cable

RA 3.5mm Male Connector Clamp/Solder Attachment for FM-SR047ALTN-COIL, FM-SR047CU-COIL, FM-SR047CUTN-COIL, .047 Semi-Rigid Cable

FMCN51277 3.5mm male right angle coaxial connector has an interface type of 3.5mm male FM-SR047ALTN-COIL, FM-SR047CU-COIL, FM-SR047CUTN-COIL and .047 semi-rigid and has an impedance of 50 Ohm. Fairv...

FMCN51277 3.5mm male right angle coaxial connector has an interface type of 3.5mm male FM-SR047ALTN-COIL, FM-SR047CU-COIL, FM-SR047CUTN-COIL and .047 semi-rigid and has an impedance of 50 Ohm. Fairview Microwave's 3.5mm male connector uses clamp/solder as an attachment method. Our male 3.5mm right angle coaxial connector operates at a maximum frequency of 26.5 MHz. This 3.5mm male RF connector is stocked to be readily available for same business day shipment.The Fairview Microwave right angle 3.5mm male (plug) coaxial connector has a PPO dielectric type and a VSWR of 1.25:1. Fairview Microwave's 3.5mm coaxial connector has a stainless steel body with passivated plating. Our FMCN51277 right angle connector uses beryllium copper contact. This threaded RF connector can operate at temperatures ranging from -55 to +105 degrees C. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings.Fairview Microwave standard RF connector block has a maximum inner conductor and outer conductor resistance of 3 mOhms and 2 mOhms respectively. Our 3.5mm male RF connector with coaxial termination has a 0.154 dB maximum insertion loss. The radio frequency connector is made from stainless steel along with a contact life of 500 cycles or more. This right angle 3.5mm connector has a gold over nickel inner contact plating. Fairview Microwave’s standard 3.5mm male connector has a maximum operating voltage of 250 Vrms and a dielectric withstanding voltage of 750 Vrms. Our coaxial RF connector has a length of 0.704724 inches, a width of 0.291339 inches, and a weight of 0.015 lbs. This connector comes with a minimum insulation resistance of MOhms. This Fairview Microwave standard right angle male 3.5mm connector will ship the same business day as purchased. Our 3.5mm right angle male connector is part of RF, microwave and millimeter wave components in stock for worldwide shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.

Expand

SKU FMCN51277 FMCN51277 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Polarity

Standard

Connector Series

3.5mm

Connector Gender

Male

Impedance

50 Ohm

Body Style

Right Angle

Attachment Method

Clamp/Solder

Mount Method

None

Minimum Frequency

DC

Maximum Frequency

26.5 MHz

Termination Type

Coax

Interface Type 1

FM-SR047ALTN-COIL

Interface Type 2

FM-SR047CU-COIL

Interface Type 3

FM-SR047CUTN-COIL

Interface Type 4

.047 Semi-Rigid

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (06/2024) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
