4.3-10 Female (Jack) Low PIM Connector Solder Cup Terminal 4 Hole Flange (Panel Mount) IP67 Rated, Solder

4.3-10 Female (Jack) Low PIM Connector Solder Cup Terminal 4 Hole Flange (Panel Mount) IP67 Rated, Solder

FMCN1189 4.3-10 female 4 hole flange terminal connector from Fairview Microwave has an interface type of solder cup and a impedance. This 4.3-10 female 4 hole flange connector uses shield attachment o...

FMCN1189 4.3-10 female 4 hole flange terminal connector from Fairview Microwave has an interface type of solder cup and a impedance. This 4.3-10 female 4 hole flange connector uses shield attachment of solder attachment for the contact. Our female 4.3-10 terminal connector provides a minimum frequency of DC and a maximum frequency of 6 GHz.4.3-10 female 4 hole flange terminal RF connector has a ptfe dielectric type and a VSWR of 1.08:1. This Fairview Microwave 4.3-10 terminal connector has a brass body with tri-metal plating. Our FMCN1189 4.3-10 connector uses brass contact and a tri-metal plating material. This 4.3-10 female 4 hole flange terminal RF connector is RoHS and IP67 rated compliant, you can find this 4.3-10 female 4 hole flange terminal IP67 rated connector datasheet specifications above.Fairview Microwave female 4.3-10 4 hole flange connector purchases will ship the same day. Our 4 hole flange 4.3-10 female solder cup connector is part of over one million RF, microwave and millimeter wave components in stock and ready for same-day shipment worldwide. We also build custom 4.3-10 cable connector assemblies that will ship quickly from our location.

Expand

SKU FMCN1189 FMCN1189 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Polarity

Standard

Connector Series

4.3-10

Connector Gender

Female

Body Style

Straight

Attachment Method

Solder

Mount Method

4 Hole Flange

Minimum Frequency

DC

Maximum Frequency

6 GHz

Termination Type

Terminal

Interface Type 1

Solder Cup

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (06/2024) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

4.3-10-female-pin-terminal-connector-fmcn1425 Fairview Microwave FMCN1425

Call us

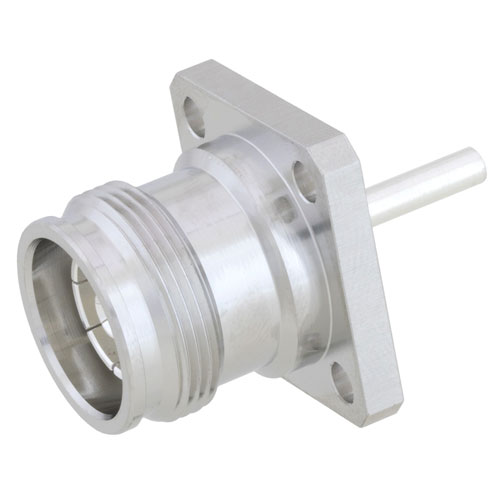

4.3-10 Female (Jack) Low PIM Connector Pin Terminal, 4 Hole Flange (Panel Mount), Solder

Compare

SKU FMCN1425

Starting price $34.59

Estimated shipment Call Us

4.3-10-female-rg402-rg402-tinned-.141-sr-cable-connector-fmcn1174 Fairview Microwave FMCN1174

8 available

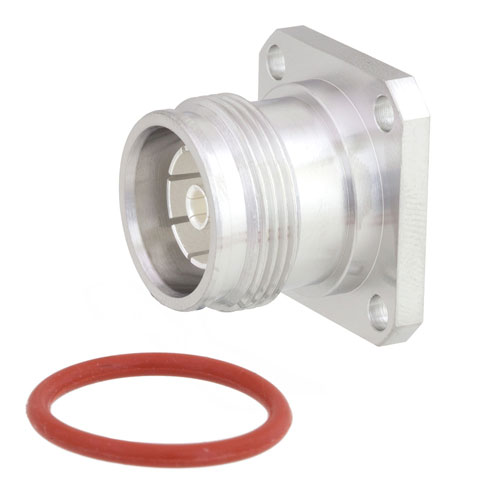

4.3-10 Female (Jack) Low PIM Connector 4 Hole Flange (Panel Mount) For RG402, RG402 Tinned, .141 SR Cable IP67 Rated, Solder

Compare

SKU FMCN1174

Starting price $12.99

Estimated shipment Today

sma-female-solder-cup-terminal-connector-fmcn4405 Fairview Microwave FMCN4405

34 available

SMA Female Connector Solder Cup Terminal Solder Attachment 4 Hole Flange , .500 inch Hole Spacing

Compare

SKU FMCN4405

Starting price $41.39

Estimated shipment Today

sma-female-solder-cup-terminal-connector-sc7505 Fairview Microwave SC7505

102 available

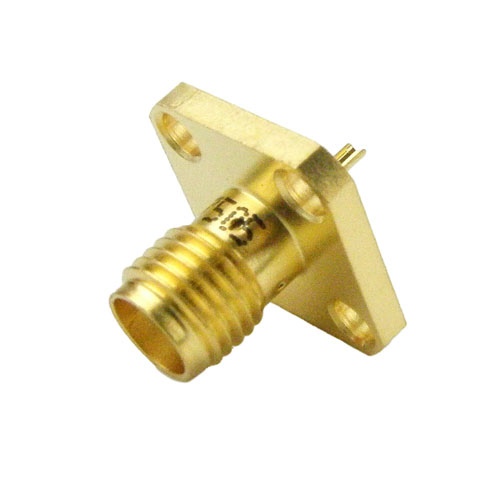

SMA Female (Jack) Connector Solder Cup Terminal 4 Hole Flange (Panel Mount), Solder
