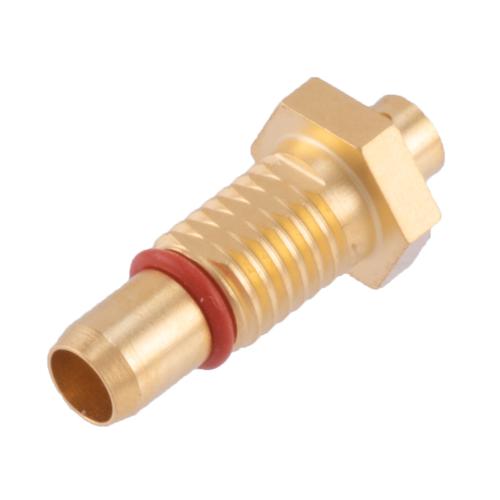

BMMA Male (Plug) Bulkhead Connector Solder Attachment for FM-SR086CU, FM-SR086CUTN, FM-SR086ALTN, FM-SR086TB, FM-SR086TBJ, 0.085 Cable

BMMA Male (Plug) Bulkhead Connector Solder Attachment for FM-SR086CU, FM-SR086CUTN, FM-SR086ALTN, FM-SR086TB, FM-SR086TBJ, 0.085 Cable

Name: BMMA Male (Plug) Bulkhead Connector Solder Attachment for FM-SR086CU, FM-SR086CUTN, FM-SR086ALTN, FM-SR086TB, FM-SR086TBJ, 0.085 Cable
Brand: Fairview Microwave, Inc.
SKU: FMCN5137
Price: 30.79 USD
Availability: InStock

FMCN5137 BMMA male bulkhead coaxial connector has an interface type of BMMA male which is compatible with FM-SR086CU, FM-SR086CUTN, FM-SR086ALTN, FM-SR086TB, FM-SR086TBJ, FM-F086, 0.085 cable and RG40...

FMCN5137 BMMA male bulkhead coaxial connector has an interface type of BMMA male which is compatible with FM-SR086CU, FM-SR086CUTN, FM-SR086ALTN, FM-SR086TB, FM-SR086TBJ, FM-F086, 0.085 cable and RG405 cables and has an impedance of 50 Ohms. Fairview Microwave’s BMMA male bulkhead connector uses solder as an attachment method. Our male BMMA coaxial connector operates at a maximum frequency of 28 GHz. This BMMA male RF connector is stocked to be readily available for same business day shipment and can be expertly assembled using our online cable creator.The Fairview Microwave BMMA male (plug) bulkhead coaxial connector has a PTFE dielectric type and a VSWR of 1.35:1. Fairview Microwave’s BMMA coaxial connector has a stainless steel body with gold plating. Our FMCN5137 connector uses beryllium copper inner and outer contacts. This RF connector can operate at temperatures ranging from -65 to +165 degrees C. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings. Our BMMA male RF connector with coaxial termination has a 0.529 dB maximum insertion loss. The radio frequency connector is made from stainless steel along with a contact life of 500 cycles or more. This connector has a gold inner and outer contact plating. Our coaxial RF connector has a length of 0.6 inches, a width of 0.3 inches, and a weight of 0.004 lbs. Our BMMA male coaxial connector is part of RF, microwave, and millimeter wave components in stock for worldwide shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.

Expand

SKU FMCN5137 FMCN5137 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Polarity

Standard

Connector Series

BMMA

Connector Gender

Male

Impedance

50 Ohm

Body Style

Straight

Attachment Method

Solder

Mount Method

Bulkhead

Minimum Frequency

DC

Maximum Frequency

28 GHz

Termination Type

Coax

Interface Type 1

FM-SR086CU

Interface Type 2

FM-SR086CUTN

Interface Type 3

FM-SR086ALTN

Interface Type 4

FM-SR086TB

Interface Type 5

FM-SR086TBJ

Interface Type 6

FM-F086

Interface Type 7

0.085 Cable

Interface Type 8

RG405

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

bmma-female-0.85-cable-connector-fmcn5134 Fairview Microwave FMCN5134

17 available

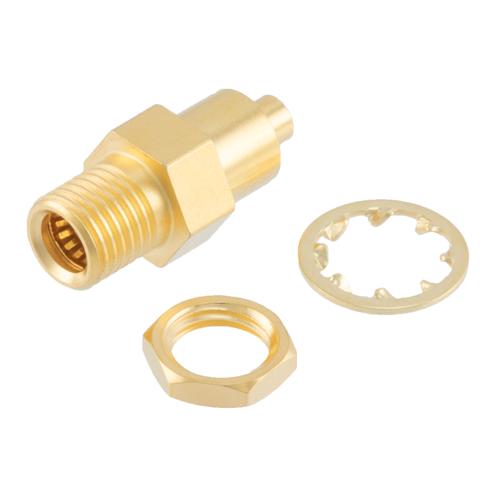

BMMA Female (Jack) Bulkhead Connector Solder Attachment for FM-SR086CU, FM-SR086CUTN, FM-SR086ALTN, FM-SR086TB, FM-SR086TBJ, 0.085 Cable

Compare

SKU FMCN5134

Starting price $91.99

Estimated shipment Today

bmma-female-.085-cable-connector-fmcn5136 Fairview Microwave FMCN5136

17 available

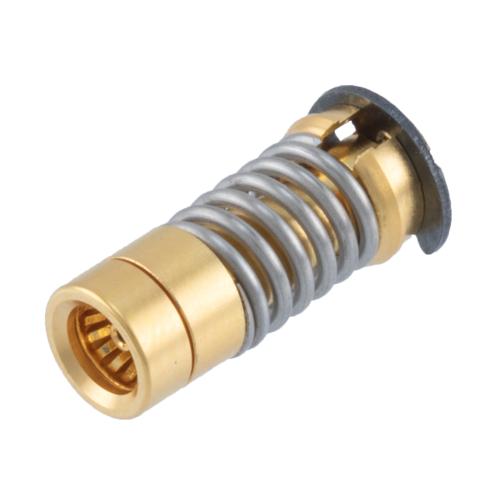

BMMA Female (Jack) Connector Solder Attachment Snap in for FM-SR086CU, FM-SR086CUTN, FM-SR086ALTN, FM-SR086TB, FM-SR086TBJ, 0.085 Cable
