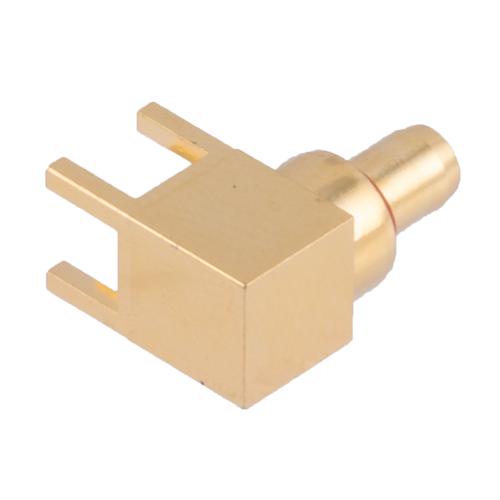

RA BMMA Male (Plug) PCB Connector Thru Hole Solder Attachment 0.200 inch X 0.067 inch Hole Spacing

RA BMMA Male (Plug) PCB Connector Thru Hole Solder Attachment 0.200 inch X 0.067 inch Hole Spacing

FMCN5140 BMMA male right angle PCB connector has an interface type of BMMA male which is compatible with thru hole cables and has an impedance of 50 Ohms. Fairview Microwave’s BMMA male connector uses...

FMCN5140 BMMA male right angle PCB connector has an interface type of BMMA male which is compatible with thru hole cables and has an impedance of 50 Ohms. Fairview Microwave’s BMMA male connector uses solder as an attachment method. Our male BMMA right angle PCB connector operates at a maximum frequency of 26.5 GHz. Our high-quality radio frequency co-axial connector is used for general purpose test and printed circuit board applications. This BMMA male RF connector is stocked to be readily available for same business day shipment and can be expertly assembled using our online cable creator.The Fairview Microwave right angle BMMA male (plug) PCB connector has a PTFE dielectric type and a VSWR of 1.45:1. Fairview Microwave’s BMMA PCB connector has a stainless steel body with gold plating. Our FMCN5140 right angle connector uses a beryllium copper inner contact and a stainless steel outer contact. This RF connector can operate at temperatures ranging from -65 to +165 degrees C. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings. Our BMMA male RF connector with PCB termination has a 0.772 dB maximum insertion loss. The radio frequency connector is made from stainless steel along with a contact life of 500 cycles or more. This right angle connector has a gold inner and outer contact plating. Our PCB RF connector has a length of 0.542 inches, a width of 0.24 inches, and a weight of 0.006 lbs. Our BMMA right angle male PCB connector is part of RF, microwave, and millimeter wave components in stock for worldwide shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.

Expand

SKU FMCN5140 FMCN5140 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Polarity

Standard

Connector Series

BMMA

Connector Gender

Male

Impedance

50 Ohm

Body Style

Right Angle

Attachment Method

Solder

Mount Method

None

Minimum Frequency

DC

Maximum Frequency

26.5 GHz

Termination Type

PCB

Interface Type 1

Thru Hole

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
