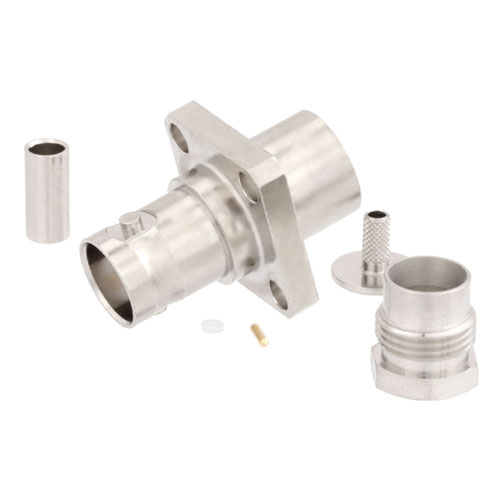

BNC Female (Jack) Connector 4 Hole Flange (Panel Mount) For RG316, RG188, RG174 Cable IP67 Rated, Clamp/Solder,

BNC Female (Jack) Connector 4 Hole Flange (Panel Mount) For RG316, RG188, RG174 Cable IP67 Rated, Clamp/Solder,

Name: BNC Female (Jack) Connector 4 Hole Flange (Panel Mount) For RG316, RG188, RG174 Cable IP67 Rated, Clamp/Solder,
Brand: Fairview Microwave, Inc.
SKU: SC6002
Price: 9.99 USD
Availability: OutOfStock

SC6002 BNC female 4 hole flange coaxial connector from Fairview Microwave has an interface type of RG316, RG188, RG174 and a 50 Ohm impedance. This BNC female 4 hole flange connector uses shield attac...

SC6002 BNC female 4 hole flange coaxial connector from Fairview Microwave has an interface type of RG316, RG188, RG174 and a 50 Ohm impedance. This BNC female 4 hole flange connector uses shield attachment of clamp/solder attachment for the contact. Our female BNC coaxial connector provides a minimum frequency of DC and a maximum frequency of 2 GHz.BNC female 4 hole flange coaxial RF connector has a ptfe dielectric type and a VSWR of 1.25:1. This Fairview Microwave BNC coaxial connector has a brass body with nickel plating. Our SC6002 BNC connector uses beryllium copper contact and a nickel plating material. This BNC female 4 hole flange coaxial RF connector is RoHS and IP67 rated compliant, you can find this BNC female 4 hole flange coaxial IP67 rated connector datasheet specifications above.Fairview Microwave female BNC 4 hole flange connector purchases will ship the same day. Our 4 hole flange BNC female RG316 / RG188 / RG174 connector is part of over one million RF, microwave and millimeter wave components in stock and ready for same-day shipment worldwide. We also build custom BNC cable connector assemblies that will ship quickly from our location.

Expand

SKU SC6002 SC6002 -0

Product no longer available

This product has been discontinued and has run out of stock. We apologize for the inconvenience.

Please contact our customer service team for assistance in identifying the appropriate replacment part for your application.

Key specifications

Datasheet

View All

Polarity

Standard

Connector Series

BNC

Connector Gender

Female

Impedance

50 Ohm

Body Style

Straight

Attachment Method

Clamp/Solder

Mount Method

4 Hole Flange

Minimum Frequency

DC

Maximum Frequency

2 GHz

Termination Type

Coax

Interface Type 1

RG316

Interface Type 2

RG188

Interface Type 3

RG174

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (06/2024) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

low-pim-2.2-5-female-ra-4.3-10-male-cable-fm-1-4-sfhc-coax-fmca2368-12 Fairview Microwave FMCA2368-12

16 available

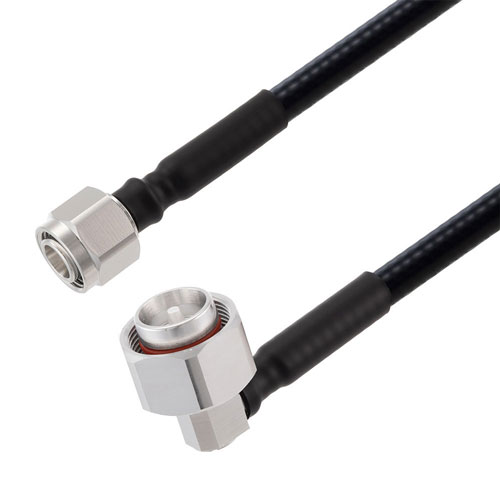

Low PIM 2.2-5 Female to RA 4.3-10 Male Cable 1/4 inch Superflexible Coax in 12 Inch

Compare

SKU FMCA2368-12

Starting price $105.99

Estimated shipment Next Business Day

low-pim-2.2-5-female-4.3-10-male-cable-fm-1-4-sfhc-coax-fmca2367-36 Fairview Microwave FMCA2367-36

19 available

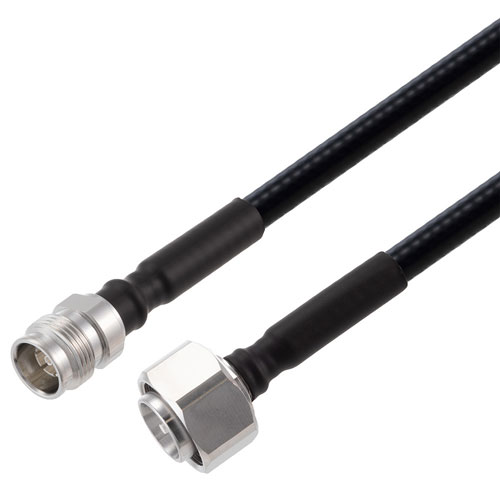

Low PIM 2.2-5 Female to 4.3-10 Male Cable 1/4 inch Superflexible Coax in 36 Inch

Compare

SKU FMCA2367-36

Starting price $113.99

Estimated shipment Next Business Day

low-pim-2.2-5-male-4.3-10-female-cable-fm-1-4-sfhc-coax-fmca2364-36 Fairview Microwave FMCA2364-36

Call us

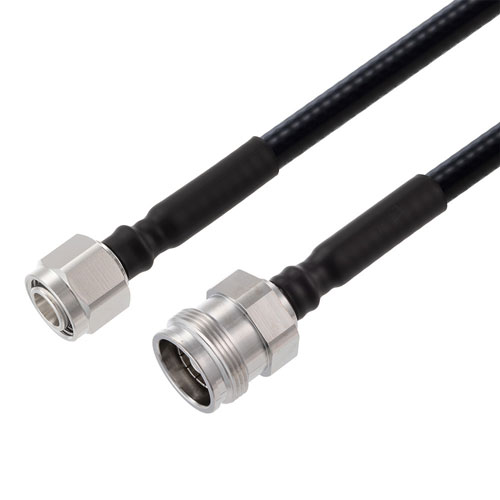

Low PIM 2.2-5 Male to 4.3-10 Female Cable 1/4 inch Superflexible Coax in 36 Inch

Compare

SKU FMCA2364-36

Starting price $115.99

Estimated shipment Call Us

low-pim-2.2-5-male-4.3-10-female-cable-fm-1-4-sfhc-coax-fmca2365-36 Fairview Microwave FMCA2365-36

Call us

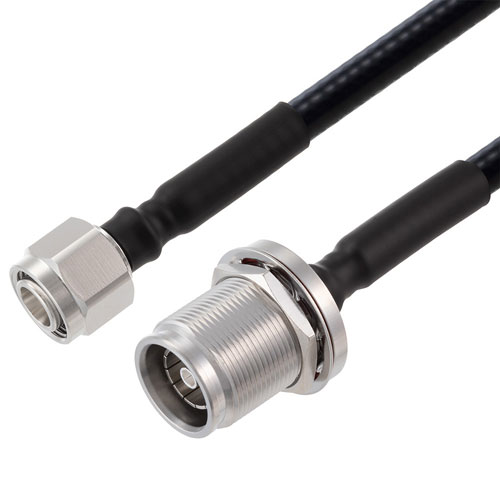

Low PIM 2.2-5 Male to 4.3-10 Female Bulkhead Cable 1/4 inch Superflexible Coax in 36 Inch
