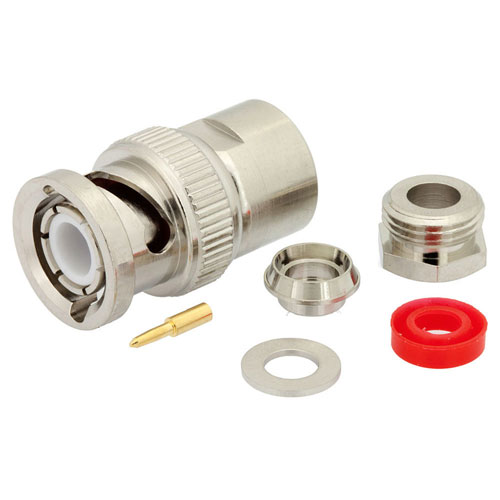

BNC Male (Plug) Connector for RG58, RG55, RG141, RG142, RG223, RG400, RG303, LMR-195 Cable, Clamp/Solder

BNC Male (Plug) Connector for RG58, RG55, RG141, RG142, RG223, RG400, RG303, LMR-195 Cable, Clamp/Solder

Name: BNC Male (Plug) Connector for RG58, RG55, RG141, RG142, RG223, RG400, RG303, LMR-195 Cable, Clamp/Solder
Brand: Fairview Microwave, Inc.
SKU: FMCN1566
Price: 13.99 USD
Availability: InStock

FMCN1566 BNC male coaxial connector from Fairview Microwave has an interface type of RG58, RG55, RG141, RG142, RG223, RG400, RG303, LMR-195 and a 50 Ohm impedance. This BNC male connector uses shield ...

FMCN1566 BNC male coaxial connector from Fairview Microwave has an interface type of RG58, RG55, RG141, RG142, RG223, RG400, RG303, LMR-195 and a 50 Ohm impedance. This BNC male connector uses shield attachment of clamp/solder attachment for the contact. Our male BNC coaxial connector provides a minimum frequency of DC and a maximum frequency of 4 GHz.BNC male coaxial RF connector has a ptfe dielectric type and a VSWR of 1.5:1. This Fairview Microwave BNC coaxial connector has a brass body with nickel plating. Our FMCN1566 BNC connector uses brass contact and a nickel plating material. This BNC male coaxial RF connector is RoHS compliant, you can find this BNC male coaxial connector datasheet specifications above.Fairview Microwave male BNC connector purchases will ship the same day. Our BNC male RG58 / RG55 / RG141 / RG142 / RG223 / RG400 / RG303 / LMR-195 connector is part of over one million RF, microwave and millimeter wave components in stock and ready for same-day shipment worldwide. We also build custom BNC cable connector assemblies that will ship quickly from our location.* LMR™ is a trademark of Times Microwave Systems.

Expand

SKU FMCN1566 FMCN1566 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Polarity

Standard

Connector Series

BNC

Connector Gender

Male

Impedance

50 Ohm

Body Style

Straight

Attachment Method

Clamp/Solder

Mount Method

None

Minimum Frequency

DC

Maximum Frequency

4 GHz

Termination Type

Coax

Interface Type 1

RG58

Interface Type 2

RG55

Interface Type 3

RG141

Interface Type 4

RG142

Interface Type 5

RG223

Interface Type 6

RG400

Interface Type 7

RG303

Interface Type 8

LMR-195

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (01/2025) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

bnc-male-rg58-rg55-rg141-rg142-rg223-rg400-rg303-lmr-195-connector-fmcn1568 Fairview Microwave FMCN1568

15 available

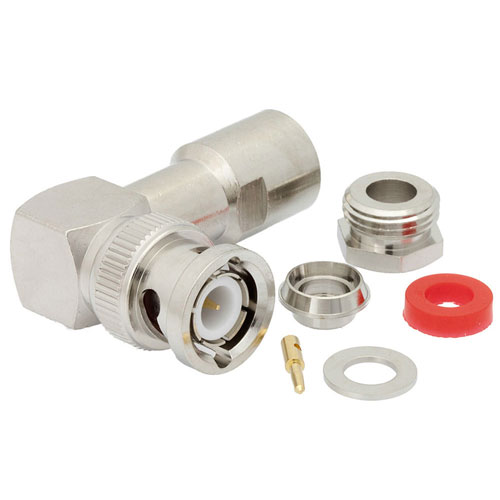

Right Angle BNC Male (Plug) Connector for RG58, RG55, RG141, RG142, RG223, RG400, RG303, LMR-195 Cable, Clamp/Solder

Compare

SKU FMCN1568

Starting price $29.79

Estimated shipment Tomorrow

bnc-female-rg58-rg55-rg141-rg142-rg223-rg400-rg303-lmr-195-connector-fmcn1569 Fairview Microwave FMCN1569

70 available

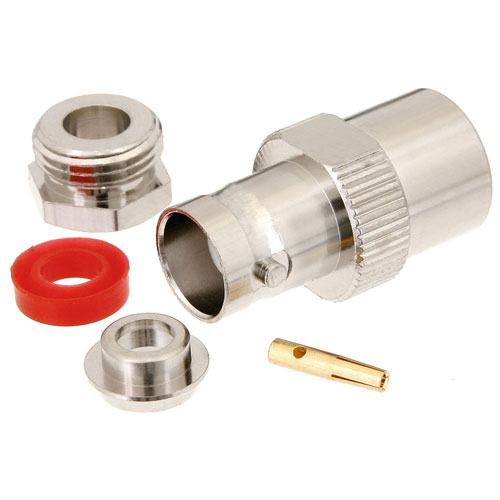

BNC Female (Jack) Connector for RG58, RG55, RG141, RG142, RG223, RG400, RG303, LMR-195 Cable, Clamp/Solder

Compare

SKU FMCN1569

Starting price $16.39

Estimated shipment Tomorrow

bnc-male-rg55-rg141-rg142-rg223-rg400-connector-fmcn1567 Fairview Microwave FMCN1567

Call us

BNC Male (Plug) Connector for RG55, RG141, RG142, RG223, RG400 Cable, Crimp/Solder

Compare

SKU FMCN1567

Starting price $9.89

Estimated shipment Call Us

bnc-male-standard-rg55-rg58-rg141-connector-sc6038 Fairview Microwave SC6038

28 available

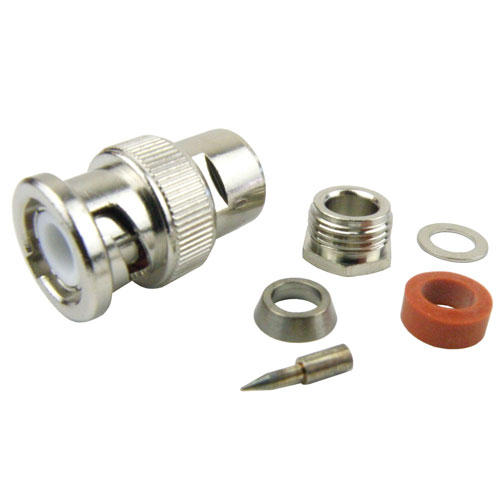

BNC Male (Plug) Connector For RG55, RG58, RG141 Cable, Clamp/Solder
