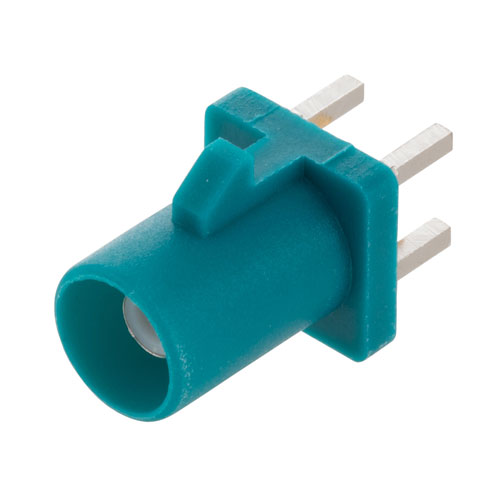

RF PCB Connector, FAKRA Plug Connector Solder Attachment Thru Hole PCB, Water Blue Color

RF PCB Connector, FAKRA Plug Connector Solder Attachment Thru Hole PCB, Water Blue Color

FMCN44242 FAKRA plug PCB connector has an interface type of FAKRA plug which is compatible with thru hole cables and a 50 Ohm impedance. Fairview Microwave's FAKRA plug connector uses solder as an ...

FMCN44242 FAKRA plug PCB connector has an interface type of FAKRA plug which is compatible with thru hole cables and a 50 Ohm impedance. Fairview Microwave's FAKRA plug connector uses solder as an attachment method. Our plug FAKRA PCB connector operates at a minimum frequency of DC and a maximum frequency of 4 GHz. Our high-quality radio frequency co-axial connector is used for general purpose test and printed circuit board applications. This FAKRA plug RF connector is stocked to be readily available for same business day shipment. The Fairview Microwave FAKRA plug PCB connector has a PTFE dielectric type and a VSWR of 1.3:1. Fairview Microwave's FAKRA PCB connector has a plastic body. Our FMCN44242 connector uses phosphor bronze inner contact and nickel outer contact. This push-on RF connector can operate at temperatures ranging from -40 to +85 degrees C. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings. Fairview Microwave RF connector block has a maximum inner conductor and outer conductor resistance of 6 mOhms and 2.5 mOhms respectively. This FAKRA connector has a gold inner contact plating. Fairview Microwave’s FAKRA plug connector has a maximum operating voltage of 335 Vrms and a dielectric withstanding voltage of 1,000 Vrms. This Fairview Microwave plug FAKRA connector will ship the same business day as purchased. Our FAKRA plug connector is part of our RF, microwave and millimeter wave components in stock for worldwide shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.

Expand

SKU FMCN44242 FMCN44242 WB -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Polarity

Standard

Connector Series

FAKRA

Connector Gender

Plug

Impedance

50 Ohm

Body Style

Straight

Attachment Method

Solder

Mount Method

None

Minimum Frequency

DC

Maximum Frequency

4 GHz

Termination Type

PCB

Interface Type 1

Thru Hole

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

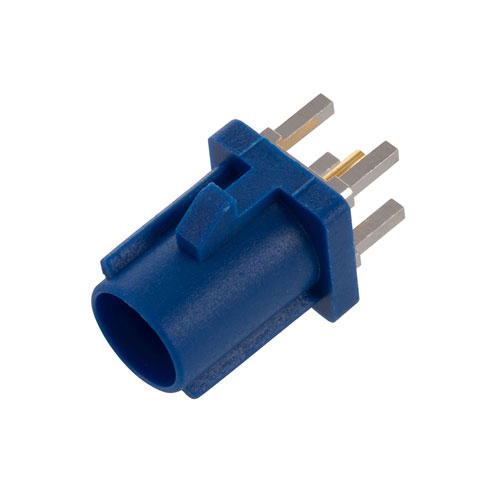

fakra-plug-thru-hole-pcb-connector-fmcn44237 Fairview Microwave FMCN44237

5 available

RF PCB Connector, FAKRA Plug Connector Solder Attachment Thru Hole PCB, Blue Color

Compare

SKU FMCN44237

Starting price $9.99

Estimated shipment Today

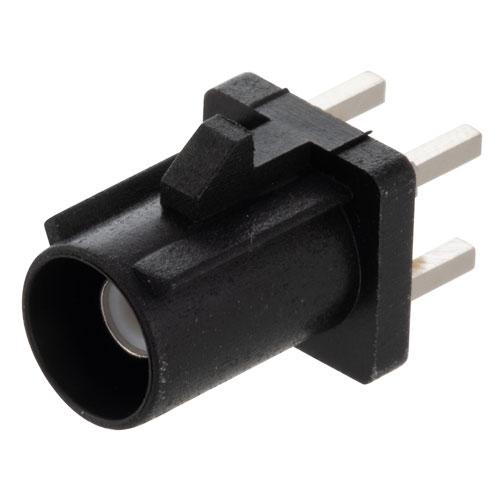

fakra-plug-thru-hole-pcb-connector-fmcn44235 Fairview Microwave FMCN44235

1 available

RF PCB Connector, FAKRA Plug Connector Solder Attachment Thru Hole PCB, Black Color

Compare

SKU FMCN44235

Starting price $10.39

Estimated shipment Today

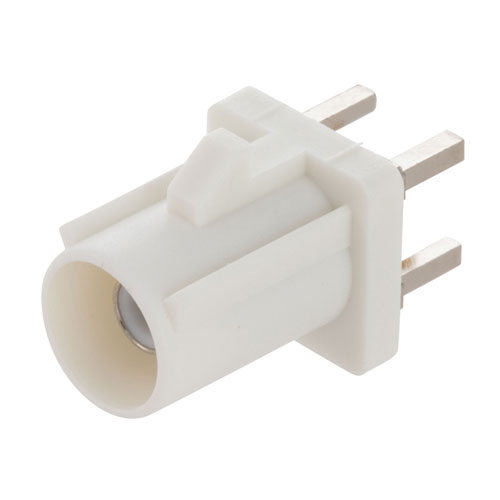

fakra-plug-thru-hole-pcb-connector-fmcn44236 Fairview Microwave FMCN44236

4 available

RF PCB Connector, FAKRA Plug Connector Solder Attachment Thru Hole PCB, White Color

Compare

SKU FMCN44236

Starting price $4.89

Estimated shipment Today

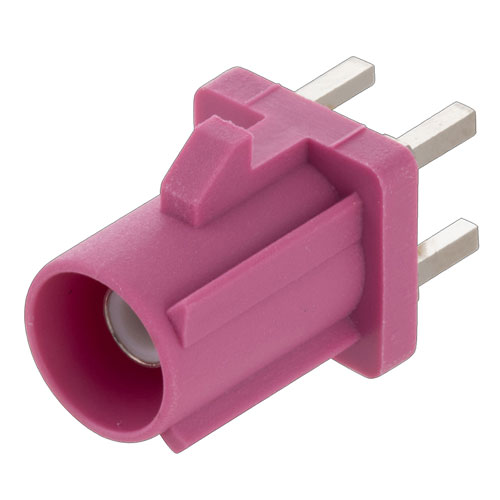

fakra-plug-thru-hole-pcb-connector-fmcn44239 Fairview Microwave FMCN44239
