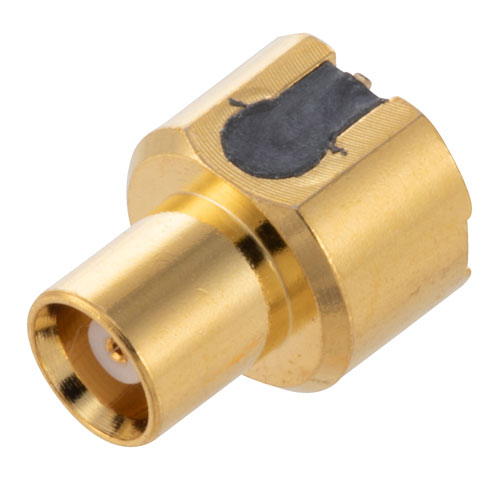

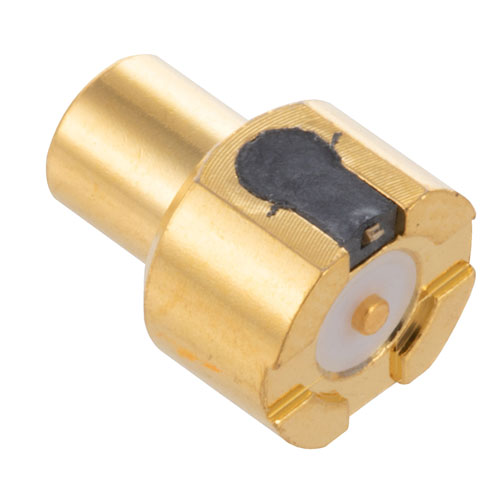

RF PCB Connector, MCX Jack Connector Solder Attachment Surface Mount PCB, Switching Connector

RF PCB Connector, MCX Jack Connector Solder Attachment Surface Mount PCB, Switching Connector

FMCN44257 MCX jack PCB connector has an interface type of MCX jack which is compatible with surface mount cables and a 50 Ohm impedance. Fairview Microwave's MCX jack connector uses solder as an at...

FMCN44257 MCX jack PCB connector has an interface type of MCX jack which is compatible with surface mount cables and a 50 Ohm impedance. Fairview Microwave's MCX jack connector uses solder as an attachment method. Our jack MCX PCB connector operates at a minimum frequency of DC and a maximum frequency of 3 GHz. Our high-quality radio frequency co-axial connector is used for general purpose test and printed circuit board applications. This MCX jack RF connector is stocked to be readily available for same business day shipment. The Fairview Microwave MCX jack PCB connector has a teflon/lcp dielectric type and a VSWR of 1.5:1. Fairview Microwave's MCX PCB connector has a brass body with gold plating. Our FMCN44257 connector uses brass/beryllium copper contact. This push-on RF connector can operate at temperatures ranging from -55 to +155 degrees C. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings. Our high-quality FMCN44257 connector features a 3µ in. minimum body plating specification. This MCX connector has a gold inner contact plating. Fairview Microwave’s MCX jack connector has a maximum operating voltage of 335 Vrms and a dielectric withstanding voltage of 1,000 Vrms. This Fairview Microwave jack MCX connector will ship the same business day as purchased. Our MCX jack connector is part of our RF, microwave and millimeter wave components in stock for worldwide shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.

Expand

SKU FMCN44257 FMCN44257 -0

QTY available 5

Price $48.99

Quantity Price

1-9$48.99

10-24$47.03

25-99$45.07

100-249$43.11

250-499$41.15

500+$41.15Please call for quote

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Polarity

Standard

Connector Series

MCX

Connector Gender

Jack

Impedance

50 Ohm

Body Style

Straight

Attachment Method

Solder

Mount Method

None

Minimum Frequency

DC

Maximum Frequency

3 GHz

Termination Type

PCB

Interface Type 1

Surface Mount

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
