RA MCX Jack Commercial Grade PCB Connector Thru Hole Solder Attachment

RA MCX Jack Commercial Grade PCB Connector Thru Hole Solder Attachment

FMCN5177 MCX jack right angle PCB connector has an interface type of MCX jack which is compatible with thru hole cables and has an impedance of 50 Ohms. Fairview Microwave’s MCX jack connector uses so...

FMCN5177 MCX jack right angle PCB connector has an interface type of MCX jack which is compatible with thru hole cables and has an impedance of 50 Ohms. Fairview Microwave’s MCX jack connector uses solder as an attachment method. Our jack MCX right angle PCB connector operates at a maximum frequency of 6 GHz. Our high-quality radio frequency co-axial connector is used for general purpose test and printed circuit board applications. This MCX jack RF connector is stocked to be readily available for same business day shipment and can be expertly assembled using our online cable creator.The Fairview Microwave right angle MCX jack PCB connector has a PTFE dielectric type and a VSWR of 1.3:1. Fairview Microwave’s MCX PCB connector has a brass body with gold plating. Our FMCN5177 right angle connector uses beryllium copper contact. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings. Our MCX jack RF connector with PCB termination has a 0.4 dB maximum insertion loss. This right angle MCX connector has a gold inner contact plating. Our PCB RF connector has a length of 0.37 inches, a width of 0.32 inches, and a weight of 0.2 lbs. Our MCX right angle jack PCB connector is part of RF, microwave, and millimeter wave components in stock for worldwide shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.

Expand

SKU FMCN5177 FMCN5177 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Polarity

Standard

Connector Series

MCX

Connector Gender

Jack

Impedance

50 Ohm

Body Style

Right Angle

Attachment Method

Solder

Mount Method

None

Minimum Frequency

DC

Maximum Frequency

6 GHz

Termination Type

PCB

Interface Type 1

Thru Hole

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

mcx-jack-thru-hole-pcb-connector-fmcn5178 Fairview Microwave FMCN5178

10 available

MCX Jack Commercial Grade PCB Connector Thru Hole Solder Attachment

Compare

SKU FMCN5178

Starting price $5.39

Estimated shipment Tomorrow

mcx-jack-end-launch-pcb-connector-fmcn5180 Fairview Microwave FMCN5180

10 available

MCX Jack Commercial Grade PCB Connector End Launch Solder Attachment

Compare

SKU FMCN5180

Starting price $6.16

Estimated shipment Tomorrow

mcx-jack-thru-hole-pcb-connector-fmcn44270 Fairview Microwave FMCN44270

19 available

RF PCB Connector, MCX Jack Connector Solder Attachment Thru Hole PCB, .200 inch x .052 inch Hole Spacing

Compare

SKU FMCN44270

Starting price $21.39

Estimated shipment Tomorrow

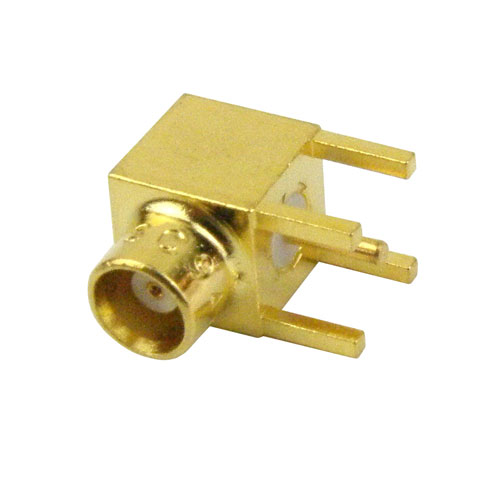

mcx-jack-standard-thru-hole-pcb-connector-sc9491 Fairview Microwave SC9491
