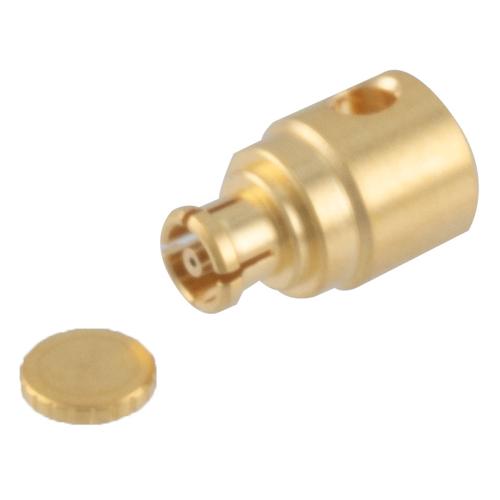

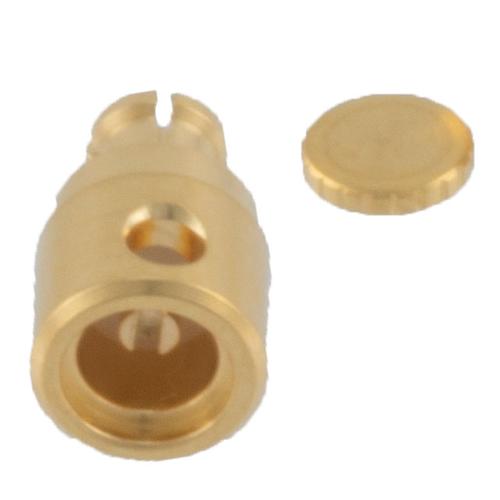

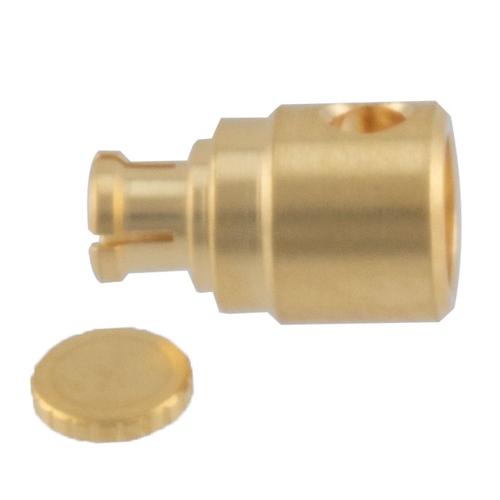

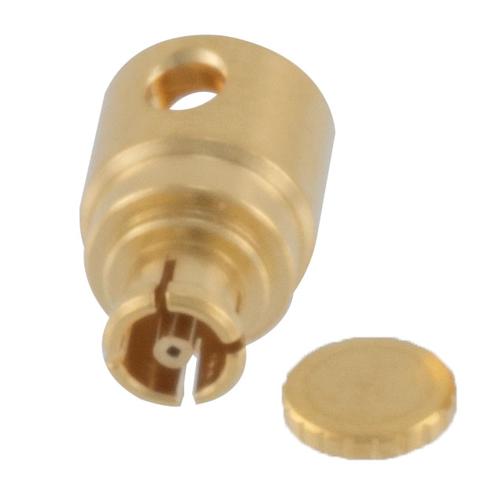

RA Mini SMP Female Connector Solder Attachment for FM-SR047ALTN-COIL, FM-SR047CU-COIL, FM-SR047CUTN-COIL, .047 Semi-Rigid Cable

RA Mini SMP Female Connector Solder Attachment for FM-SR047ALTN-COIL, FM-SR047CU-COIL, FM-SR047CUTN-COIL, .047 Semi-Rigid Cable

FMCN51283 Mini SMP female right angle coaxial connector has an interface type of Mini SMP female FM-SR047ALTN-COIL, FM-SR047CU-COIL, FM-SR047CUTN-COIL and .047 semi-rigid and has an impedance of 50 ...

FMCN51283 Mini SMP female right angle coaxial connector has an interface type of Mini SMP female FM-SR047ALTN-COIL, FM-SR047CU-COIL, FM-SR047CUTN-COIL and .047 semi-rigid and has an impedance of 50 Ohm. Fairview Microwave's Mini SMP female connector uses solder as an attachment method. Our female Mini SMP right angle coaxial connector operates at a maximum frequency of 11 GHz. This Mini SMP female RF connector is stocked to be readily available for same business day shipment.The Fairview Microwave right angle Mini SMP female (jack) coaxial connector has a teflon dielectric type and a VSWR of 1.2:1. Fairview Microwave's Mini SMP coaxial connector has a beryllium copper body with gold over nickel plating. Our FMCN51283 right angle connector uses beryllium copper contact. This push-on RF connector can operate at temperatures ranging from -65 to +165 degrees C. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings.Fairview Microwave standard RF connector block has a maximum inner conductor and outer conductor resistance of 6 mOhms and 2 mOhms respectively. Our Mini SMP female RF connector with coaxial termination has a 0.424 dB maximum insertion loss. This right angle Mini SMP connector has a gold over nickel inner contact plating. Our coaxial RF connector has a length of 0.155512 inches, a width of 0.155512 inches, and a weight of 0.015 lbs. This connector comes with a minimum insulation resistance of 5,000 MOhms. This Fairview Microwave standard right angle female Mini SMP connector will ship the same business day as purchased. Our Mini SMP right angle female connector is part of RF, microwave and millimeter wave components in stock for worldwide shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.

Expand

SKU FMCN51283 FMCN51283 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Polarity

Standard

Connector Series

Mini SMP

Connector Gender

Female

Impedance

50 Ohm

Body Style

Right Angle

Attachment Method

Solder

Mount Method

None

Minimum Frequency

DC

Maximum Frequency

11 GHz

Termination Type

Coax

Interface Type 1

FM-SR047ALTN-COIL

Interface Type 2

FM-SR047CU-COIL

Interface Type 3

FM-SR047CUTN-COIL

Interface Type 4

.047 Semi-Rigid

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (06/2024) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

mini-smp-female-fm-sr047altn-coil-fm-sr047cu-coil-fm-sr047cutn-coil-.047-semi-rigid-connector-fmcn51281 Fairview Microwave FMCN51281

6 available

Mini SMP Female Connector Solder Attachment for FM-SR047ALTN-COIL, FM-SR047CU-COIL, FM-SR047CUTN-COIL, .047 Semi-Rigid Cable

Compare

SKU FMCN51281

Starting price $14.89

Estimated shipment Tomorrow

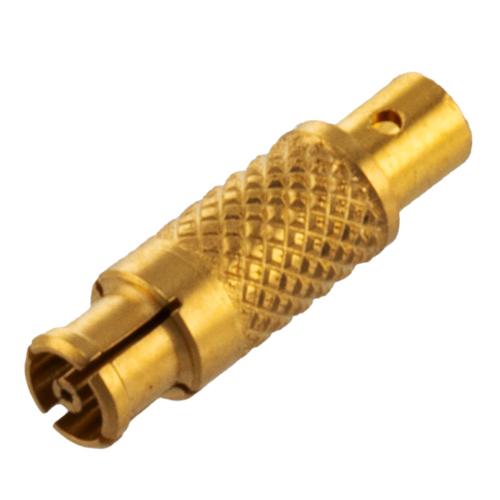

mini-smp-female-fm-sr047altn-coil-fm-sr047cu-coil-fm-sr047cutn-coil-.047-semi-rigid-connector-fmcn51282 Fairview Microwave FMCN51282

12 available

Mini SMP Female Connector Solder Attachment for FM-SR047ALTN-COIL, FM-SR047CU-COIL, FM-SR047CUTN-COIL, .047 Semi-Rigid Cable

Compare

SKU FMCN51282

Starting price $54.15

Estimated shipment Tomorrow

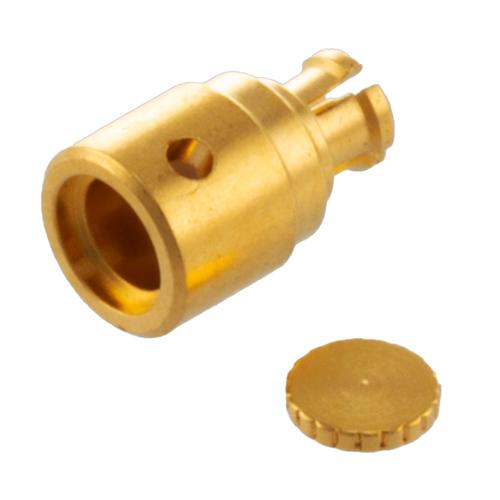

mini-smp-female-fm-sr034cu-st-.034-semi-rigid-connector-fmcn51270 Fairview Microwave FMCN51270

10 available

RA Mini SMP Female Connector Solder Attachment for FM-SR034CU-ST, .034 Semi-Rigid Cable

Compare

SKU FMCN51270

Starting price $28.00

Estimated shipment Tomorrow

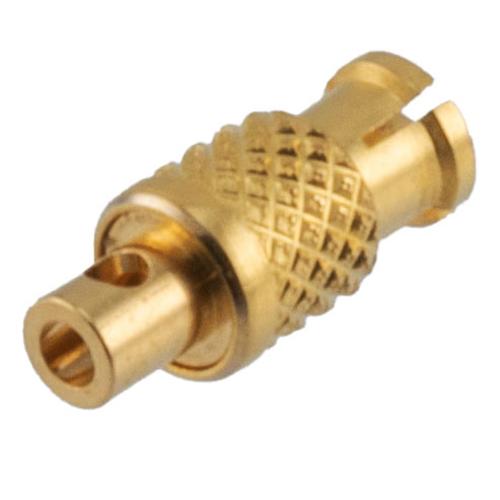

mini-smp-female-fm-sr034cu-st-.034-semi-rigid-connector-fmcn51269 Fairview Microwave FMCN51269
