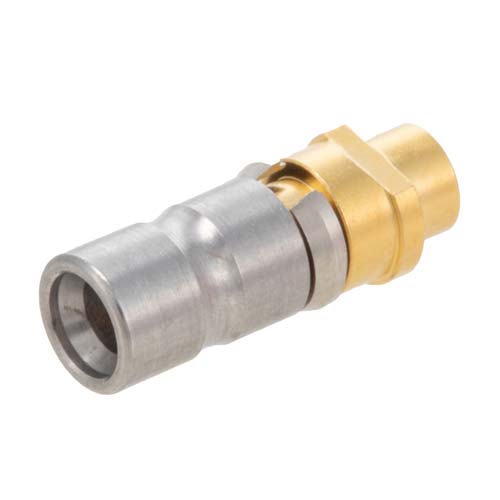

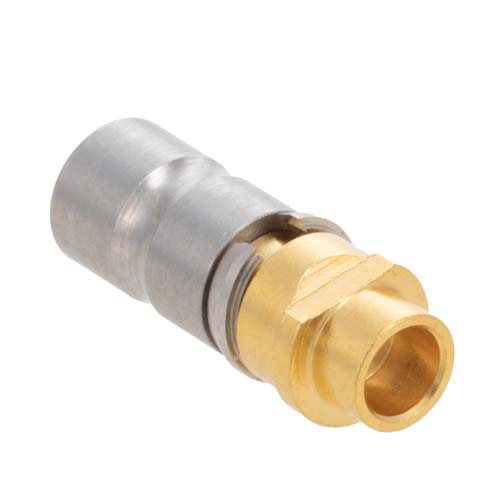

Mini SMP (SMPM) Male Smooth Bore VITA 67.3 Connector Solder Attachment for FM-F086, FM-F086HF, FM-F086LL, FM-F086FLX

Mini SMP (SMPM) Male Smooth Bore VITA 67.3 Connector Solder Attachment for FM-F086, FM-F086HF, FM-F086LL, FM-F086FLX

FMCN49820 Mini SMP male coaxial smooth bore connector has an interface type of Mini SMP male which is compatible with FM-F086, FM-F086HF, FM-F086LL, and FM-F086FLX cables and a 50 Ohm impedance. FMCN...

FMCN49820 Mini SMP male coaxial smooth bore connector has an interface type of Mini SMP male which is compatible with FM-F086, FM-F086HF, FM-F086LL, and FM-F086FLX cables and a 50 Ohm impedance. FMCN49820 VITA 67 RF connector has a connector body style and does not require any special adapter and is designed for side-by-side implementation with VITA 46 hardware. Fairview Microwave's Mini SMP male connector uses solder as an attachment method. Our male Mini SMP coaxial connector operates at a minimum frequency of DC and a maximum frequency of 40 GHz. This radio frequency connector is suitable for SIGINT, EWR, ground base station, communication systems, avionics, and radar system applications. This Mini SMP male RF connector is stocked to be readily available for same business day shipment.The Fairview Microwave Mini SMP male coaxial smooth bore connector has a PTFE dielectric type and a VSWR of 1.4:1. Our VITA 67 radio frequency connector are designed for 3U format within the OpenVPX architecture utilizing existing, and proven SMPM interfaces and provides coaxial interconnections on VPX platforms. Fairview Microwave's Mini SMP coaxial connector has a passivated stainless steel body. Our FMCN49820 connector uses beryllium copper contact. This push-on RF connector can operate at temperatures ranging from -65 to +165 degrees C. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings.This Mini SMP connector has a gold inner contact plating. This Fairview Microwave VITA 67 male Mini SMP connector will ship the same business day as purchased. Our Mini SMP male connector is part of our RF, microwave and millimeter wave components in stock for worldwide shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.

Expand

SKU FMCN49820 FMCN49820 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Polarity

Standard

Connector Series

Mini SMP

Connector Gender

Male

Impedance

50 Ohm

Body Style

Straight

Attachment Method

Solder

Mount Method

None

Minimum Frequency

DC

Maximum Frequency

40 GHz

Termination Type

Coax

Interface Type 1

FM-F086

Interface Type 2

FM-F086HF

Interface Type 3

FM-F086LL

Interface Type 4

FM-F086FLX

Interface Type 5

FM-F086

Interface Type 6

FM-F086HF

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

mini-smp-female-fm-f086-fm-f086hf-fm-f086ll-fm-f086flx-connector-fmcn49816 Fairview Microwave FMCN49816

22 available

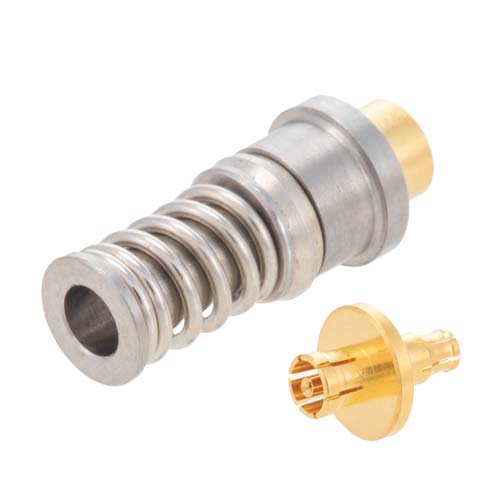

Mini SMP (SMPM) Female VITA 67.3 Connector Solder Attachment for FM-F086, FM-F086HF, FM-F086LL, FM-F086FLX

Compare

SKU FMCN49816

Starting price $115.99

Estimated shipment Today

mini-smp-male-smooth-bore-fm-f047-fm-f047hf-fm-f047ll-fm-f047flx-connector-fmcn49819 Fairview Microwave FMCN49819

15 available

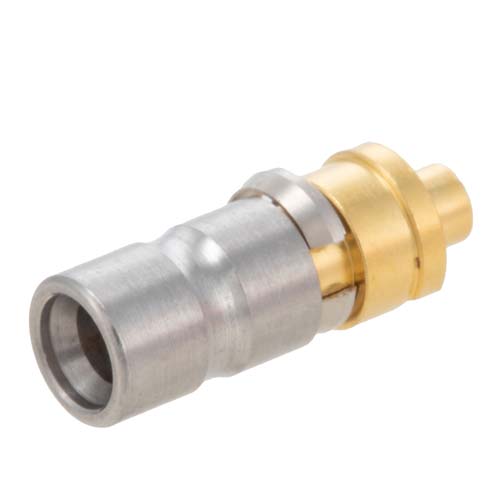

Mini SMP (SMPM) Male Smooth Bore VITA 67.3 Connector Solder Attachment for FM-F047, FM-F047HF, FM-F047LL, FM-F047FLX

Compare

SKU FMCN49819

Starting price $74.99

Estimated shipment Today

mini-smp-female-fm-f047-fm-f047hf-fm-f047ll-fm-f047flx-connector-fmcn49817 Fairview Microwave FMCN49817

16 available

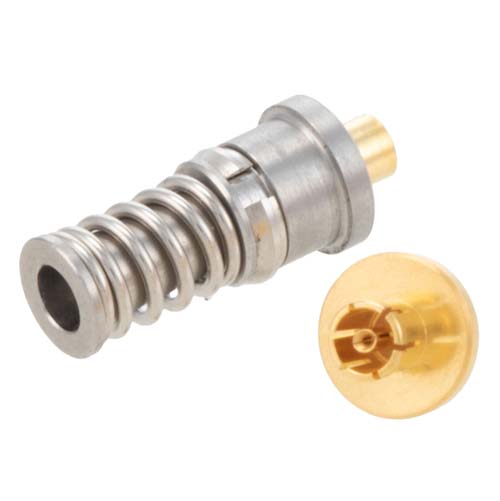

Mini SMP (SMPM) Female VITA 67.3 Connector Solder Attachment for FM-F047, FM-F047HF, FM-F047LL, FM-F047FLX

Compare

SKU FMCN49817

Starting price $119.99

Estimated shipment Today

mini-smp-male-pe-p047-pe-p047ll-pe-047sr-pe-sr047fl-pe-sr047al-connector-fmcn1539 Fairview Microwave FMCN1539

9 available

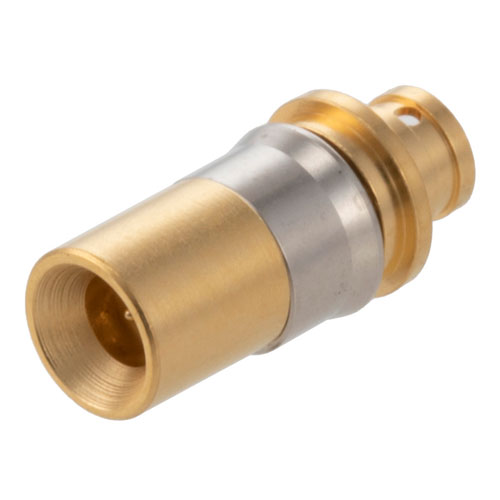

Mini SMP Male VITA 67 Connector Solder Attachment for FM-SR047CU, FM-SR047TB and FM-SR047ALTN Cable
