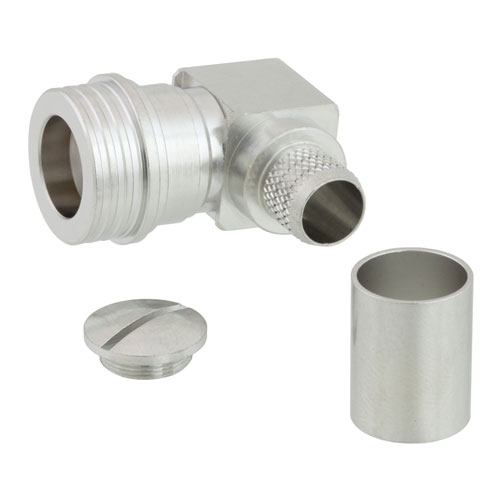

Right Angle QN Male (Plug) Snap-On Connector For LMR-400, LMR-400-DB Cable, Crimp/Solder

Right Angle QN Male (Plug) Snap-On Connector For LMR-400, LMR-400-DB Cable, Crimp/Solder

FMCN1101 RA QN male coaxial snap-on connector from Fairview Microwave has an interface type of LMR-400, LMR-400-DB and a 50 Ohm impedance. This QN male connector uses shield attachment of crimp/solder...

FMCN1101 RA QN male coaxial snap-on connector from Fairview Microwave has an interface type of LMR-400, LMR-400-DB and a 50 Ohm impedance. This QN male connector uses shield attachment of crimp/solder attachment for the contact. Our male QN right angle coaxial connector provides a minimum frequency of DC and a maximum frequency of 6 GHz.Right angle QN male coaxial snap-on RF connector has a ptfe dielectric type and a VSWR of 1.5:1. This Fairview Microwave QN coaxial connector has a brass body with silver plating. Our FMCN1101 QN RA connector uses brass contact and a silver plating material. This QN male right angle coaxial snap-on RF connector is RoHS compliant, you can find this QN male right angle coaxial snap-on connector datasheet specifications above.Fairview Microwave RA male QN connector purchases will ship the same day. Our QN right angle male LMR-400 / LMR-400-DB connector is part of over one million RF, microwave and millimeter wave components in stock and ready for same-day shipment worldwide. We also build custom QN cable connector assemblies that will ship quickly from our location.* LMR™ is a trademark of Times Microwave Systems.

Expand

SKU FMCN1101 FMCN1101 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Polarity

Standard

Connector Series

QN

Connector Gender

Male

Impedance

50 Ohm

Body Style

Right Angle

Attachment Method

Crimp/Solder

Mount Method

None

Minimum Frequency

DC

Maximum Frequency

6 GHz

Termination Type

Coax

Interface Type 1

LMR-400

Interface Type 2

LMR-400-DB

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (06/2024) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99
