SHV Male (Plug) Connector Crimp/Solder Attachment for RG55, RG142, RG223, RG400 Cable

SHV Male (Plug) Connector Crimp/Solder Attachment for RG55, RG142, RG223, RG400 Cable

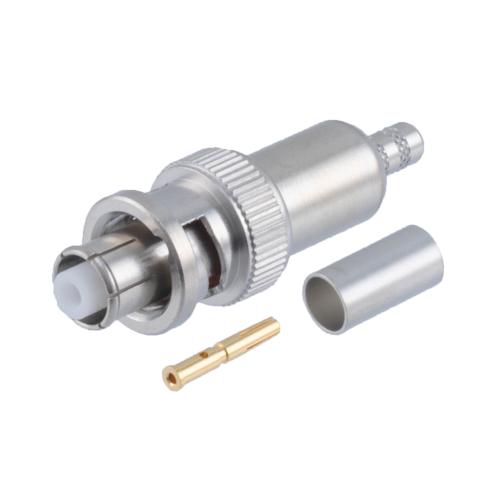

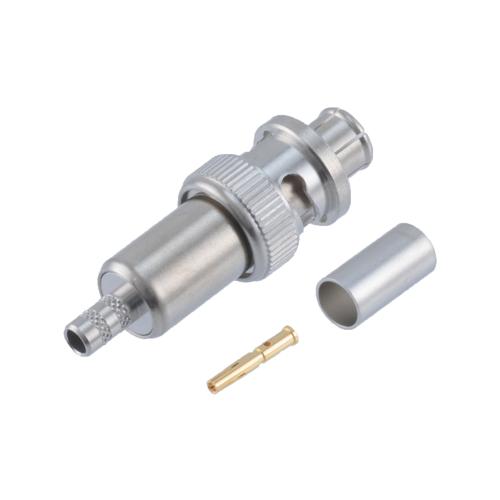

FMCN5164 SHV male coaxial connector has an interface type of SHV male which is compatible with RG55, RG142, RG223 and RG400 cables and has an impedance of 50 Ohms. Fairview Microwave's SHV male connec...

FMCN5164 SHV male coaxial connector has an interface type of SHV male which is compatible with RG55, RG142, RG223 and RG400 cables and has an impedance of 50 Ohms. Fairview Microwave's SHV male connector uses crimp/solder as an attachment method. Our male SHV coaxial connector operates at a maximum frequency of 300 MHz. This SHV male RF connector is stocked to be readily available for same business day shipment and can be expertly assembled using our online cable creator. Fairview Microwave's SHV coaxial connector has a brass body with copper-tin-zinc alloy plating. Our FMCN5164 connector uses a phosphor bronze inner contact and a brass outer contact. This RF connector can operate at temperatures ranging from -65 to +165 degrees C. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings.Fairview Microwave standard RF connector block has a maximum inner conductor and outer conductor resistance of 2 mOhms and 1.5 mOhms respectively. The radio frequency connector is made from brass along with a contact life of 500 cycles or more. This SHV connector has a gold over nickel over copper inner contact plating and a copper-tin-zinc alloy outer contact plating. Fairview Microwave’s standard SHV male connector has a maximum operating voltage of 3,500 Vrms and a dielectric withstanding voltage of 5,000 Vrms. Our coaxial RF connector has a length of 1.756 inches, a width of 0.571 inches, and a weight of 0.04 lbs. This radio frequency standard coaxial connector comes with copper-tin-zinc alloy plated brass washer. Our SHV male coaxial connector is part of RF, microwave, and millimeter wave components in stock for worldwide shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.

Expand

SKU FMCN5164 FMCN5164 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Polarity

Standard

Connector Series

SHV

Connector Gender

Male

Impedance

50 Ohm

Body Style

Straight

Attachment Method

Crimp/Solder

Mount Method

None

Minimum Frequency

DC

Maximum Frequency

300 MHz

Termination Type

Coax

Interface Type 1

RG55

Interface Type 2

RG142

Interface Type 3

RG223

Interface Type 4

RG400
