SHV Plug Connector Clamp/Solder Attachment for RG58, RG55, RG141, RG142, RG223, RG400, RG303, LMR-195 Cable

SHV Plug Connector Clamp/Solder Attachment for RG58, RG55, RG141, RG142, RG223, RG400, RG303, LMR-195 Cable

FMCN45908 SHV coaxial connector has an interface type of SHV plug RG58, RG55, RG141, RG142, RG223, RG400, RG303, LMR-195 and a 50 Ohm impedance. Fairview Microwave SHV plug connector uses shield/...

FMCN45908 SHV coaxial connector has an interface type of SHV plug RG58, RG55, RG141, RG142, RG223, RG400, RG303, LMR-195 and a 50 Ohm impedance. Fairview Microwave SHV plug connector uses shield/contact clamp/solder as an attachment method. Our plug SHV coaxial connector provides a minimum frequency of DC and a maximum frequency of 300 MHz. The Fairview Microwave SHV plug coaxial connector has a VSWR of 1.3:1. The Fairview Microwave SHV coaxial connector has a brass body with nickel plating. Our FMCN45908 SHV connector uses brass contact material. This SHV plug coaxial RF connector is RoHS and REACH compliant. This SHV plug RF connector with coax termination and 50 Ohm impedance isdesigned to be used with RG58, RG55, RG141, RG142, RG223, RG400, RG303and LMR-195 cables. Our high-quality FMCN45908 connector features a 100 µinminimum body plating specification. This SHV connector has a gold inner contactplating. Fairview Microwave’s SHV plug connector has a maximum operatingvoltage of 1400 Vrms. Our SHV plug connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. For further information on similar products, our expert technical support and trained sales team can get you to the perfect RF connector as per your requirement.

Expand

SKU FMCN45908 FMCN45908 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Polarity

Standard

Connector Series

SHV

Connector Gender

Plug

Impedance

50 Ohm

Body Style

Straight

Attachment Method

Clamp/Solder

Mount Method

None

Minimum Frequency

DC

Maximum Frequency

300 MHz

Termination Type

Coax

Interface Type 1

RG58

Interface Type 2

RG55

Interface Type 3

RG141

Interface Type 4

RG142

Interface Type 5

RG223

Interface Type 6

RG400

Interface Type 7

RG303

Interface Type 8

LMR-195

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

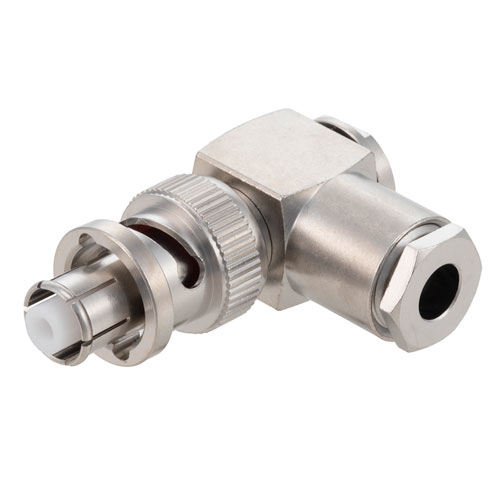

shv-plug-rg58-rg142-rg400-connector-fmcn45849 Fairview Microwave FMCN45849

18 available

RA SHV Plug Connector Clamp/Solder Attachment for RG58, RG142, RG400, LMR-195, LMR-195-FR, LMR-195-UF, LMR-LW195, PE-C195, RG141, RG223

Compare

SKU FMCN45849

Starting price $105.99

Estimated shipment Tomorrow

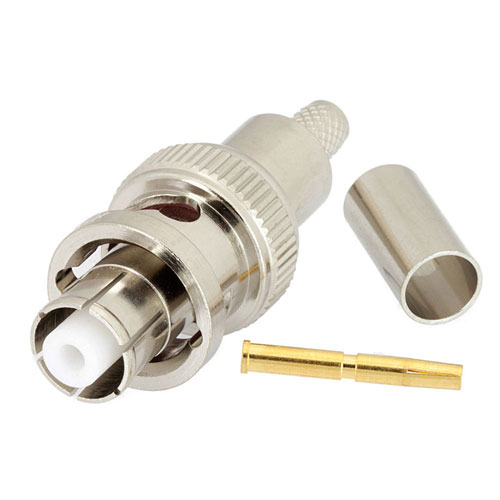

shv-plug-rg55-rg142-rg223-rg400-connector-fmcn1755 Fairview Microwave FMCN1755

5 available

SHV Plug Connector Crimp/Solder Attachment for RG55, RG142, RG223, RG400

Compare

SKU FMCN1755

Starting price $40.99

Estimated shipment Tomorrow

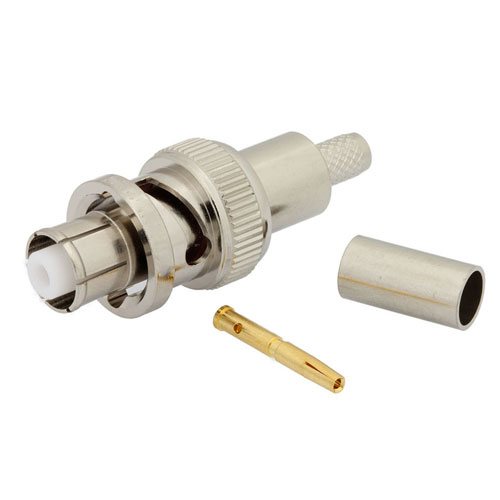

shv-plug-rg58-rg303-rg141-lmr-195-.195-connector-fmcn1362 Fairview Microwave FMCN1362

45 available

SHV Plug Connector Crimp/Solder Attachment for RG58, RG303, RG141, PE-C195, PE-P195, LMR-195, 0.195 inch

Compare

SKU FMCN1362

Starting price $65.99

Estimated shipment Tomorrow

shv-plug-rg58-rg303-rg141-lmr-195-connector-fmcn1371 Fairview Microwave FMCN1371

undefined

SHV Plug Connector Clamp/Solder Attachment For RG58, RG303, RG141, LMR-195 Cable

Compare

SKU FMCN1371

Starting price

Estimated shipment Call Us
