SMA Female (Jack) Connector Field Replaceable 2 Hole Flange (Panel Mount) 0.036 inch Pin, .481 inch Hole Spacing with Metal Contact Ring

SMA Female (Jack) Connector Field Replaceable 2 Hole Flange (Panel Mount) 0.036 inch Pin, .481 inch Hole Spacing with Metal Contact Ring

FMCN1639 SMA female 2 hole flange field replaceable contact connector from Fairview Microwave has an interface type of 0.036 inch pin and a impedance. This SMA female 2 hole flange connector uses shie...

FMCN1639 SMA female 2 hole flange field replaceable contact connector from Fairview Microwave has an interface type of 0.036 inch pin and a impedance. This SMA female 2 hole flange connector uses shield attachment of attachment for the contact. Our female SMA field replaceable contact connector provides a minimum frequency of DC and a maximum frequency of 27 GHz.SMA female 2 hole flange field replaceable contact RF connector has a ptfe dielectric type and a VSWR of 1.2:1. This Fairview Microwave SMA field replaceable contact connector has a passivated stainless steel body. Our FMCN1639 SMA connector uses beryllium copper contact. This SMA female 2 hole flange field replaceable contact RF connector is 0.036 inch pin, .481 inch hole spacing with metal contact ring compliant, you can find this SMA female 2 hole flange field replaceable contact 0.036 inch pin, .481 inch hole spacing with metal contact ring connector datasheet specifications above.Fairview Microwave female SMA 2 hole flange connector purchases will ship the same day. Our 2 hole flange SMA female 0.036 inch pin connector is part of over one million RF, microwave and millimeter wave components in stock and ready for same-day shipment worldwide. We also build custom SMA cable connector assemblies that will ship quickly from our location.

Expand

SKU FMCN1639 FMCN1639 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Polarity

Standard

Connector Series

SMA

Connector Gender

Female

Body Style

Straight

Attachment Method

Field Replaceable

Mount Method

2 Hole Flange

Minimum Frequency

DC

Maximum Frequency

27 GHz

Termination Type

Field Replaceable Contact

Interface Type 1

0.036 inch Pin

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (06/2024) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

sma-female-0.036-pin-connector-fmcn1633 Fairview Microwave FMCN1633

Call us

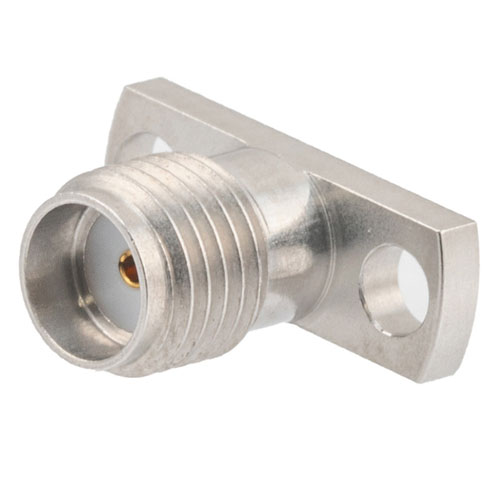

SMA Female (Jack) Connector Field Replaceable 2 Hole Flange (Panel Mount) 0.036 inch Pin, .400 inch Hole Spacing with Metal Contact Ring

Compare

SKU FMCN1633

Starting price $12.99

Estimated shipment Call Us

sma-female-0.036-pin-connector-fmcn1627 Fairview Microwave FMCN1627

1 available

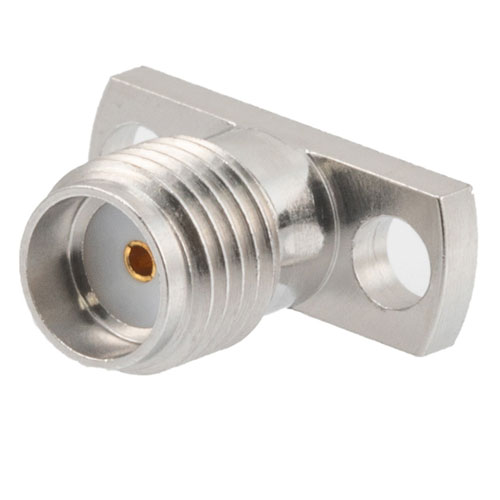

SMA Female (Jack) Connector Field Replaceable 2 Hole Flange (Panel Mount) 0.036 inch Pin, .355 inch Hole Spacing with Metal Contact Ring

Compare

SKU FMCN1627

Starting price $35.59

Estimated shipment Tomorrow

sma-female-0.036-pin-connector-fmcn1615 Fairview Microwave FMCN1615

Call us

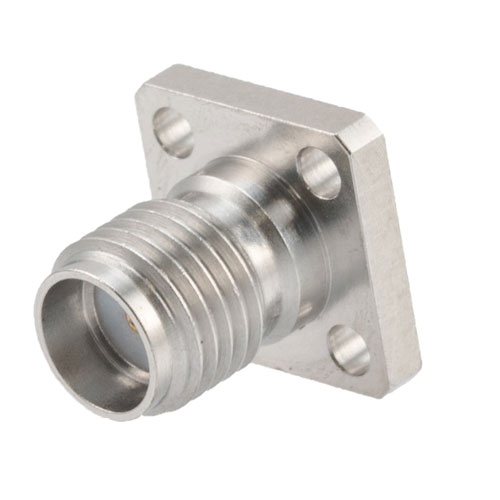

SMA Female (Jack) Connector Field Replaceable 4 Hole Flange (Panel Mount) 0.036 inch Pin, .250 inch Hole Spacing with Metal Contact Ring

Compare

SKU FMCN1615

Starting price $8.02

Estimated shipment Call Us

sma-female-0.036-pin-connector-fmcn1621 Fairview Microwave FMCN1621

2 available

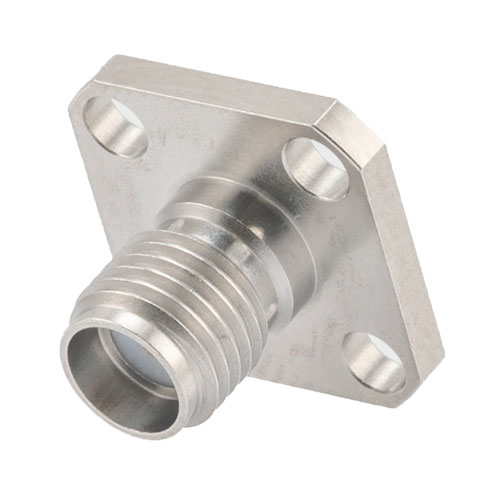

SMA Female (Jack) Connector Field Replaceable 4 Hole Flange (Panel Mount) 0.036 inch Pin, .340 inch Hole Spacing with Metal Contact Ring
