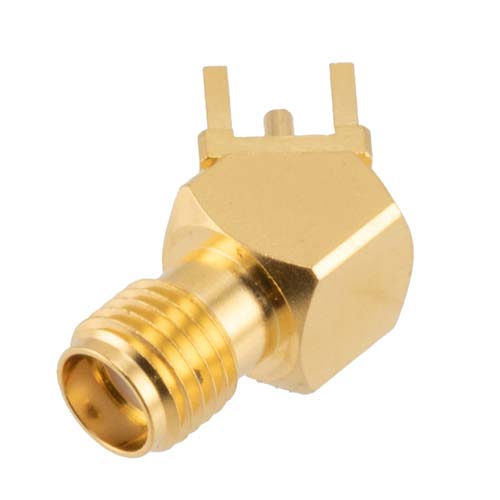

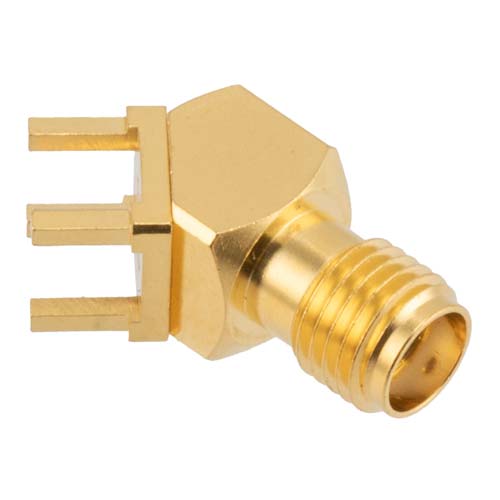

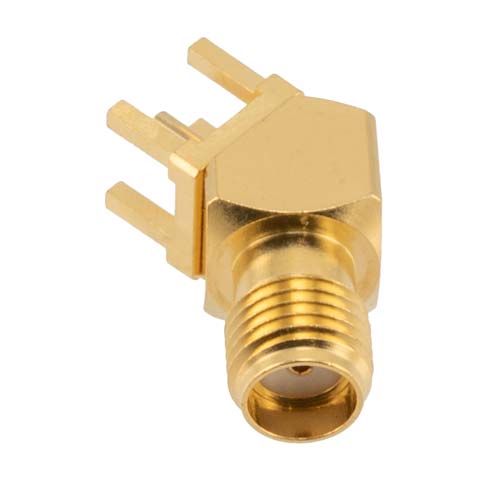

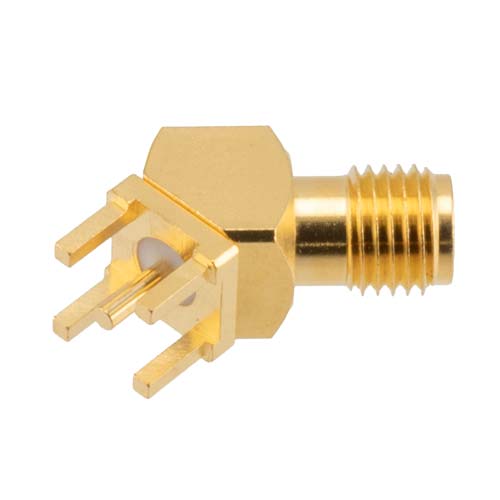

SMA Female (Jack) PCB Mount Connector, 45 Degree angle with round contact 0.05 inches diameter, 27GHz VSWR1.3

SMA Female (Jack) PCB Mount Connector, 45 Degree angle with round contact 0.05 inches diameter, 27GHz VSWR1.3

FMCN45996 SMA female 45 degree PCB connector has an interface type of SMA female and has an impedance of 50 Ohm. Our female SMA 45 degree connector operates at a maximum frequency of 27 GHz. This...

FMCN45996 SMA female 45 degree PCB connector has an interface type of SMA female and has an impedance of 50 Ohm. Our female SMA 45 degree connector operates at a maximum frequency of 27 GHz. This SMA female RF connector is stocked to be readily available for same business day shipment.The Fairview Microwave 45 degree SMA female (jack) PCB connector has a teflon dielectric type and a VSWR of 1.3:1. Fairview Microwave's SMA connector has a brass body with gold over nickel over copper plating. Our FMCN45996 45 degree connector uses beryllium copper contact. This RF connector can operate at temperatures ranging from -65 to +165 degrees C. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings.Fairview Microwave RF connector block has a maximum inner conductor and outer conductor resistance of 3 mOhms and 2 mOhms respectively. Our SMA female RF connector has a 0.2 dB maximum insertion loss. The radio frequency connector is made from brass along with a contact life of 100 cycles or more. This 45 degree SMA connector has a gold over nickel over copper inner contact plating. Fairview Microwave’s SMA female connector has a dielectric withstanding voltage of 1,500 Vrms. This Fairview Microwave 45 degree female SMA PCB connector will ship the same business day as purchased. Our PCB SMA 45 degree female connector is part of RF, microwave and millimeter wave components in stock for worldwide shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.

Expand

SKU FMCN45996 FMCN45996 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector Series

SMA

Connector Gender

Female

Impedance

50 Ohm

Body Style

45 Degree

Mount Method

PCB

Minimum Frequency

DC

Maximum Frequency

27 GHz

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

tnc-female-connector-fmcn46002 Fairview Microwave FMCN46002

5 available

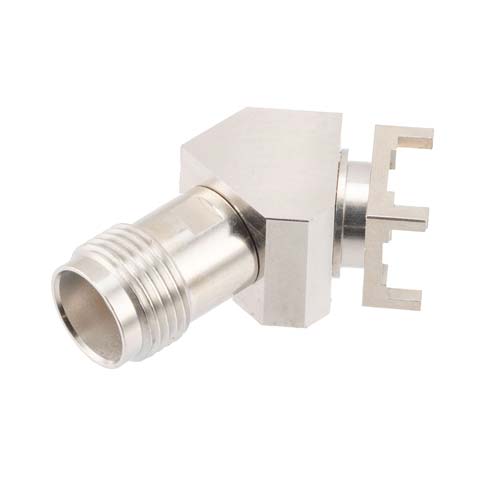

TNC Female (Jack) PCB Mount Connector, 45 Degree angle with round contact 0.0394 inches diameter, 18GHz VSWR1.2

Compare

SKU FMCN46002

Starting price $37.19

Estimated shipment Today

bnc-female-connector-fmcn46001 Fairview Microwave FMCN46001

10 available

BNC Female (Jack) PCB Mount Connector, 45 Degree angle with round contact 0.0394 inches diameter, 4GHz VSWR1.2

Compare

SKU FMCN46001

Starting price $37.19

Estimated shipment Today

mcx-female-connector-fmcn46000 Fairview Microwave FMCN46000

10 available

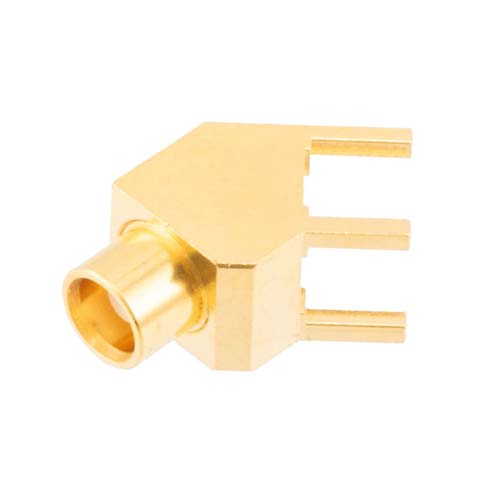

MCX Female (Jack) PCB Mount Connector, 45 Degree angle with round contact 0.0375 inches diameter, 6GHz VSWR1.2
