SMB Plug Non-Magnetic Connector Crimp/Solder Attachment for RG179, RG316 Cable

SMB Plug Non-Magnetic Connector Crimp/Solder Attachment for RG179, RG316 Cable

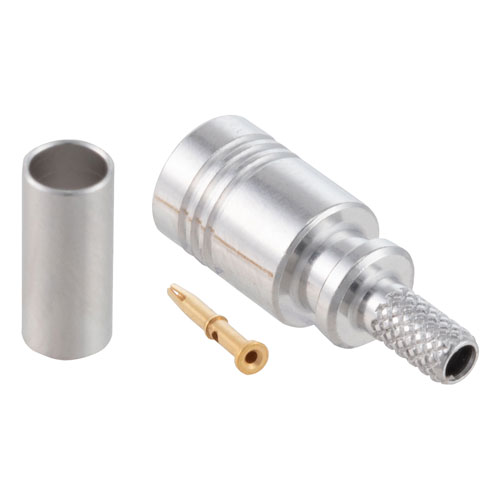

FMCN45873 SMB plug coaxial connector has an interface type of SMB plug which is compatible with RG179 and RG316 cables and a 50 Ohm impedance. This coaxial RF interconnect is made of non-magnetic ma...

FMCN45873 SMB plug coaxial connector has an interface type of SMB plug which is compatible with RG179 and RG316 cables and a 50 Ohm impedance. This coaxial RF interconnect is made of non-magnetic materials that allow RF power to be carried in a magnetic field without creating distortion. Fairview Microwave's SMB plug connector uses crimp/solder as an attachment method. Our plug SMB coaxial connector operates at a minimum frequency of DC and a maximum frequency of 4 GHz. This SMB plug RF connector is stocked to be readily available for same business day shipment.The Fairview Microwave SMB plug coaxial connector has a maximum VSWR of 1.13:1. This non-magnetic RF interconnect is suitable for use in MRI and other medical imaging equipment, medical technology, lab and test equipment, and other non-magnetic RF applications. Fairview Microwave SMB coaxial connector has a bronze body with copper-tin-zinc alloy plating. Our FMCN45873 connector uses beryllium copper contact. This threaded RF connector can operate at temperatures ranging from -65 to +165 degrees C. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings.Our SMB plug RF connector with coaxial termination has a 0.25 dB maximum insertion loss. The radio frequency connector is made from bronze along with a contact life of 500 cycles or more. This SMB connector has a gold over copper inner contact plating. The non-magnetic RF interconnect has a high signal-to-noise ratio (SNR) and low level of magnetic susceptibility. Fairview Microwave’s non-magnetic SMB plug connector has a maximum operating voltage of 500 Vrms and a dielectric withstanding voltage of 1,000 Vrms.This Fairview Microwave non-magnetic plug SMB connector will ship the same business day as purchased. Our SMB plug connector is part of our RF, microwave and millimeter wave components in stock for worldwide shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.

Expand

SKU FMCN45873 FMCN45873 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector Series

SMB

Connector Gender

Plug

Impedance

50 Ohm

Body Style

Straight

Attachment Method

Crimp/Solder

Mount Method

None

Minimum Frequency

DC

Maximum Frequency

4 GHz

Termination Type

Coax

Interface Type 1

RG179

Interface Type 2

RG316

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

smb-plug-connector-fmcn45874 Fairview Microwave FMCN45874

13 available

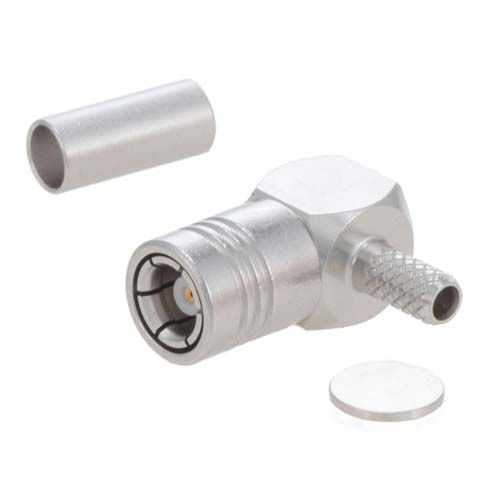

RA SMB Plug Non-Magnetic Connector Crimp/Solder Attachment for RG316 Cable

Compare

SKU FMCN45874

Starting price $27.39

Estimated shipment Tomorrow

smb-plug-pcb-connector-fmcn45876 Fairview Microwave FMCN45876

50 available

SMB Plug Non-Magnetic Connector Solder Attachment for PCB

Compare

SKU FMCN45876

Starting price $17.79

Estimated shipment Tomorrow

smb-jack-rg316-connector-fmcn45875 Fairview Microwave FMCN45875

4 available

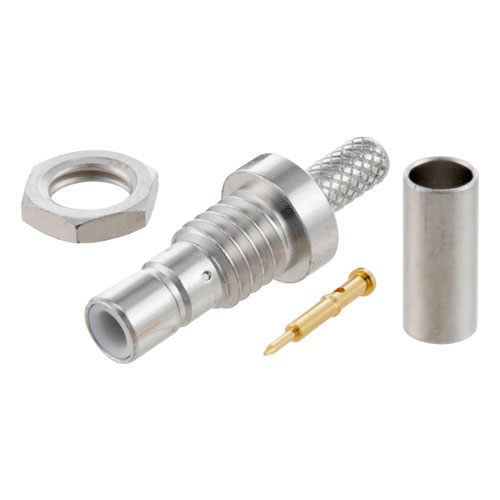

SMB Jack Bulkhead Non-Magnetic Connector Crimp/Solder Attachment for RG316 Cable

Compare

SKU FMCN45875

Starting price $30.39

Estimated shipment Tomorrow

smb-plug-connector-fmcn45878 Fairview Microwave FMCN45878

13 available

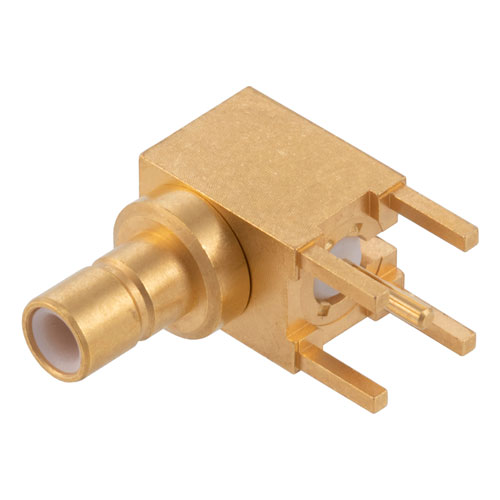

RA SMB Plug Non-Magnetic Connector Solder Attachment for PCB
