Right Angle SMB Plug (Male) Connector For 0.100 inch, RG316, RG174, RG188, LMR-100, LMR-100A, LMR-100A-FR Cable, Crimp/Solder

Right Angle SMB Plug (Male) Connector For 0.100 inch, RG316, RG174, RG188, LMR-100, LMR-100A, LMR-100A-FR Cable, Crimp/Solder

SC8846 RA SMB plug coaxial connector from Fairview Microwave has an interface type of 0.100 inch, RG316, RG174, RG188, LMR-100, LMR-100A, LMR-100A-FR and a 50 Ohm impedance. This SMB plug connector us...

SC8846 RA SMB plug coaxial connector from Fairview Microwave has an interface type of 0.100 inch, RG316, RG174, RG188, LMR-100, LMR-100A, LMR-100A-FR and a 50 Ohm impedance. This SMB plug connector uses shield attachment of crimp/solder attachment for the contact. Our plug SMB right angle coaxial connector provides a minimum frequency of DC and a maximum frequency of 4 GHz.Right angle SMB plug coaxial RF connector has a ptfe dielectric type and a VSWR of 1.3:1. This Fairview Microwave SMB coaxial connector has a brass body with gold plating. Our SC8846 SMB RA connector uses beryllium copper contact and a gold plating material. This SMB plug right angle coaxial RF connector is RoHS compliant, you can find this SMB plug right angle coaxial connector datasheet specifications above.Fairview Microwave RA plug SMB connector purchases will ship the same day. Our SMB right angle plug 0.100 inch / RG316 / RG174 / RG188 / LMR-100 / LMR-100A / LMR-100A-FR connector is part of over one million RF, microwave and millimeter wave components in stock and ready for same-day shipment worldwide. We also build custom SMB cable connector assemblies that will ship quickly from our location.* LMR™ is a trademark of Times Microwave Systems.

Expand

SKU SC8846 SC8846 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Polarity

Standard

Connector Series

SMB

Connector Gender

Plug

Impedance

50 Ohm

Body Style

Right Angle

Attachment Method

Crimp/Solder

Mount Method

None

Minimum Frequency

DC

Maximum Frequency

4 GHz

Termination Type

Coax

Interface Type 1

0.100 inch

Interface Type 2

RG316

Interface Type 3

RG174

Interface Type 4

RG188

Interface Type 5

LMR-100

Interface Type 6

LMR-100A

Interface Type 7

LMR-100A-FR

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (01/2025) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

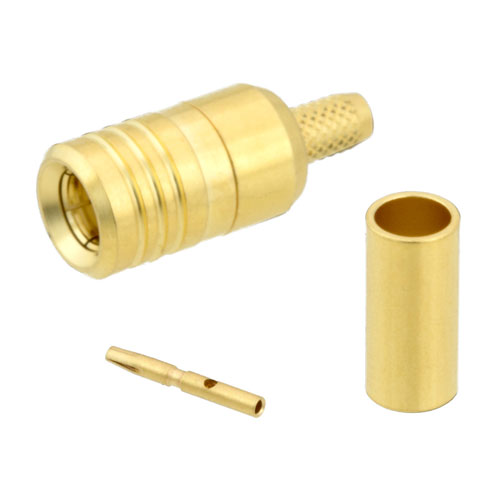

smb-plug-standard-rg316-rg174-connector-sc8841 Fairview Microwave SC8841

2,297 available

SMB Plug (Male) Connector For 0.100 inch, RG316, RG174, RG188, LMR-100, LMR-100A, LMR-100A-FR Cable, Crimp/Solder

Compare

SKU SC8841

Starting price $19.39

Estimated shipment Tomorrow

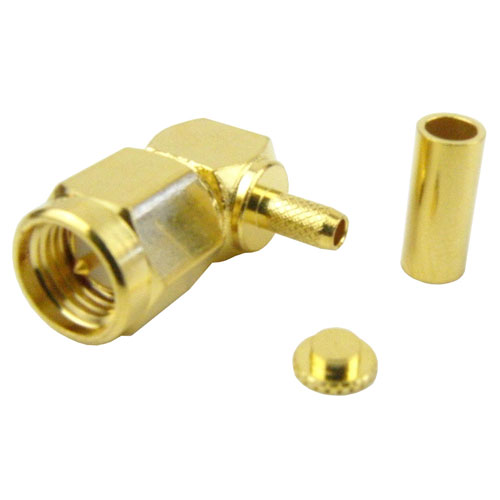

sma-male-standard-rg316-rg174-connector-sc6055 Fairview Microwave SC6055

421 available

Right Angle SMA Male (Plug) Connector For 0.100 inch, RG316, RG174, RG188, LMR-100, LMR-100A, LMR-100A-FR Cable, Crimp/Solder

Compare

SKU SC6055

Starting price $31.59

Estimated shipment Tomorrow

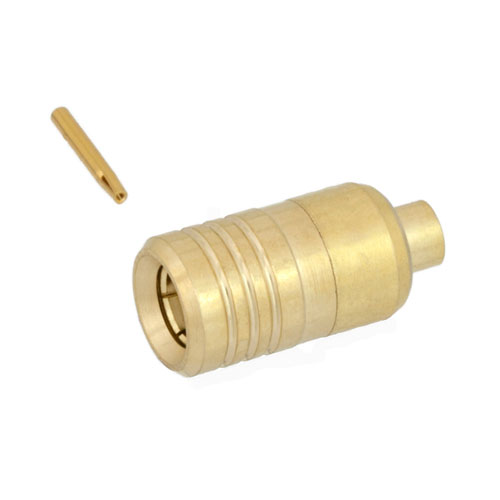

smb-male-push-on-rg405-connector-fmc01045 Fairview Microwave FMC01045

915 available

SMB Plug (Male) Push-On Connector For RG405 Cable, Solder

Compare

SKU FMC01045

Starting price $2.86

Estimated shipment Tomorrow

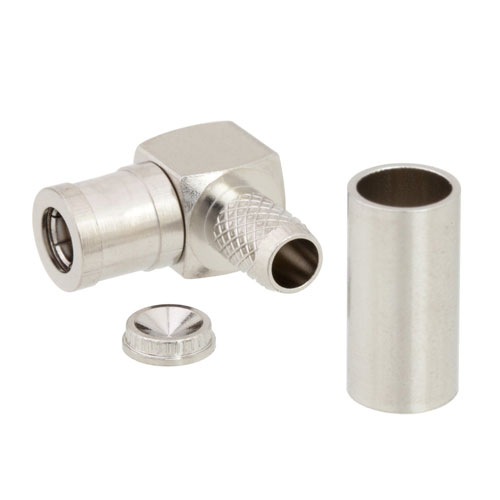

smb-plug-rg58-rg141-rg303-0.195-lmr-195-connector-fmcn1392 Fairview Microwave FMCN1392
