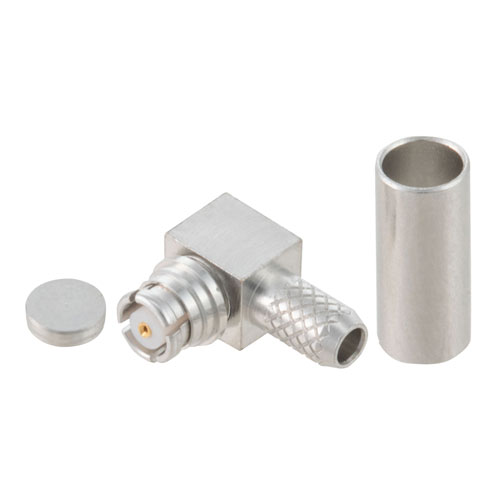

RA SMP Plug Non-Magnetic Connector Crimp/Solder Attachment for RG316 Cable

RA SMP Plug Non-Magnetic Connector Crimp/Solder Attachment for RG316 Cable

FMCN45882 SMP female right angle coaxial connector has an interface type of SMP female which is compatible with RG316 cables and a 50 Ohm impedance. This coaxial RF interconnect is made of non-magne...

FMCN45882 SMP female right angle coaxial connector has an interface type of SMP female which is compatible with RG316 cables and a 50 Ohm impedance. This coaxial RF interconnect is made of non-magnetic materials that allow RF power to be carried in a magnetic field without creating distortion. Fairview Microwave's SMP female connector uses crimp/solder as an attachment method. Our female SMP right angle coaxial connector operates at a minimum frequency of DC and a maximum frequency of 12.4 GHz. This SMP female RF connector is stocked to be readily available for same business day shipment.The Fairview Microwave right angle SMP female coaxial connector has a maximum VSWR of 1.25:1. This non-magnetic RF interconnect is suitable for use in MRI and other medical imaging equipment, medical technology, lab and test equipment, and other non-magnetic RF applications. Fairview Microwave SMP coaxial connector has a bronze body with copper-tin-zinc alloy plating. Our FMCN45882 right angle connector uses beryllium copper contact. This threaded RF connector can operate at temperatures ranging from -55 to +125 degrees C. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings.Our SMP female RF connector with coaxial termination has a 0.12 dB maximum insertion loss. The radio frequency connector is made from bronze along with a contact life of 500 cycles or more. This right angle SMP connector has a gold over copper inner contact plating. The non-magnetic RF interconnect has a high signal-to-noise ratio (SNR) and low level of magnetic susceptibility. Fairview Microwave’s non-magnetic SMP female connector has a maximum operating voltage of 250 Vrms and a dielectric withstanding voltage of 750 Vrms.This Fairview Microwave non-magnetic right angle female SMP connector will ship the same business day as purchased. Our SMP right angle female connector is part of our RF, microwave and millimeter wave components in stock for worldwide shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.

Expand

SKU FMCN45882 FMCN45882 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector Series

SMP

Connector Gender

Female

Impedance

50 Ohm

Body Style

Right Angle

Attachment Method

Crimp/Solder

Mount Method

None

Minimum Frequency

DC

Maximum Frequency

12.4 GHz

Termination Type

Coax

Interface Type 1

RG316

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

smp-plug-0.047-cable-connector-fmcn45886 Fairview Microwave FMCN45886

1 available

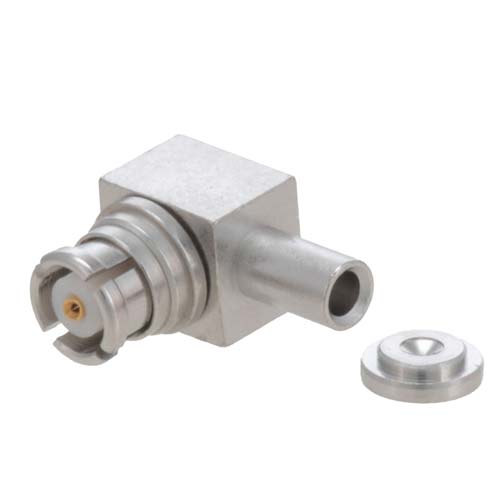

RA SMP Plug Non-Magnetic Connector Crimp/Solder Attachment for 0.047 Cable

Compare

SKU FMCN45886

Starting price $12.99

Estimated shipment Tomorrow

mcx-plug-rg316-connector-fmcn45885 Fairview Microwave FMCN45885

11 available

MCX Plug Right Angle Non-Magnetic Connector Crimp/Solder Attachment for RG316

Compare

SKU FMCN45885

Starting price $40.99

Estimated shipment Tomorrow

0.047-cable-terminal-connector-fmcn45884 Fairview Microwave FMCN45884

12 available

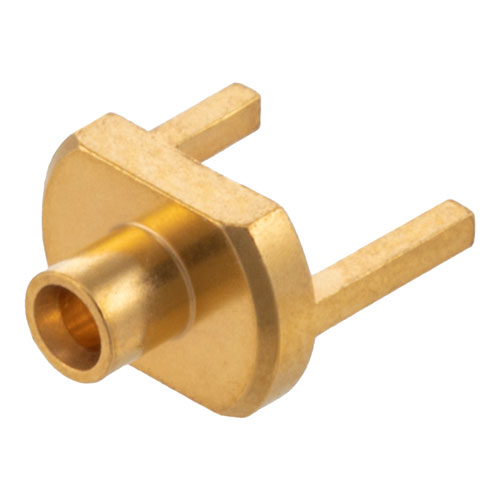

Cable Termination Non-Magnetic Straight PCB Mount for 0.047 Cable

Compare

SKU FMCN45884

Starting price $17.39

Estimated shipment Tomorrow

rg179-rg316-terminal-connector-fmcn45883 Fairview Microwave FMCN45883

50 available

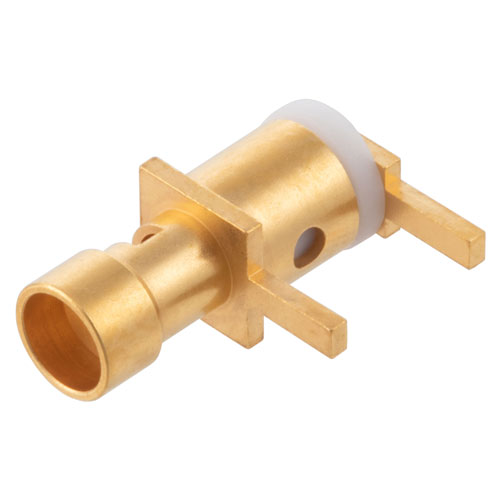

Cable Termination Non-Magnetic Right-Angle PCB Mount for RG179, RG316
