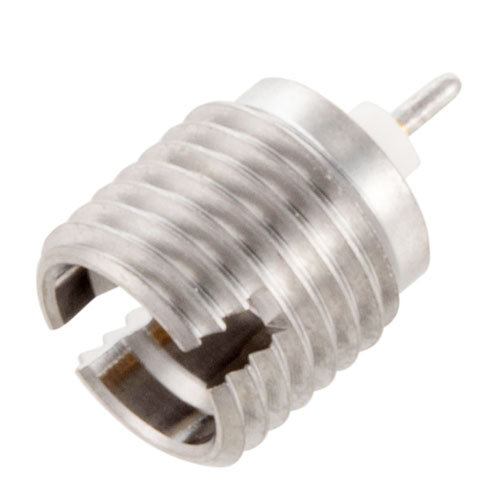

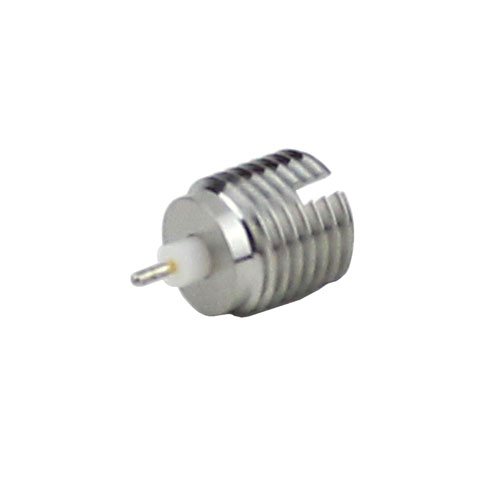

SMP Male (Plug) Smooth Bore CM Connector Stub Terminal, Solder Thread-In

SMP Male (Plug) Smooth Bore CM Connector Stub Terminal, Solder Thread-In

SC5514 SMP male thread-in terminal smooth bore cm connector from Fairview Microwave has an interface type of stub and a 50 Ohm impedance. This SMP male thread-in connector uses shield attachment of so...

SC5514 SMP male thread-in terminal smooth bore cm connector from Fairview Microwave has an interface type of stub and a 50 Ohm impedance. This SMP male thread-in connector uses shield attachment of solder attachment for the contact. Our male SMP terminal connector provides a minimum frequency of DC and a maximum frequency of 50 GHz.SMP male thread-in terminal smooth bore cm RF connector has a ptfe dielectric type and a VSWR of 1.3:1. This Fairview Microwave SMP terminal connector has a passivated stainless steel body. Our SC5514 SMP connector uses beryllium copper contact. This SMP male thread-in terminal smooth bore cm RF connector is RoHS compliant, you can find this SMP male thread-in terminal smooth bore cm connector datasheet specifications above.Fairview Microwave male SMP thread-in connector purchases will ship the same day. Our thread-in SMP male stub connector is part of over one million RF, microwave and millimeter wave components in stock and ready for same-day shipment worldwide. We also build custom SMP cable connector assemblies that will ship quickly from our location.

Expand

SKU SC5514 SC5514 -0

QTY available Call us

Price $34.19

Quantity Price

1-24$34.19

25-49$32.48

50-99$30.77

100-249$29.40

250-499$28.04

500+$28.04Please call for quote

All Prices are in US Dollars and do not include duties

Quantity

Key specifications

Datasheet

View All

Polarity

Standard

Connector Series

SMP

Connector Gender

Male

Impedance

50 Ohm

Body Style

Straight

Attachment Method

Solder

Mount Method

Thread-In

Minimum Frequency

DC

Maximum Frequency

50 GHz

Termination Type

Terminal

Interface Type 1

Stub

Product compliance

RoHS status

No Substance(s) Present Above Threshold

REACH status

SVHC (06/2024) No Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
