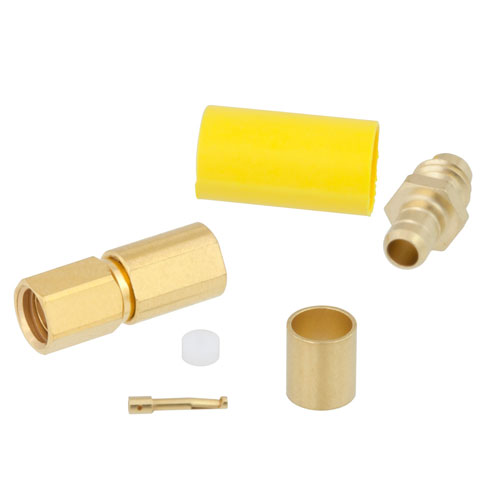

SSMC Plug Connector Crimp/Solder Attachment For RG188-DS, RG316-DS Cable

SSMC Plug Connector Crimp/Solder Attachment For RG188-DS, RG316-DS Cable

FMCN1254 SSMC plug coaxial connector from Fairview Microwave has an interface type of RG188-DS, RG316-DS and a 50 Ohm impedance. This SSMC plug connector uses shield attachment of crimp/solder attachm...

FMCN1254 SSMC plug coaxial connector from Fairview Microwave has an interface type of RG188-DS, RG316-DS and a 50 Ohm impedance. This SSMC plug connector uses shield attachment of crimp/solder attachment for the contact. Our plug SSMC coaxial connector provides a minimum frequency of DC and a maximum frequency of 12.4 GHz.SSMC plug coaxial RF connector has a teflon dielectric type and a VSWR of 1.5:1. This Fairview Microwave SSMC coaxial connector has a beryllium copper body with gold plating. Our FMCN1254 SSMC connector uses beryllium copper contact and a gold plating material. This SSMC plug coaxial RF connector is RoHS compliant, you can find this SSMC plug coaxial connector datasheet specifications above.Fairview Microwave plug SSMC connector purchases will ship the same day. Our SSMC plug RG188-DS / RG316-DS connector is part of over one million RF, microwave and millimeter wave components in stock and ready for same-day shipment worldwide. We also build custom SSMC cable connector assemblies that will ship quickly from our location.

Expand

SKU FMCN1254 FMCN1254 -0

Product no longer available

This product has been discontinued and has run out of stock. We apologize for the inconvenience.

Replacement Part: FMCN1292

Key specifications

Datasheet

View All

Polarity

Standard

Connector Series

SSMC

Connector Gender

Plug

Impedance

50 Ohm

Body Style

Straight

Attachment Method

Crimp/Solder

Mount Method

None

Minimum Frequency

DC

Maximum Frequency

12.4 GHz

Termination Type

Coax

Interface Type 1

RG188-DS

Interface Type 2

RG316-DS

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (06/2024) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

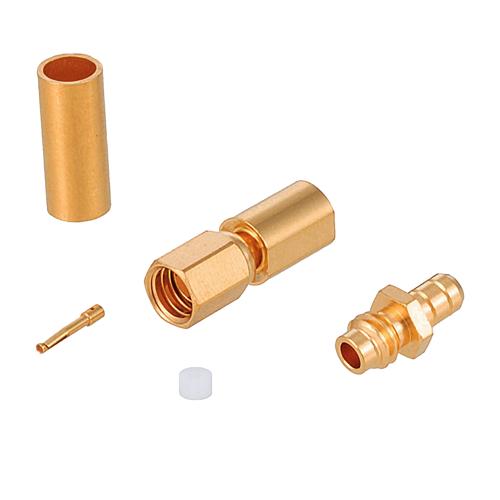

ssmc-plug-rg188-ds-rg316-ds-connector-fmcn1292 Fairview Microwave FMCN1292

113 available

SSMC Plug Connector for RG316-DS, RG188-DS Cable, Crimp/Solder, Gold Plated Berllium Copper Body, Length 0.7 In

Compare

SKU FMCN1292

Starting price $37.19

Estimated shipment Next Business Day

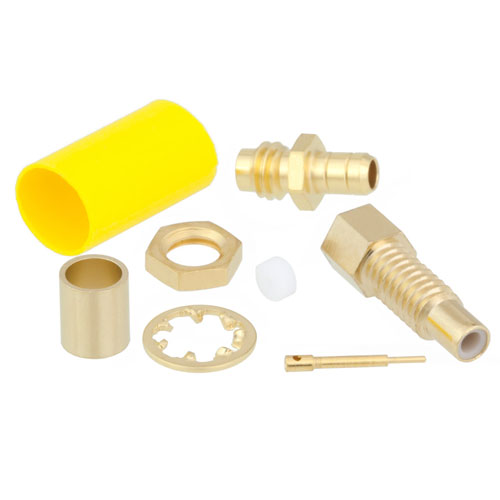

ssmc-jack-rg316-ds-rg188-ds-connector-fmcn1258 Fairview Microwave FMCN1258

21 available

SSMC Jack Bulkhead Connector Crimp/Solder Attachment for RG316-DS, RG188-DS Cable

Compare

SKU FMCN1258

Starting price $22.99

Estimated shipment Next Business Day

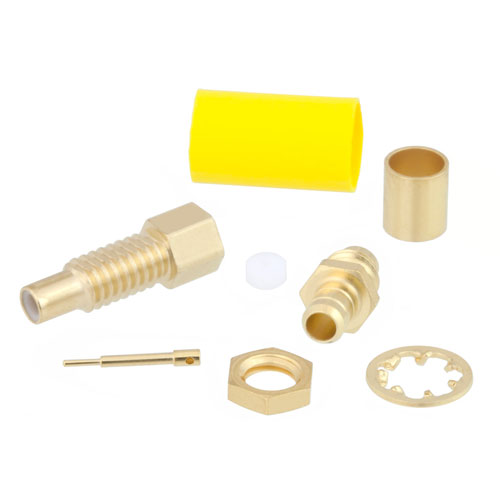

ssmc-jack-rg316-ds-rg188-ds-connector-fmcn1259 Fairview Microwave FMCN1259

Call us

SSMC Jack Bulkhead Connector Crimp/Solder Attachment for RG316-DS, RG188-DS Cable

Compare

SKU FMCN1259

Starting price $24.59

Estimated shipment Call Us

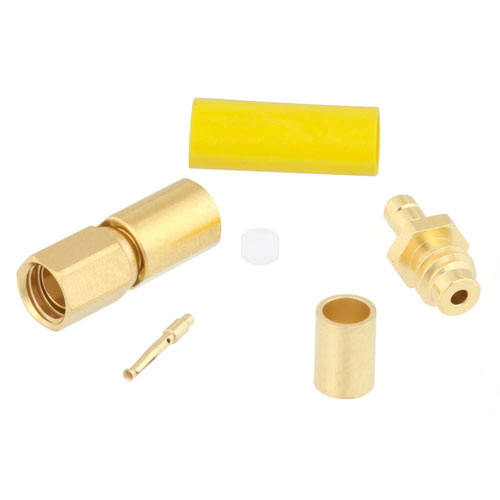

ssmc-plug-rg178-rg196-connector-fmcn1252 Fairview Microwave FMCN1252

Call us

SSMC Plug Connector Crimp/Solder Attachment For RG178, RG196 Cable

Compare

SKU FMCN1252

Starting price

Estimated shipment Call Us
