TNC Female (Jack) Connector Solder Cup Terminal 4 Hole Flange (Panel Mount), Solder, Nickel Plated Brass Body, Length 1.06 In

TNC Female (Jack) Connector Solder Cup Terminal 4 Hole Flange (Panel Mount), Solder, Nickel Plated Brass Body, Length 1.06 In

SC4231 TNC female 4 hole flange terminal connector from Fairview Microwave has an interface type of solder cup and a 50 Ohm impedance. This TNC female 4 hole flange connector uses shield attachment of...

SC4231 TNC female 4 hole flange terminal connector from Fairview Microwave has an interface type of solder cup and a 50 Ohm impedance. This TNC female 4 hole flange connector uses shield attachment of solder attachment for the contact. Our female TNC terminal connector provides a minimum frequency of DC and a maximum frequency of 11 GHz.TNC female 4 hole flange terminal RF connector has a ptfe dielectric type and a VSWR of 1.25:1. This Fairview Microwave TNC terminal connector has a brass body with nickel plating. Our SC4231 TNC connector uses beryllium copper contact and a nickel plating material. This TNC female 4 hole flange terminal RF connector is RoHS compliant, you can find this TNC female 4 hole flange terminal connector datasheet specifications above.Fairview Microwave female TNC 4 hole flange connector purchases will ship the same day. Our 4 hole flange TNC female solder cup connector is part of over one million RF, microwave and millimeter wave components in stock and ready for same-day shipment worldwide. We also build custom TNC cable connector assemblies that will ship quickly from our location.

Expand

SKU SC4231 SC4231 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Polarity

Standard

Connector Series

TNC

Connector Gender

Female

Impedance

50 Ohm

Body Style

Straight

Attachment Method

Solder

Mount Method

4 Hole Flange

Minimum Frequency

DC

Maximum Frequency

11 GHz

Termination Type

Terminal

Interface Type 1

Solder Cup

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (01/2025) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

tnc-female-standard-solder-cup-terminal-connector-sc4233 Fairview Microwave SC4233

331 available

TNC Female (Jack) Connector Solder Cup Terminal 4 Hole Flange (Panel Mount), Solder, Nickel Plated Brass Body, Length 0.63 In

Compare

SKU SC4233

Starting price $5.00

Estimated shipment Next Business Day

tnc-female-standard-solder-cup-terminal-connector-sc4237 Fairview Microwave SC4237

134 available

RA TNC Female (Jack) Connector Solder Cup Terminal 4 Hole Flange (Panel Mount), Solder, Nickel Plated Brass Body, Length 0.906 In

Compare

SKU SC4237

Starting price $51.99

Estimated shipment Next Business Day

tnc-female-solder-cup-terminal-connector-fmcn1178 Fairview Microwave FMCN1178

187 available

Right Angle TNC Female (Jack) Connector Solder Cup Terminal 4 Hole Flange (Panel Mount), Solder

Compare

SKU FMCN1178

Starting price $18.53

Estimated shipment Next Business Day

tnc-female-standard-solder-cup-terminal-connector-sc4239 Fairview Microwave SC4239

Call us

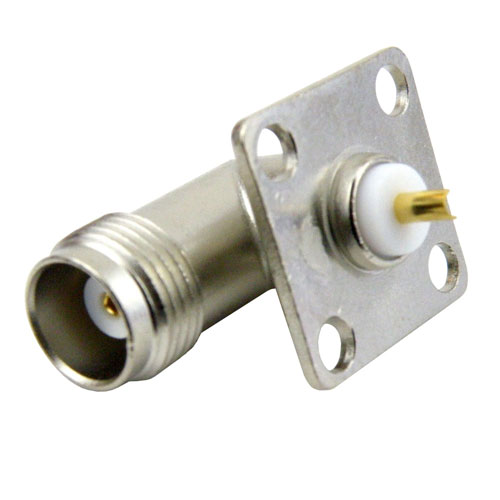

RA TNC Female Connector Solder Cup Terminal Solder Attachment 4 Hole Flange
