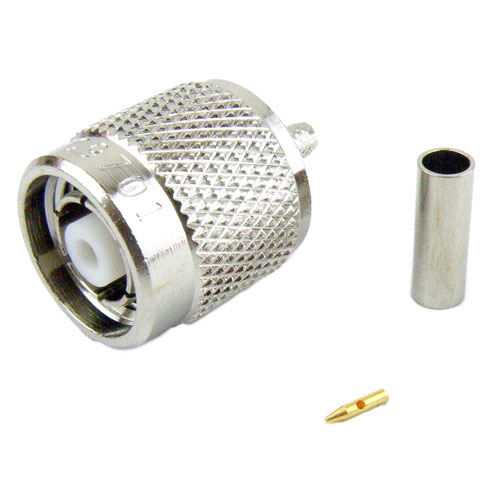

RP TNC Male Connector Crimp/Solder Attachment For RG316, RG174 Cable

RP TNC Male Connector Crimp/Solder Attachment For RG316, RG174 Cable

SC9701 RP TNC male coaxial connector from Fairview Microwave has an interface type of RG316, RG174 and a 50 Ohm impedance. This reverse polarity TNC male connector uses crimp/solder shield attachment ...

SC9701 RP TNC male coaxial connector from Fairview Microwave has an interface type of RG316, RG174 and a 50 Ohm impedance. This reverse polarity TNC male connector uses crimp/solder shield attachment and crimp/solder contact attachment methods. Our reverse polarity male TNC coaxial connector provides a minimum frequency of DC and a maximum frequency of 3 GHz.Reverse polarity TNC male coaxial RF connector has a ptfe dielectric type and a VSWR of 1.3:1. This Fairview Microwave TNC coaxial connector has a brass body with nickel plating. Our SC9701 RP-TNC connector uses brass contact and a nickel plating material. This reverse polarity TNC male coaxial RF connector is RoHS compliant, you can find this reverse polarity TNC male coaxial connector datasheet specifications above. Fairview Microwave RP male TNC connector purchases will ship the same day. Our TNC reverse polarity male RG316 / RG174 connector is part of over one million RF, microwave and millimeter wave components in stock and ready for same-day shipment worldwide. We also build custom RP-TNC cable connector assemblies that will ship quickly from our Allen, TX location in the.

Expand

SKU SC9701 SC9701 -0

Product no longer available

This product has been discontinued and has run out of stock. We apologize for the inconvenience.

Please contact our customer service team for assistance in identifying the appropriate replacment part for your application.

Key specifications

Datasheet

View All

Polarity

Reverse Polarity

Connector Series

TNC

Connector Gender

Male

Impedance

50 Ohm

Body Style

Straight

Attachment Method

Crimp/Solder

Mount Method

None

Minimum Frequency

DC

Maximum Frequency

3 GHz

Termination Type

Coax

Interface Type 1

RG316

Interface Type 2

RG174

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (01/2025) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

tnc-female-reverse-polarity-rg316-u-rg174-lmr-100-connector-sc9704 Fairview Microwave SC9704

27 available

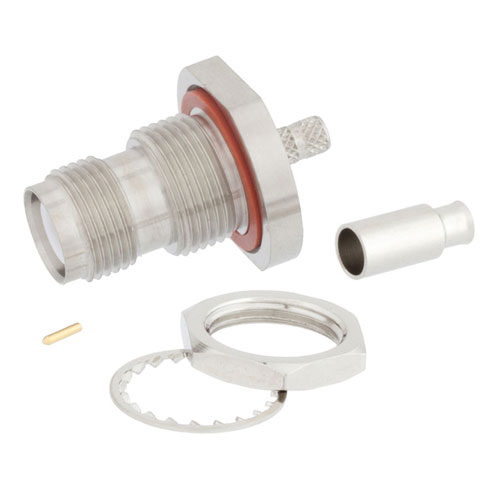

RP TNC Female (Jack) Bulkhead Connector For RG316, RG174, LMR-100 Cable IP67 Rated, Crimp/Solder, Nickel Plated Brass Body, Length 1.36 In

Compare

SKU SC9704

Starting price $79.99

Estimated shipment Today

tnc-female-reverse-polarity-rg316-u-rg174-lmr-100-connector-sc9703 Fairview Microwave SC9703

Call us

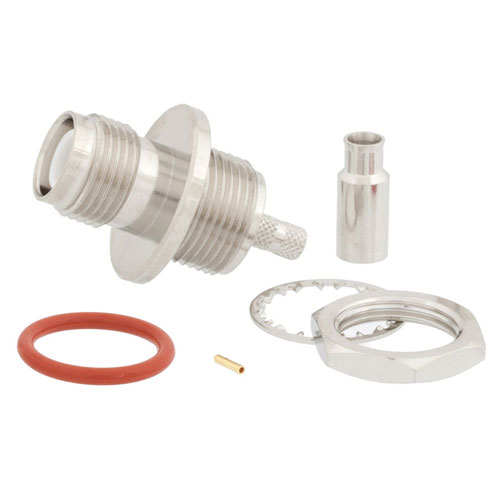

RP TNC Female (Jack) Bulkhead Connector For RG316, RG174, LMR-100 Cable IP67 Rated, Crimp/Solder, Nickel Plated Brass Body, Length 1.38 In

Compare

SKU SC9703

Starting price $32.59

Estimated shipment Call Us

tnc-female-reverse-polarity-lmr-200-connector-ez-200-tfrp Fairview Microwave EZ-200-TFRP

Call us

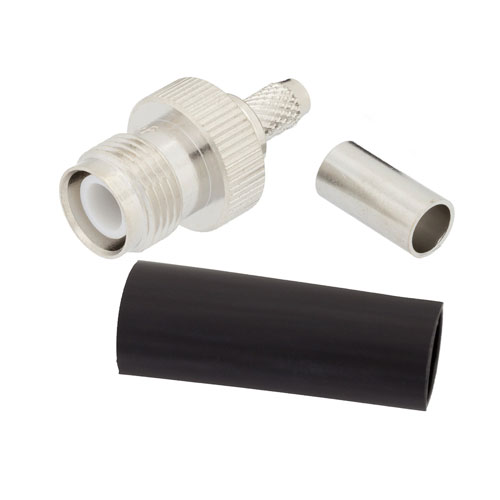

Reverse Polarity TNC Female (Jack) Connector For LMR-200 Cable, Crimp/Non-Solder Contact

Compare

SKU EZ-200-TFRP

Starting price $18.79

Estimated shipment Call Us

tnc-male-reverse-polarity-lmr-200-connector-ez-200-tm-rp Fairview Microwave EZ-200-TM-RP

Call us

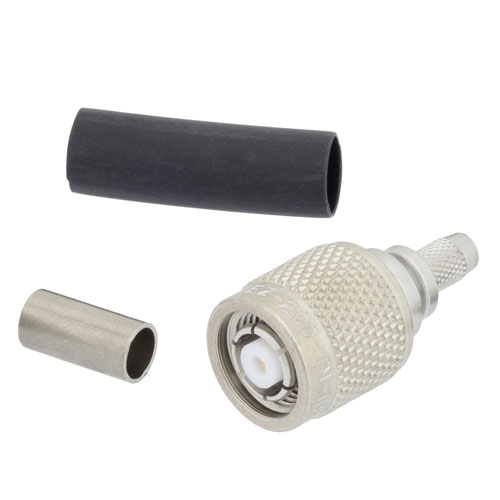

RP TNC Male Connector Crimp/Non-Solder Contact Attachment For LMR-200 Cable
