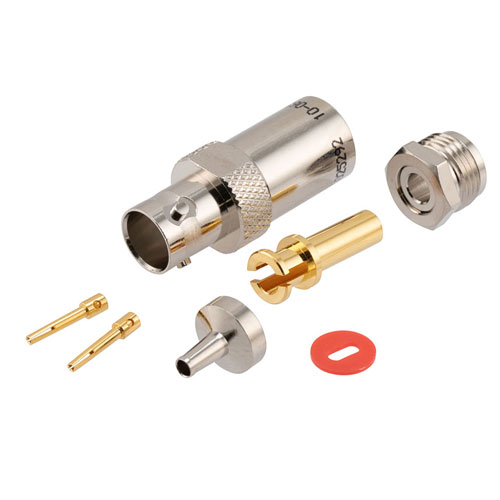

78 Ohm TRB 3-Lug Jack 1553 Connector Clamp/Solder Attachment for FMBC-30-02003, TWC-78-1

78 Ohm TRB 3-Lug Jack 1553 Connector Clamp/Solder Attachment for FMBC-30-02003, TWC-78-1

FMCN10-06575-231 TRB 3-Lug jack coaxial connector has an interface type of TRB 3-Lug jack which is compatible with FMBC-30-02003, TWC-78-1, and TRB JACK cables and a 78 Ohm impedance. Fairview Micro...

FMCN10-06575-231 TRB 3-Lug jack coaxial connector has an interface type of TRB 3-Lug jack which is compatible with FMBC-30-02003, TWC-78-1, and TRB JACK cables and a 78 Ohm impedance. Fairview Microwave's TRB 3-Lug jack connector uses clamp/solder as an attachment method. Our jack TRB 3-Lug coaxial connector operates at a minimum frequency of DC and a maximum frequency of 500 MHz. This TRB 3-Lug jack RF connector is stocked to be readily available for same business day shipment.The Fairview Microwave TRB 3-Lug jack coaxial connector has a teflon dielectric type. Fairview Microwave TRB 3-Lug coaxial connector has a brass body with nickel plating. Our FMCN10-06575-231 connector uses beryllium copper contact. This bayonet RF connector can operate at temperatures ranging from -55 to +200 degrees C. Additional RF connector specs and dimensions for this component can be found on its PDF specification datasheet and CAD drawings.Our high-quality FMCN10-06575-231 connector features a ASTM-B-733 body plating specification. This TRB 3-Lug connector has a gold 30 micro inches inner contact plating. This Fairview Microwave jack TRB 3-Lug connector will ship the same business day as purchased. Our TRB 3-Lug jack connector is part of our RF, microwave and millimeter wave components in stock for worldwide shipment. For further information on similar products, our expert technical support and trained sales team can get you the ideal RF connector as per your requirements.

Expand

SKU FMCN10-06575-231 FMCN10-06575-231 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Polarity

Standard

Connector Series

TRB 3-Lug

Connector Gender

Jack

Impedance

78 Ohm

Body Style

Straight

Attachment Method

Clamp/Solder

Mount Method

None

Minimum Frequency

DC

Maximum Frequency

500 MHz

Termination Type

Coax

Interface Type 1

FMBC-30-02003

Interface Type 2

TWC-78-1

Interface Type 3

TRB JACK

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

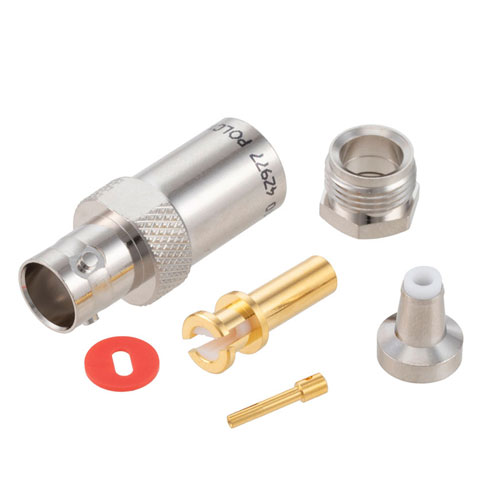

trb-3-lug-jack-fmbc-30-02001-twc-78-2-connector-fmcn10-06575-210 Fairview Microwave FMCN10-06575-210

4 available

78 Ohm TRB 3-Lug Jack 1553 Connector Clamp/Solder Attachment for FMBC-30-02001, TWC-78-2

Compare

SKU FMCN10-06575-210

Starting price $38.99

Estimated shipment Tomorrow

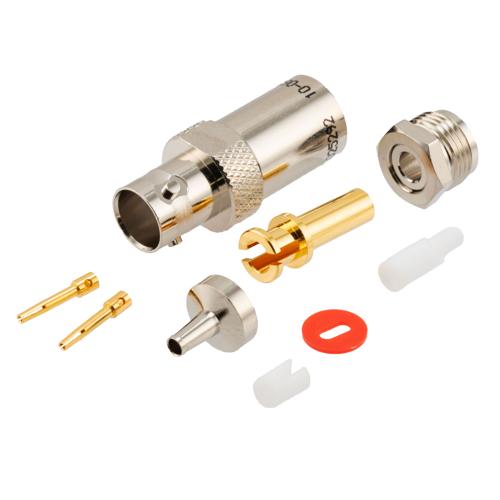

trb-3lug-jack-m17-176-00002-trb-jack-connector-fmcn10-06575-206 Fairview Microwave FMCN10-06575-206

1 available

78 Ohm TRB 3-Lug Jack 1553 Connector Clamp/Solder Attachment for M17/176-00002,

Compare

SKU FMCN10-06575-206

Starting price $32.79

Estimated shipment Tomorrow

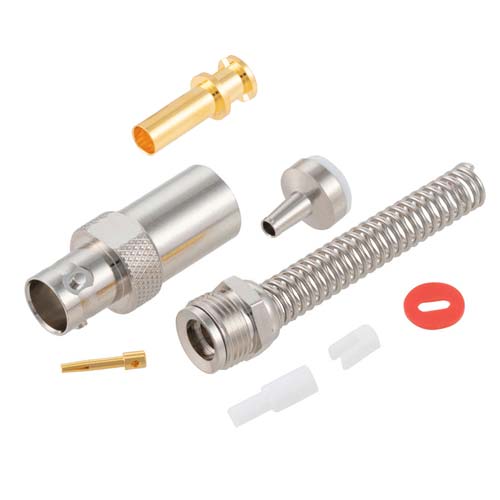

trb-3-lug-jack-fmbc-30-02003-twc-78-1-twc-1241-a-connector-fmcn10-06570-231 Fairview Microwave FMCN10-06570-231

6 available

78 Ohm TRB 3-lug Jack 1553 Connector Clamp/Solder Attachment with Bend Relief for FMBC-30-02003, TWC-78-1 (OD .150")

Compare

SKU FMCN10-06570-231

Starting price $47.19

Estimated shipment Tomorrow

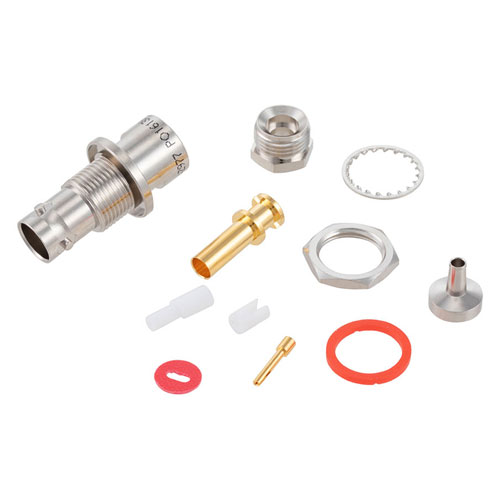

trb-3-lug-jack-fmbc-30-02003-twc-78-1-connector-fmcn10-06577-231 Fairview Microwave FMCN10-06577-231
