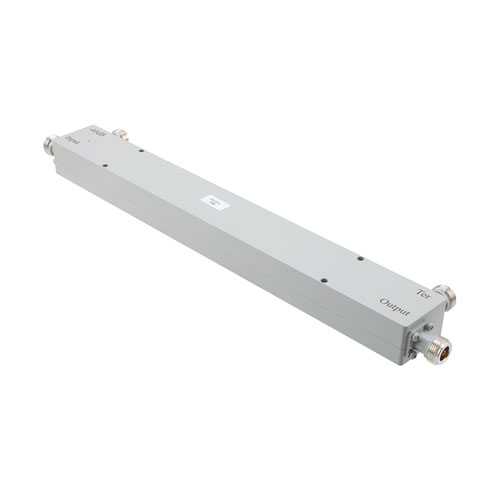

N Directional Coupler 40 dB from 100 MHz to 400 MHz Rated to 500 Watts

N Directional Coupler 40 dB from 100 MHz to 400 MHz Rated to 500 Watts

This RF coupler from Fairview Microwave is just part of a wide selection of coaxial coupler products available with same day shipment. Our radio frequency coupler is directional and built with N-type ...

This RF coupler from Fairview Microwave is just part of a wide selection of coaxial coupler products available with same day shipment. Our radio frequency coupler is directional and built with N-type ports. The Fairview Microwave directional coupler has female gender configuration for input and output ports along with 50 Ohm impedance.Directional coupler design for FMCP1136-40 from Fairview Microwave is rated for a 100 MHz minimum frequency and 400 MHz maximum frequency. Our directional coupler is designed with a 40 dB nominal coupling value and a 19 dB minimum directivity. Our directional coupler operates in a temperature range from -40 deg C to 85 deg C.Our FMCP1136-40 radio frequency coupler has an aluminum housing. This female N-type directional coupler has a 0.25 dB maximum insertion loss and a 1.2:1 maximum VSWR. This radio frequency N-type connector coupler has 1 dB of maximum frequency sensitivity and provides a simple way of sampling microwave signals. Fairview Microwave is where to buy a directional coupler with N-type connector that is rated for 500 watts maximum input power (CW). More female N-type coupler specs for this radio frequency component can be found on its directional coupler PDF specifications datasheet above. FMCP1136-40 directional 40 dB N-type coupler is part of over a million RF, microwave and millimeter wave components supplied by Fairview Microwave. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the high-quality radio frequency coupler that meets your requirements.

Expand

SKU FMCP1136-40 FMCP1136-40 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Directionality

Directional

Connector Series

N

Connector Gender

Female

Minimum Frequency

100 MHz

Maximum Frequency

400 MHz

Maximum Input Power

500 Watt

Coupling Value

40 dB

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

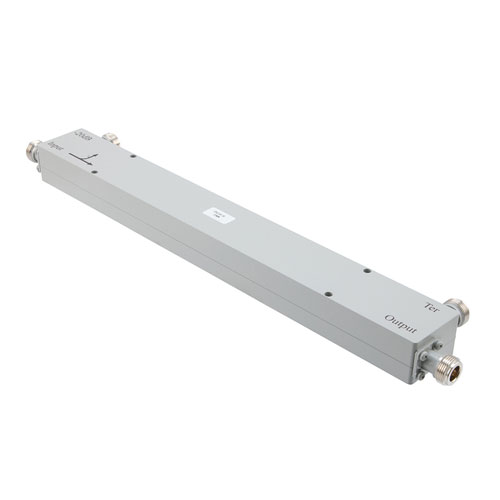

directional-standard-20-db-100-mhz-to-400-mhz-fmcp1140-20 Fairview Microwave FMCP1140-20

7 available

N Directional Coupler 20 dB from 100 MHz to 400 MHz Rated to 500 Watts

Compare

SKU FMCP1140-20

Starting price $865.00

Estimated shipment Today

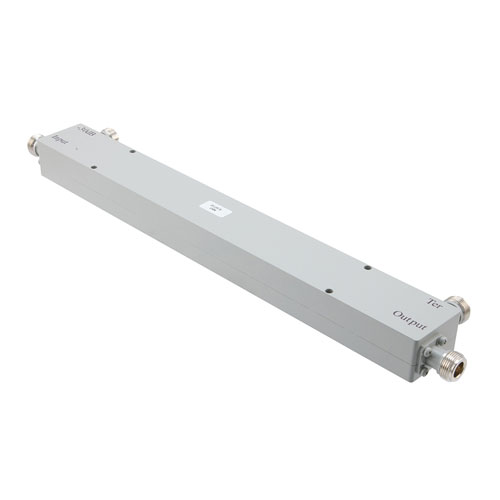

directional-standard-30-db-100-mhz-to-400-mhz-fmcp1139-30 Fairview Microwave FMCP1139-30

13 available

N Directional Coupler 30 dB from 100 MHz to 400 MHz Rated to 500 Watts

Compare

SKU FMCP1139-30

Starting price $865.00

Estimated shipment Today

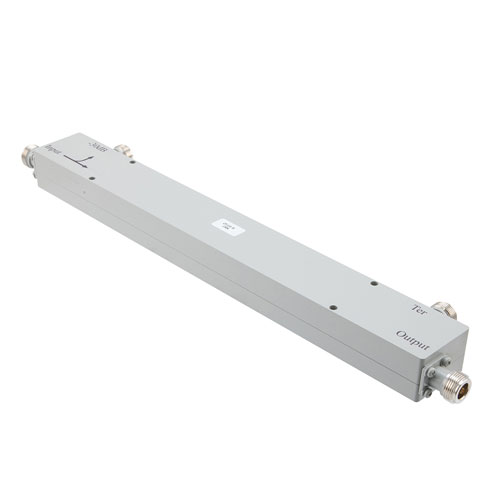

directional-standard-30-db-100-mhz-to-800-mhz-fmcp1143-30 Fairview Microwave FMCP1143-30

12 available

N Directional Coupler 30 dB from 100 MHz to 800 MHz Rated to 500 Watts

Compare

SKU FMCP1143-30

Starting price $865.00

Estimated shipment Today

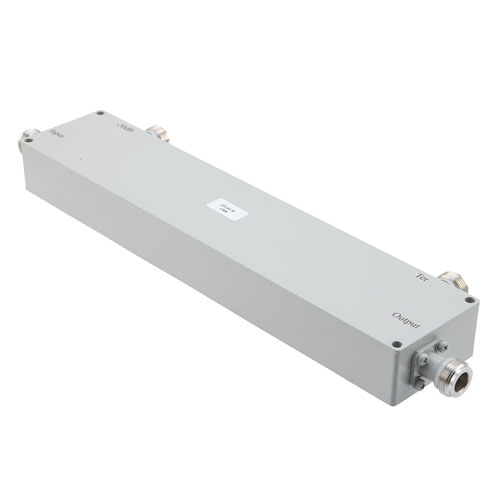

directional-standard-30-db-500-mhz-to-1-ghz-fmcp1144-30 Fairview Microwave FMCP1144-30

13 available

N Directional Coupler 30 dB from 500 MHz to 1000 MHz Rated to 500 Watts

Compare

SKU FMCP1144-30

Starting price $865.00

Estimated shipment Today
