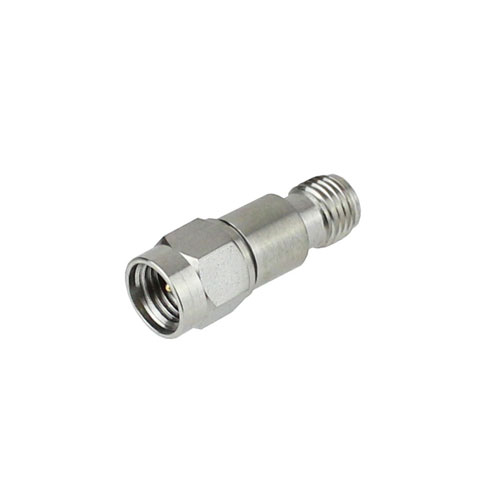

Inner DC Block From 10 MHz to 40 GHz With 2.92mm Connectors

Inner DC Block From 10 MHz to 40 GHz With 2.92mm Connectors

Coaxial DC block SD3460 is only one of a large number of radio frequency DC blocking components specifically stocked to be ready for quick shipment. Fairview Microwave RF DC block is manufactured with...

Coaxial DC block SD3460 is only one of a large number of radio frequency DC blocking components specifically stocked to be ready for quick shipment. Fairview Microwave RF DC block is manufactured with a 2.92mm connector in and 2.92mm connector out. Our 2.92mm to 2.92mm DC block is male to female genders in and out.Fairview Microwave 2.92mm DC block has a 50 Ohm impedance and an inner design. Our 50 Ohm 2.92mm inner DC block is rated for a minimum frequency of 10 MHz and a maximum frequency of 40 GHz. SD3460 2.92mm inner DC block has a maximum insertion loss of 0 dB and a maximum VSWR of 1.45:1.Inner DC block specs for this Fairview direct current blocking component can be found on its DC block datasheet PDF specifications above. Inner 2.92mm DC block is one radio frequency component of more than one million microwave and millimeter wave RF parts in stock at Fairview and is ready to buy and can be shipped worldwide. Fairview also maintains a wide selection of other radio frequency DC blocks that ship same-day from our warehouse in the as with the rest of our other RF/microwave and millimeter wave components.

Expand

SKU SD3460 SD3460 -0

Product no longer available

This product has been discontinued and has run out of stock. We apologize for the inconvenience.

Replacement Part: SD3476

Key specifications

Datasheet

View All

Block Type

Inner

Impedance

50 Ohm

Connector In Series

2.92mm

Connector In Gender

Male

Connector Out Series

2.92mm

Connector Out Gender

Female

Minimum Frequency

10 MHz

Maximum Frequency

40 GHz

Maximum VSWR

1.45:1

Maximum Voltage

200 Volts

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (06/2024) Substance(s) Present Above Threshold

TSCA status

Not Available

ECCN

EAR99
