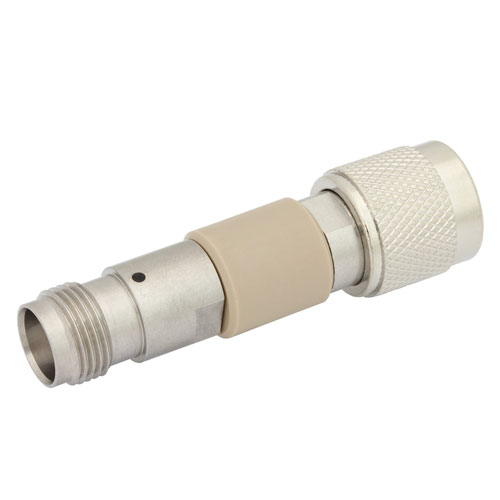

Inner and Outer DC Block From 10 MHz to 18 GHz With TNC Connectors

Inner and Outer DC Block From 10 MHz to 18 GHz With TNC Connectors

Coaxial DC block SD3472 is only one of a large number of radio frequency DC blocking components specifically stocked to be ready for quick shipment. Fairview Microwave RF DC block is manufactured with...

Coaxial DC block SD3472 is only one of a large number of radio frequency DC blocking components specifically stocked to be ready for quick shipment. Fairview Microwave RF DC block is manufactured with a TNC connector in and TNC connector out. Our TNC to TNC DC block is male to female genders in and out.Fairview Microwave TNC DC block has a 50 Ohm impedance and an inner/outer design. Our 50 Ohm TNC inner/outer DC block is rated for a minimum frequency of 10 MHz and a maximum frequency of 18 GHz. SD3472 TNC inner/outer DC block has a maximum insertion loss of 0 dB and a maximum VSWR of 1.35:1.Inner/outer DC block specs for this Fairview direct current blocking component can be found on its DC block datasheet PDF specifications above. Inner/outer TNC DC block is one radio frequency component of more than one million microwave and millimeter wave RF parts in stock at Fairview and is ready to buy and can be shipped worldwide. Fairview also maintains a wide selection of other radio frequency DC blocks that ship same-day from our warehouse in the as with the rest of our other RF/microwave and millimeter wave components.

Expand

SKU SD3472 SD3472 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Product available until inventory is depleted

This product has been discontinued and has availability until the inventory is depleted. Please contact our customer service team for assistance in identifying the appropriate replacement part for your application.

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Block Type

Inner/Outer

Impedance

50 Ohm

Connector In Series

TNC

Connector In Gender

Male

Connector Out Series

TNC

Connector Out Gender

Female

Minimum Frequency

10 MHz

Maximum Frequency

18 GHz

Maximum VSWR

1.35:1

Maximum Voltage

200 Volts

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (06/2024) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
