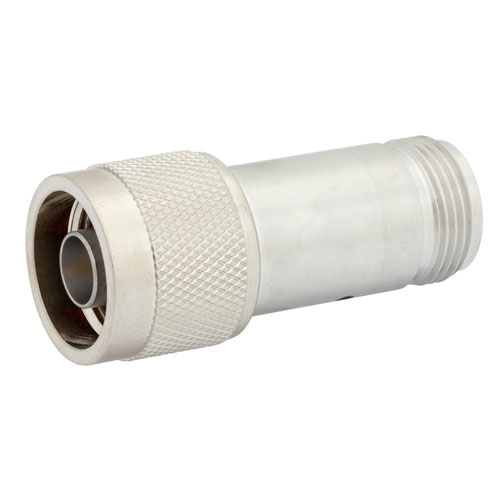

Inner DC Block From 10 MHz to 18 GHz With N Connectors

Inner DC Block From 10 MHz to 18 GHz With N Connectors

Coaxial DC block SD3464 is only one of a large number of radio frequency DC blocking components specifically stocked to be ready for quick shipment. Fairview Microwave RF DC block is manufactured with...

Coaxial DC block SD3464 is only one of a large number of radio frequency DC blocking components specifically stocked to be ready for quick shipment. Fairview Microwave RF DC block is manufactured with a N connector in and N connector out. Our N to N DC block is male to female genders in and out.Fairview Microwave N DC block has a 50 Ohm impedance and an inner design. Our 50 Ohm N inner DC block is rated for a minimum frequency of 10 MHz and a maximum frequency of 18 GHz. SD3464 N inner DC block has a maximum insertion loss of 0.6 dB and a maximum VSWR of 1.35:1.Inner DC block specs for this Fairview direct current blocking component can be found on its DC block datasheet PDF specifications above. Inner N DC block is one radio frequency component of more than one million microwave and millimeter wave RF parts in stock at Fairview and is ready to buy and can be shipped worldwide. Fairview also maintains a wide selection of other radio frequency DC blocks that ship same-day from our warehouse in the as with the rest of our other RF/microwave and millimeter wave components.

Expand

SKU SD3464 SD3464 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Block Type

Inner

Impedance

50 Ohm

Connector In Series

N

Connector In Gender

Male

Connector Out Series

N

Connector Out Gender

Female

Minimum Frequency

10 MHz

Maximum Frequency

18 GHz

Maximum VSWR

1.35:1

Maximum Voltage

200 Volts

Product compliance

RoHS status

Substance(s) Present Above Threshold

REACH status

SVHC (06/2024) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
